Remove/Install Throttle Valve Positioner - Ar09.41-D-1321WE
ENGINES 651.955/956/957 in MODEL 906
| Remove/install | - | - | |
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |
| 2 | Drain coolant | - | AR20.00-D-1140SD |
| 3 | Remove vacuum reservoir | On engine 651.955/957 | AR07.09-D-0001WE |
| 4 | Remove exhaust gas recirculation cooler | - | AR14.20-D-7665WE |
| 5 | Remove charge air manifold | - | AR09.41-D-8681WE |

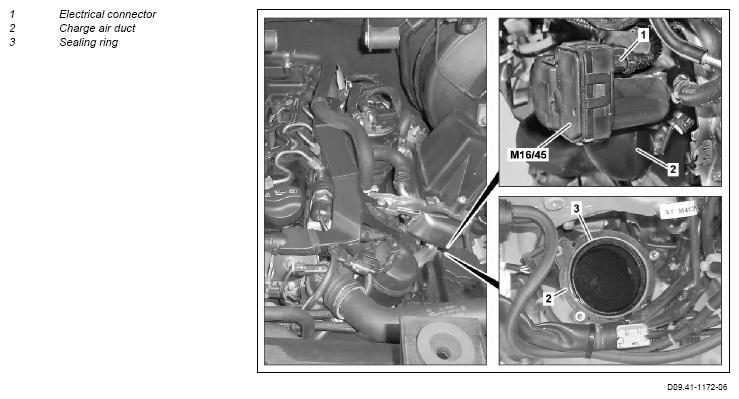

| 6 | Disconnect electrical connector (1) | - | - |
| 7 | Remove throttle valve positioner (M16/45) from charge air duct (2) | - | |
| 8 | Install in the reverse order | - | - |
| 9 | Connect Star Diagnosis, read out fault memory and delete if necessary and teach in throttle valve positioner (M16/45) | When replacing throttle valve actuator (M16/45). | AD00.00-D-2000-04SD |
| 10 | Risk of accident
caused by vehicle starting off by itself when engine is running. Risk of injury
caused by contusions and burns during starting procedure or when working near the engine as it is running Perform an engine test run and check charge air system in the area of the throttle valve positioner (M16/45) for leaks |
Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
