Remove/Install Charge Air Manifold - Ar09.41-D-1310WE

Engine 651.955/956/957 in model 906

Courtesy of MERCEDES-BENZ USA

Shown on model 906 without CODE MP5 (Model version Euro 5)

Shown on model 906 without CODE MP5

(Model version Euro 5)

Courtesy of MERCEDES-BENZ USA

	Remove	-	-
1	Remove high-pressure line (6)	-	AR07.03-D-7000WE
2	Remove connection fitting for coolant hoses	-	AR20.20-D-7470WE
3	Remove exhaust gas recirculation valve	Engine 651.955/956/957 in model 906 except code MS3 (Engine version EURO 3)	AR14.20-D-7662WE

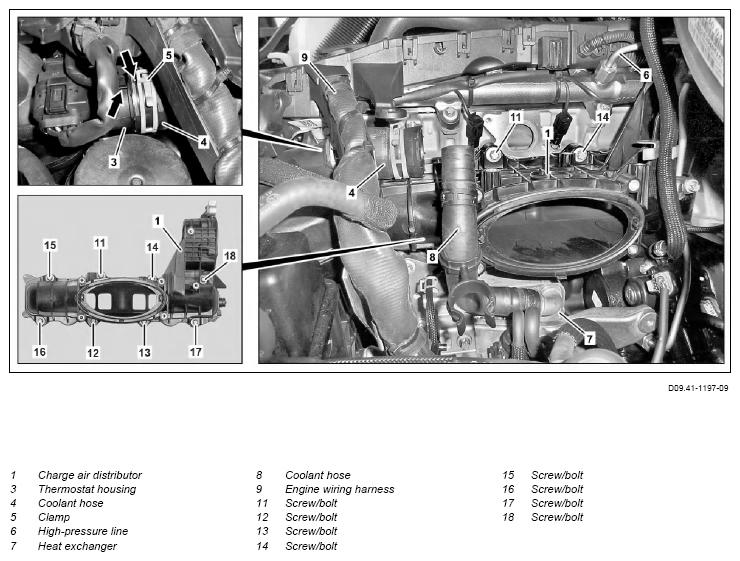

4	Remove coolant hose (8) on heat exchanger (7)	Hose clamp pliers	Fig 2
5	Detach coolant hose (4) on thermostat housing (3)	Press engine wiring harness (9) to the side. Hose clamp pliers	Fig 2
6	Disconnect electrical connection from intake port shutoff actuator motor	Engine 651.955/957 in model 906 with code MP5 (Engine version Euro 5)	AR09.20-D-1313WE

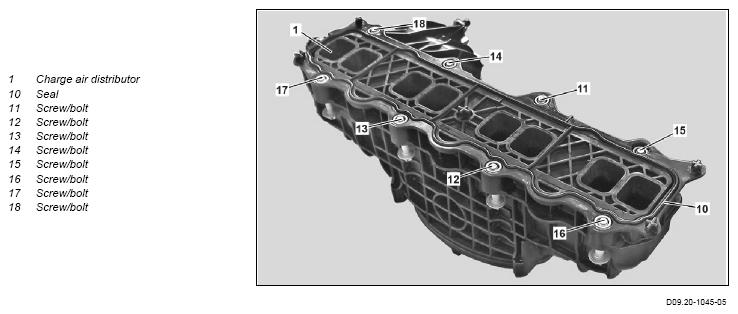

7	Remove screws/bolts (11 to 18)	The screw/bolts (11 to 18) remain on the charge air distributor (1). Set of flexible head wrenches	Figure
8	Remove the charge air distributor (1)	-	-
	Install	-	-
9	Clean sealing surfaces on charge air distributor (1)	-	-
10	Replace seal (10)	-	-
11	Clean thread of the screw/bolts (11 to 18) on the cylinder head	The thread of the screw/bolts (11 to 18) on the cylinder head must be cleaned. Leaks can occur on the charge air distributor (1) otherwise.	-
12	Clean the screw/bolts (11 to 18) on the charge air distributor (1)	When reusing the charge air distributor (1). The screw/bolts (11 to 18) on the charge air distributor (1) must be cleaned. Leaks can occur on the charge air distributor (1) otherwise.	-
13	Insert the charge air distributor (1)	-	-
14	Screw in screw/bolts (11 to 18)	Observe tightening sequence. Tighten screw/bolts (11 to 18) in the numerical sequence. Bolt, charge air distributor to cylinder head Set of flexible head wrenches	*BA09.41-N-1011-01M  Figure
15	Connect electrical connection to intake port shutoff actuator motor	Engine 651.955/957 in model 906 with code MP5 (Engine version Euro 5)	AR09.20-D-1313WE
16	Check clamp (5) and coolant hose (4)	For damage ↓  Replace clamp (5) or coolant hose (4)	-
17	Mount coolant hose (4) on thermostat housing (3)	The marking on the coolant hose (4) and on the thermostat housing (3) (arrows) must coincide. Position clamp (5) between markings on the coolant hose (4). Hose clamp pliers	Fig 2
18	Check clamp on coolant hose (8) and coolant hose (8)	For damage ↓ Replace clamp on coolant hose (8) or coolant hose (8)	-
19	Mount coolant hose (8) on heat exchanger (7)	Position clamp between the markings on the coolant hose (8). Hose clamp pliers	Fig 2
20	Install exhaust gas recirculation valve	Engine 651.955/956/957 in model 906 except code MS3 (Engine version EURO 3)	AR14.20-D-7662WE
21	Install connection fitting for coolant hoses	-	AR20.20-D-7470WE
22	Install high-pressure line (6)	-	AR07.03-D-7000WE
	Check	-	-
23	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check engine or fuel system around the charge air distributor (1) for leak tightness	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

Fig 1: Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
