Remove/Install Intake Port Shutoff Actuator Motor - Ar09.20-D-1313WE
ENGINES 651.955/957 in MODEL 906 with CODE (MP5) Engine version Euro 5
| Remove/install | - | - | |
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |

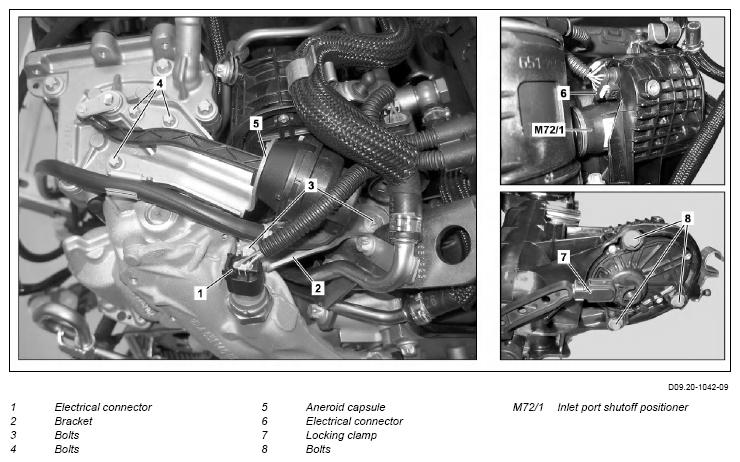

| 2 | Unfasten fuel filter and place to one side with the lines connected | - | - |
| 3 | Disconnect electrical connector (6) | - | - |
| 4 | Disconnect electrical connector (1) | - | - |
| 5 | Remove bolts (4) and swivel aneroid capsule (5) to one side | *BA14.20-N-1014-01H | |
| 6 | Undo bolts (3) and remove bracket (2) | *BA09.41-N-1018-01M | |
| 7 | Unlock locking clamp (7) and remove to the rear | - | |
| 8 | Remove screws/bolts (8) and intake port shutoff positioner (M72/1) | - | - |
| 9 | Install in the reverse order | - | - |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA09.41-N-1018-01M | Bolt, charge air manifold to bracket | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA14.20-N-1014-01H | Attachment of bolts, bypass valve vacuum unit holder to bypass valve | Nm | 12 |
