Remove/Install Charge Air Cooler - Ar09.41-D-6817WE
Engine 651.955/956/957 in model 906

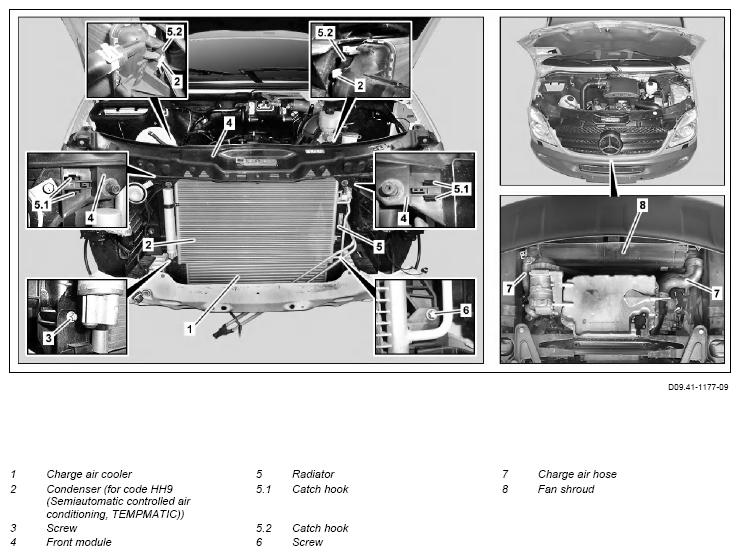

Shown on vehicle with CODE HH9 (semiautomatic controlled air conditioning, (TEMPMATIC))
| Remove/install | - | - | |
| 1 | Remove fan shroud (8) | Engine 651 in model 906 with code XM0 (facelift) Engine 651.955/956/957 in model 906 except code XM0 (Facelift) except code XM5 (Facelift Latin America) |
AR20.40-D-6800M AR20.40-D-6800WE |
| 2 | Remove charge air hoses (7) from charge air cooler (1) | AR09.41-D-1311-01WE | |
| 3 | Remove screen from beneath the radiator grille | Engine 651.955/956/957 in model 906 except code XM0 (Facelift) except code XM5 (Facelift Latin America) except code ZX8 (Dodge execution) except code ZX9 (Freightliner execution) |
AR88.00-D-2200SD |
| 4 | Remove radiator trim | Engine 651.955/956/957 in model 906 with code ZX8 (Dodge execution) except code XM0 (Facelift) except code XM5 (Facelift Latin America) Engine 651.955/956/957 in model 906 with code ZX9 (Freightliner execution) except code XM0 (Facelift) except code XM5 (Facelift Latin America) |
AR88.00-D-2115SE |
| 5 | Remove additional fan unit | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) | AR83.30-D-5610SD |
| 6 | Unscrew screw/bolt (3) | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) | - |
| 7 | Remove bolt (6) | - | - |
| 8 | Disengage catch hooks (5.1) from front module (4) and press cooler (5) with capacitor (2) in direction of engine | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) Push cooler (5) with condenser (2) carefully in the direction of the engine. Damage could occur on the cooler (5) and on hoses and lines otherwise. |
- |
| 9 | Press catch hooks (5.2) and move capacitor (2) out of cooler mount (5) | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) | - |
| 10 | Lift capacitor (2) and unscrew bolt (3) | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) |
Figure |
| 11 | Remove charge air cooler (1) downwards | - | - |
| 12 | Install in the reverse order | - | - |
