Remove/install front axle brake caliper - AR42.10-P-0070NKB

MODEL 117, 156, 176, 242, 246

Shown on model 176.052

Fig 1: Front Axle Brake Caliper Remove/Install Components - Shown On Model 176.052

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 246

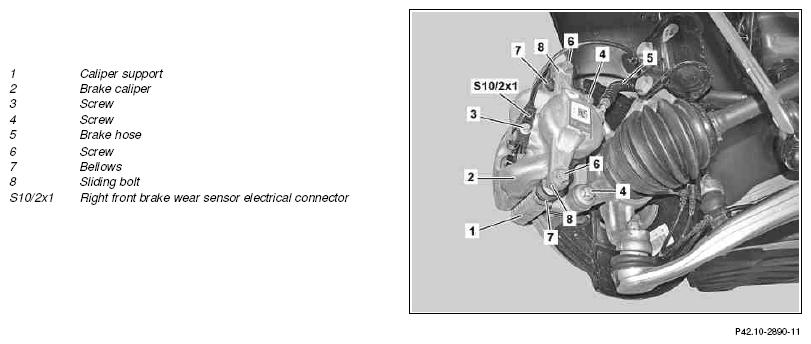

Fig 2: Front Axle Brake Caliper Remove/Install Components - Shown On Model 246 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

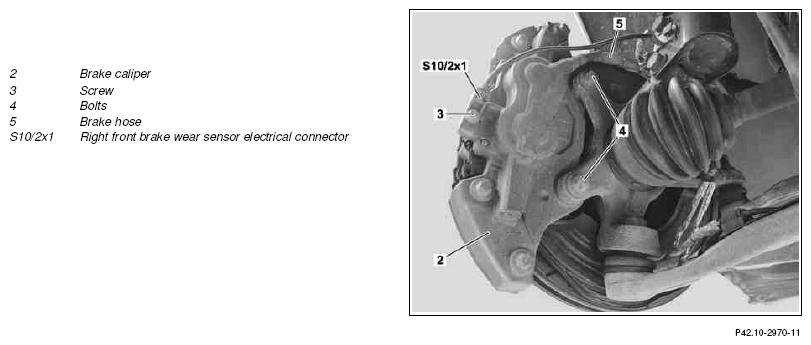

Fig 3: Front Axle Brake Caliper Remove/Install Components - Shown On Model 246 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove/install
1	Remove brake pads	MODEL 117, 156 (except 156.952), 176 (except 176.052), 242, 246	AR42.10-P-1600NKB
		MODEL 156.952, 176.052	AR42.10-P-1600MTA
2	Disconnect right front brake wear sensor electrical connector (S10/2x1), remove screw (3) and detach right front brake wear sensor electrical connector (S10/2x1) from brake caliper (2)	When removing the brake caliper (2) on the right side of the vehicle.
		Screw/bolt, brake wear connector to brake caliper	*BA42.10-P-1004-10N
3	Remove brake hose (5)	When replacing the brake caliper (2).
			AR42.10-P-0013NKB
		Seal connections immediately. Otherwise damage can be caused by escaping brake fluid.
		Brake hose to fixed or floating caliper on front axle	*BA42.10-P-1002-04L
		Retaining screw, brake line to brake hose	*BA42.10-P-1001-04L
		Record plug	Figure
4	Remove upper bolt (6) and remove brake caliper (2)	MODEL 117 (except 117.352), 156 (except 156.952), 176, 242, 246 Do not kink the brake hose (5) or subject it to tensile loads. To relieve the load on the brake hose (5), fasten the brake caliper (2) to the vehicle free of tension. Otherwise the brake hose (5) will be damaged.
5.1	Unscrew bolts (4) and remove brake caliper support (1)	MODEL 117 (except 117.352), 156 (except 156.952), 176, 242, 246
		Screw/bolt, brake caliper to steering knuckle	*BA42.10-P-1002-10N
5.2	Remove bolts (4) and remove brake caliper (2)	MODEL 117.352, 156.952 Do not kink the brake hose (5) or subject it to tensile loads. To relieve the load on the brake hose (5), fasten the brake caliper (2) to the vehicle free of tension. Otherwise the brake hose (5) will be damaged.
		Screw/bolt, brake caliper to steering knuckle	*BA42.10-P-1002-10N
	Measure
6	Check condition of brake pads and gauge degree of wear
		MODEL 117	AP42.10-P-4252AH
		MODEL 156	AP42.10-P-4252GLA
		MODEL 242	AP42.10-P-4252NKG
		MODEL 246	AP42.10-P-4252NK
		MODEL 176 If there is damage or wear: ↓ Install new brake pads	AP42.10-P-4252KN
7	Check brake disks for condition and measure wear
			AP42.10-P-4258NK
		If there is damage or wear: ↓ Replace brake disks
			AR42.10-P-0220NKB
8	Check brake caliper (2) and dust boot (11) on brake piston for damage	Replace brake caliper (2) if damaged.
9	Check boots (7) for damage and correct seating as well as sliding bolts (8) for ease of movement	Replace brake caliper support (1) if damaged.
10	Press back brake piston using pusher tool (01)	If brake piston is sluggish replace the brake caliper (2).
		Resetting device	Fig 4
	Clean
11	Clean contact surfaces of the brake pads on brake caliper (2) and brake caliper support (1) using a rag	In the process do not damage the dust boot (11) on the brake piston. Do not use sharp-edged or pointed objects. Otherwise the brake caliper (2) or the brake caliper support (1) can be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
12	Install in the reverse order
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
13	Press the brake pedal several times until the brake pads contact the brake disks	Firm resistance should be noticeable at the brake pedal.
14	Check fluid level in brake fluid reservoir, and correct if necessary
	General brake fluid		DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
	Brake fluids (DOT 4 plus)		MB 331.0 brake fluid A 000 989 08 07
15	Carry out brake test on the test stand
			AP42.00-P-4290BA

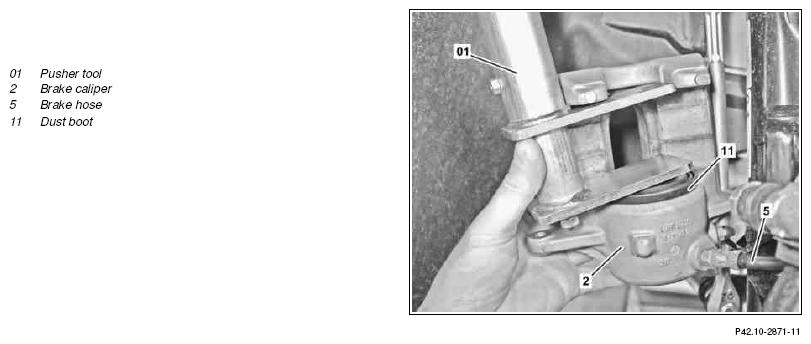

Fig 4: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
