Remove/check/install front axle brake pads - AR42.10-P-1600NKB

MODEL 117, 156 (except 156.952), 176 (except 176.052), 242, 246

Shown on MODEL 246

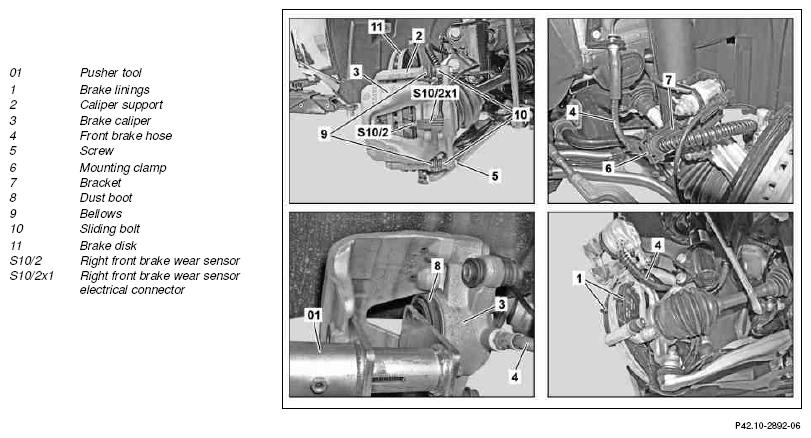

Fig 1: Front Axle Brake Pads Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove/install
1	Clean area around cap on expansion reservoir for brake fluid
2	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	In order to prevent the expansion reservoir overflowing when pressing back the brake pistons.
3	Remove front wheel-and-tire assemblies
			AP40.10-P-4050AK
4	Disconnect right front brake wear sensor (S10/2) from right front brake wear sensor electrical connector (S10/2x1)	When removing brake linings (1) on right side of vehicle.
5	Unscrew lower bolt (5) from sliding bolt (10)	Counterhold sliding bolt (10).
		Screw/bolt, brake caliper to guide pin	*BA42.10-P-1003-10N
6	Open mounting clips (6) and remove front brake hose (4) from bracket (7)
7	Fold brake caliper (3) upwards	Do not tension or kink front brake hose (4). The front brake hose (4) will otherwise be damaged. Secure brake caliper (3) against falling down. Do not detach front brake hose (4). Guide the right front brake wear sensor (S10/2) through the opening of the right brake caliper (3).
8	Remove brake linings (1) from brake caliper support (2)	Only complete sets of brake linings (1) approved by Mercedes-Benz may be installed. Do not apply brake pastes or lubricants to the brake linings (1) and brake calipers (3)!
9	Pull right front brake lining wear sensor (S10/2) out of brake lining (1)	When replacing the brake linings (1) on the right-hand-side of vehicle. Replace the defective right front brake wear sensor (S10/2).
	Measure
10	Check condition of brake linings (1) and measure degree of wear
			AP42.10-P-4253A
		If necessary, replace brake linings (1).
11	Check condition of brake disk (11) and gauge degree of wear	If necessary: ↓ Replace brake disk (11)
			AR42.10-P-0220NKB
12	Check brake caliper (3) and dust boot (8) on brake piston for damage	If damage is present: ↓ Replace brake calipers (3) on front axle
			AR42.10-P-0070NKB
13	Check boots (9) for damage and correct seating as well as sliding bolts (10) for ease of movement	If damage is present: ↓ Replace brake caliper support (2) on front axle
			AR42.10-P-0070NKB
14	Press back brake piston using pusher tool (01)	Resetting device If the brake piston is difficult to move: ↓ Replace brake calipers (3) on front axle	Figure
			AR42.10-P-0070NKB
	Clean
15	Clean contact surfaces of brake linings (1) on brake caliper (3) and brake caliper support (2) using rags	In the process do not damage the dust boot (8) on the brake piston. Do not use sharp-edged or pointed objects. Otherwise the brake caliper (3) or the brake caliper support (2) can be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
16	Install in the reverse order
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
17	Depress brake pedal several times until brake linings (1) rest against brake disks (11)	Firm resistance should be noticeable at the brake pedal.
18	Check fluid level in brake fluid reservoir, and correct if necessary
			AP42.10-P-4210AK
19	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 2: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA
