Remove/install brake disc - AR42.10-P-0220NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246

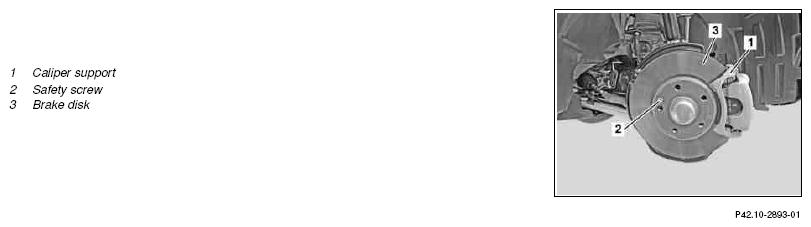

Fig 1: Brake Disc Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove brake caliper or brake caliper support (1)	Front axle	AR42.10-P-0070NKB
		Rear axle Move the brake caliper out of the working area with the brake hose still connected and secure to prevent it from falling down. MODEL 117.352/952, 156.952, 176.052 The brake caliper support (1) is not removed on the rear axle.	AR42.10-P-0080NKB
2	Remove locking bolt (2) and remove brake disk (3)	Locking bolt of front axle brake disk	*BA42.10-P-1002-06A
		Locking bolt of rear axle brake disk	*BA42.10-P-1001-06A
3	Clean contact surface and interference fit of brake disk (3)
4	Lightly grease interference fit of brake disk (3)	Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
5	Install in the reverse order
