Remove/install oil pan - AR01.45-P-7500SMG

ENGINE 156 in MODEL 216, 221

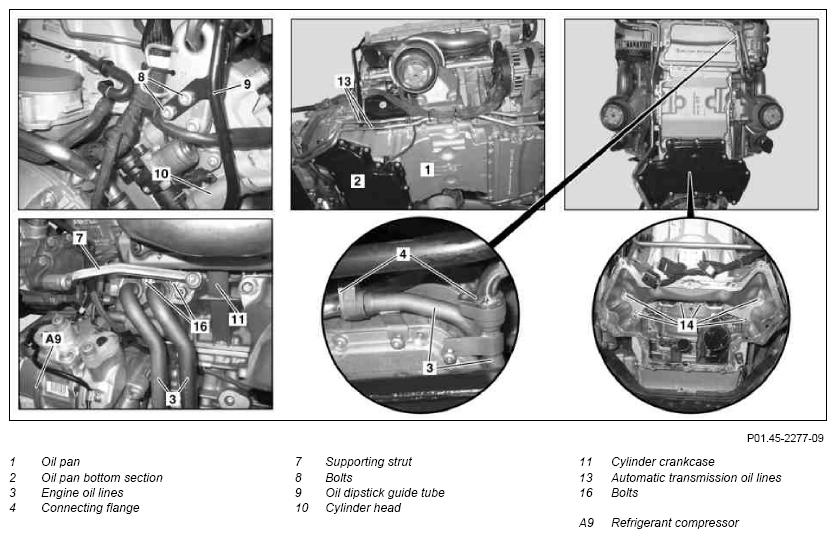

Fig 1: Identifying Oil Pan Remove/Install Components (1 Of 2)
G10126266Courtesy of MERCEDES-BENZ USA

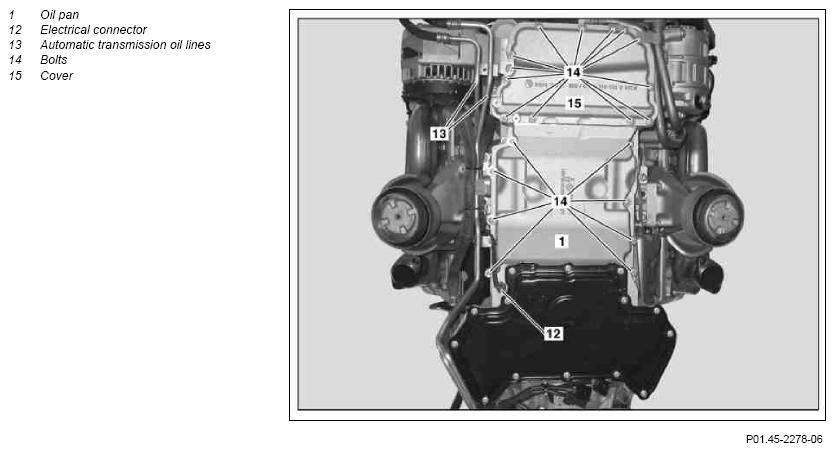

Fig 2: Identifying Oil Pan Remove/Install Components (2 Of 2)
G10126267Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
DANGER Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid Depressurize hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
1 Deactivate easy entry/exit function for driver seat and steering wheel Vehicles with memory package (driver seat, steering column, mirrors) code 275
NOTES When easy entry/exit for the driver seat and steering wheel is activated, the seat will move into the memory position when the ignition is switched on or the driver door is opened and closed; thus the top frame can be damaged when the holding device is installed.

2 Turn front wheels to straight-ahead position and secure steering wheel in place with a holding device NOTES The steering wheel must not be turned when the steering coupling is detached, otherwise the clock spring contact will be destroyed.
SPECIAL TOOL Figure
3 Remove engine intake air duct
4 Partially remove poly-V belt IMPORTANT Only remove poly-V belt from belt pulley of refrigerant compressor (A9). AR13.20-P-0001SX
5 Only unscrew bolts (8) on bracket for oil dipstick guide tube (9) on back of cylinder head (10)   AR18.40-P-3510SMG
6 Mount engine hoist   AR33.10-P-0105SX
7 Lift engine a little
8 Remove bottom engine compartment paneling INSTALLATION IMPORTANT Only install lower engine compartment paneling after engine test run and leak test. AR61.20-P-1105SX
9 Remove oil pan bottom section (2)   AR01.45-P-7555SMG
10 Loosen engine mounts on front axle carrier   AR22.10-P-1260SX
11 Detach both holders from high pressure expansion hose on steering gear
12 Detach refrigerant compressor (A9) and put it on the side with connected lines IMPORTANT Push refrigerant compressor (A9) until the bolts of the supporting strut (7) are accessible. AR83.55-P-5300SMG
13 Remove supporting strut (7) for power steering pump TORQUE SPECIFICATION *BA46.30-P-1004-01O
TORQUE SPECIFICATION *BA46.30-P-1005-01O
14 Disconnect engine oil lines (3) at connecting flange (4) IMPORTANT Seal engine oil lines (3).
INSTALLATION IMPORTANT Replace sealing rings.

15 Detach engine oil lines (3) at crankcase (11) INSTALLATION IMPORTANT Replace sealing rings.
TORQUE SPECIFICATION *BA03.20-P-1006-01J
TORQUE SPECIFICATION *BA01.45-P-1005-01R
TORQUE SPECIFICATION Fig 4
16 Detach spring struts on spring control arm NOTES When working on the front axle, ensure that surfaces of all aluminum parts do not suffer any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. AR32.25-P-1017SY
17 Lower front axle carrier   AR33.10-P-0001SX
18 Disconnect electrical connector (12) at the oil sensor
19 Detach oil lines of automatic transmission (13) at oil pan (1) IMPORTANT Loosen clamp and rotate top section by 90°.
TORQUE SPECIFICATION *BA01.45-P-1005-01R
20 Remove bolts (14) on oil pan (1) IMPORTANT Pry off front cover (15) by turning a bolt on the oil pan (1). The 5 bolts located below must also be removed.
TORQUE SPECIFICATION *BA01.45-P-1002-01R
TORQUE SPECIFICATION *BA01.45-P-1006-01R
TORQUE SPECIFICATION *BA01.45-P-1007-01R
21 Pry off oil pan (1) from crankcase (11) and remove NOTES Pry off oil pan (1) by turning a bolt on the crankcase (11) and loosen with an assembly wedge. Do not manage the sealing surfaces of the oil pan (1) and crankcase (11).
IMPORTANT If oil pan (1) cannot be detached from the crankcase (11), heat up the sealing surfaces of the oil pan (1) using a hot air gun.
INSTALLATION IMPORTANT Replace sealing ring on oil dipstick guide tube (9). Check for correct seating of sealing ring on the oil dipstick guide tube (9) in the (1) oil pan.

SPECIAL TOOL Fig 5
IMPORTANT Notes on sealant path for oil pan AH01.45-P-0001-01AMG
SPECIAL TOOL Figure
Loctite sealant 5970 *BR00.45-Z-1013-01A
CLEAN Clean
22 Clean sealing surfaces on oil pan (1) and cylinder crankcase (11) NOTES Do not use any sharp-edged tools or abrasive paper as this can damage the sealing surfaces. AR01.00-P-0050-01A
Loctite 7200 *BR00.45-Z-1038-04A
Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
23 Install in the reverse order
INSPECT Checking
24 Check engine oil level; correct if necessary
REFER TO MAINTENANCE Engine oil and filter change AP18.00-P-0101SX
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
25 Conduct engine test run and check engine for leaks whilst it is running
OIL PAN

Number Designation Engine 156
BA01.45-P-1002-01R Oil pan top section on crankcase M6 Nm 8.4
BA01.45-P-1005-01R Bracket, oil lines to oil pan M6 Nm 5
BA01.45-P-1006-01R Oil line return to oil pan M6 Nm 8.4
BA01.45-P-1007-01R Oil line feed line to oil pan M6 Nm 8.4
POWER STEERING PUMP

Number Designation Engine 156 in model 216, 221
BA46.30-P-1004-01O Bolt, support holder to cylinder crankcase M8X35 Nm 30
BA46.30-P-1005-01O Bolt, support holder to power steering pump M8X35 Nm 30
CRANKSHAFT BEARING CAP

Number Designation Engine 156
BA03.20-P-1006-01J Oil line (oil radiator) with bracket M8 Nm 20
Fig 3: Identifying Holding Device (129 589 01 21 00)
G07279187Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Set Of Stop Plugs (129 589 00 91 00)
G07742724Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Squeeze Gun (112 589 00 25 00)
G07742708Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite sealant 5970 A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
