Notes on sealant path for oil pan - AH01.45-P-0001-01AMG

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156.982 in MODEL 209.377/477

ENGINE 156.983 in MODEL 211.077/277, 219.377

ENGINE 156.984 in MODEL 216, 221

ENGINE 156.980 in MODEL 164.177, 251.0/1

Sealant application on oil pan top section for engine with front sump

The line (1) identifies the sealant path.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant indicated in repair materials.

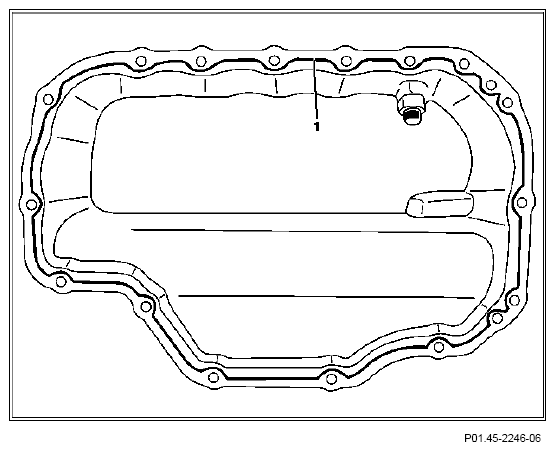

Fig 1: Identifying Oil Pan Top Section Sealant Applying Area

Courtesy of MERCEDES-BENZ USA

Application of sealant to oil pan bottom section for engine with front sump

The line (1) identifies the sealant path.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant indicated in repair materials.

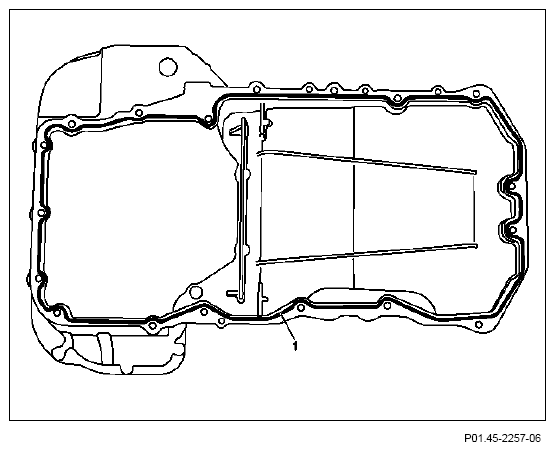

Fig 2: Identifying Oil Pan Bottom Section Sealant Applying Area

Courtesy of MERCEDES-BENZ USA

Sealant application on oil pan top section on engine with rear sump

The line (1) identifies the sealant path.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant indicated in repair materials.

Fig 3: Identifying Oil Pan Top Section Sealant Applying Area On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application to rear oil pan bottom section for engine with rear sump

The line (1) identifies the sealant path.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant indicated in repair materials.

Fig 4: Identifying Oil Pan Bottom Section Sealant Applying Area On Engine

Courtesy of MERCEDES-BENZ USA

Sealant application to front oil pan bottom section for engine with rear sump

The line (1) identifies the sealant path.

The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead of height and width 2.0 mm (±0.5 mm).

The sealing compound must be applied within 10 min.

The sealant bead must not be spread. Use only the sealant indicated in repair materials.

Fig 5: Identifying Front Oil Pan Bottom Section Sealant Applying Area

Courtesy of MERCEDES-BENZ USA
