Remove/install oil pump - AR18.10-P-6020MM
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221
| Remove/install | |||

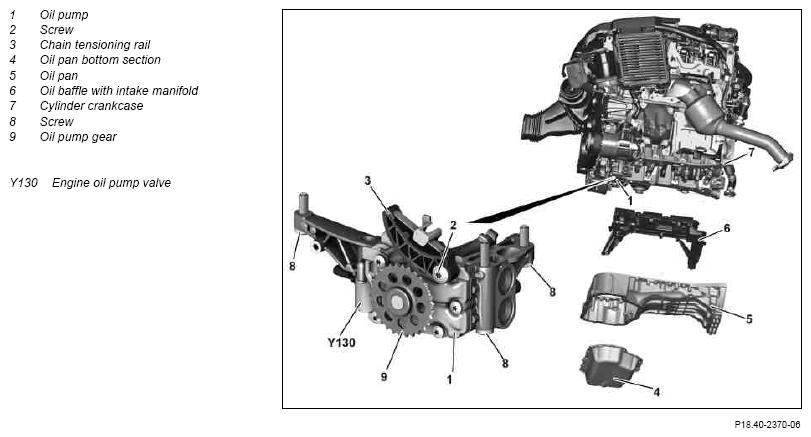

| 1 | Remove oil pan bottom section (4) and oil pan (5) | ||
| Engine 276 | AR01.45-P-7500MMA | ||
| Engines 157, 278 | AR01.45-P-7500MMB | ||
| Notes on sealant path for oil pan | Engines 157, 278 | AH01.45-P-0001-01MMB | |
| Engine 276 | AH01.45-P-0001-01MMA | ||
| Remove sealant | AR01.00-P-0050-01A | ||
| Fig 2 | |||
| *BA01.45-P-1001-01E | |||
| *BA01.45-P-1002-01E | |||
| *BA01.45-P-1003-01E | |||
| Loctite 5970 sealant | *BR00.45-Z-1013-01A | ||
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 cleaning spray (150 ml) | *BR00.45-Z-1046-04A | ||
| 2 | Detach oil baffle (6) with intake manifold from oil pump (1) and cylinder crankcase (7) | *BA18.10-P-1005-01R | |
| 3 | Remove oil pump (1) from crankcase by unscrewing bolts (8) | *BA18.10-P-1001-01R | |
| 4 | Disconnect electrical connector from engine oil pump valve (Y130) | ||
| 5 | Push back chain tensioning rail (3), take oil pump chain of the oil pump gear (9) and remove oil pump (1) | ||
| Checking | |||
| 6 | Check oil pump gear (9) for easy movement and damage | Install new oil pump (1) if necessary. | |
| 7 | Check clamping device for the oil pump (1) | If necessary: ↓ | |
| Replace clamping device. | AR18.10-P-2000MM | ||
| 8 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run, checking the engine for proper operation and leaks |
OIL PUMP
| Number | Designation | Engine 157 | Engine 276 | Engine 278 | ||
|---|---|---|---|---|---|---|
| BA18.10-P-1001-01R | Bolt, oil pump to crankcase | Stage 1 | Nm | 5 | 5 | 5 |
| Stage 2 | Nm | 20 | 20 | 20 | ||
| BA18.10-P-1005-01R | Bolt, oil suction pipe with oil baffle to cylinder crankcase | Nm | 9 | 9 | 9 | |
OIL PAN
| Number | Designation | Engine 157 | Engine 276 | Engine 278 | ||
|---|---|---|---|---|---|---|
| BA01.45-P-1001-01E | Bolt, oil pan to cylinder crankcase/timing case cover/rear end cover | M6 | Nm | 9 | 9 | 9 |
| BA01.45-P-1002-01E | Bolt, oil pan to crankcase on the transmission side | M8 | Nm | 20 | 20 | 20 |
| BA01.45-P-1003-01E | Bolt, oil pan bottom section to oil pan | Nm | 14 | 14 | 14 | |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Loctite 5970 sealant | A 003 989 98 20 |
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel Loctite Deutschland GmbH |
| BR00.45-Z-1046-04A | Loctite 7063 cleaning spray (150 ml) | A 001 986 71 71 10 |
