Remove and install Bowden cable for the easy entry feature - AR91.10-P-1480SC
MODEL 216.3
Shown on left front seat
MODIFICATION NOTES
| 3.5.07 | "Disconnect ground line and note on avoiding electrostatic charge" added |
| Removing | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

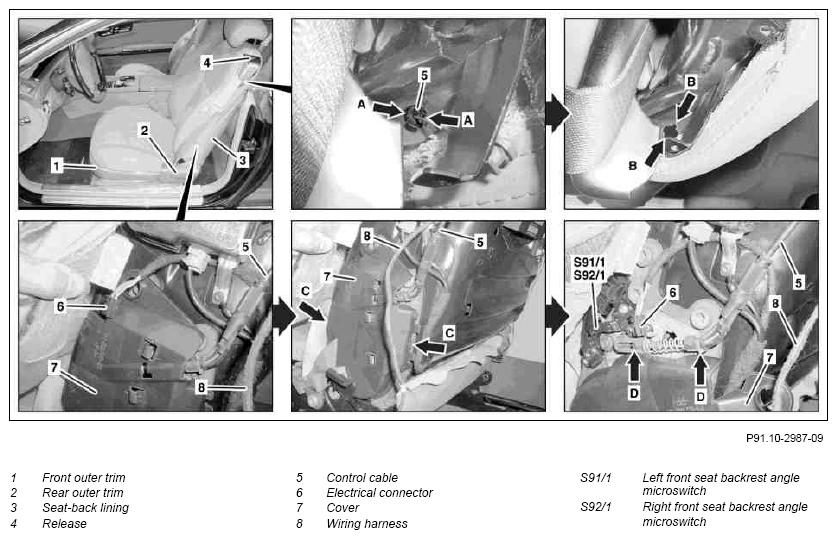

| 1 | Remove outer front paneling (1) and outer rear paneling (2) from left or right front seat | AR91.10-P-1200SC | |
| 2 | Remove seat-back lining (3) | AR91.10-P-1910SC | |
| 3 | Remove release (4) | AR91.10-P-1465SC | |
| 4 | Loosen cover of front seat backrest at outer side and at bottom until cover (7) is exposed | ||
| 5 | Disconnect ground cable | AR54.10-P-0003SX | |
| 6 | Disconnect electrical plug (6) from left front seat backrest angle microswitch (S91/1) or right front seat backrest angle microswitch (S92/1) | ||
| 7 | Expose electric wiring harness (8) in area of cover (7) and in area of Bowden cable (5) | ||
| 8 | Unclip cover (7) (arrows C) and swing toward rear | ||
| 9 | Unclip Bowden cable (5) at bottom (arrows D) | ||
| 10 | Unclip Bowden cable (5) at top (arrows A) | ||
| Install | |||
| 11 | Clip in Bowden cable (5) at top (arrows A) | ||
| 12 | Clip in Bowden cable (5) at bottom (arrows D) | ||
| 13 | Clip in cover (7) | ||
| 14 | Install release (4) | AR91.10-P-1465SC | |
| 15 | Adjust Bowden cable (5) | AR91.10-P-1490SC | |
| 16 | Attach electric wiring harness (8) in the area of cover (7) and in the area of Bowden cable (5) | ||
| 17 | Connect electrical plug (6) to left front seat backrest angle microswitch (S91/1) or right front seat backrest angle microswitch (S92/1) | ||
| 18 | Connect ground cable | AR54.10-P-0003SX | |
| 19 | Attach cover of front seat backrest | ||
| 20 | Install seat-back lining (3) | AR91.10-P-1910SC | |
| 21 | Install outer front paneling (1) and outer rear paneling (2) on left or right front seat | AR91.10-P-1200SC |
