Remove/install front seat backrest seat-back lining - AR91.10-P-1910SC
MODEL 216.3

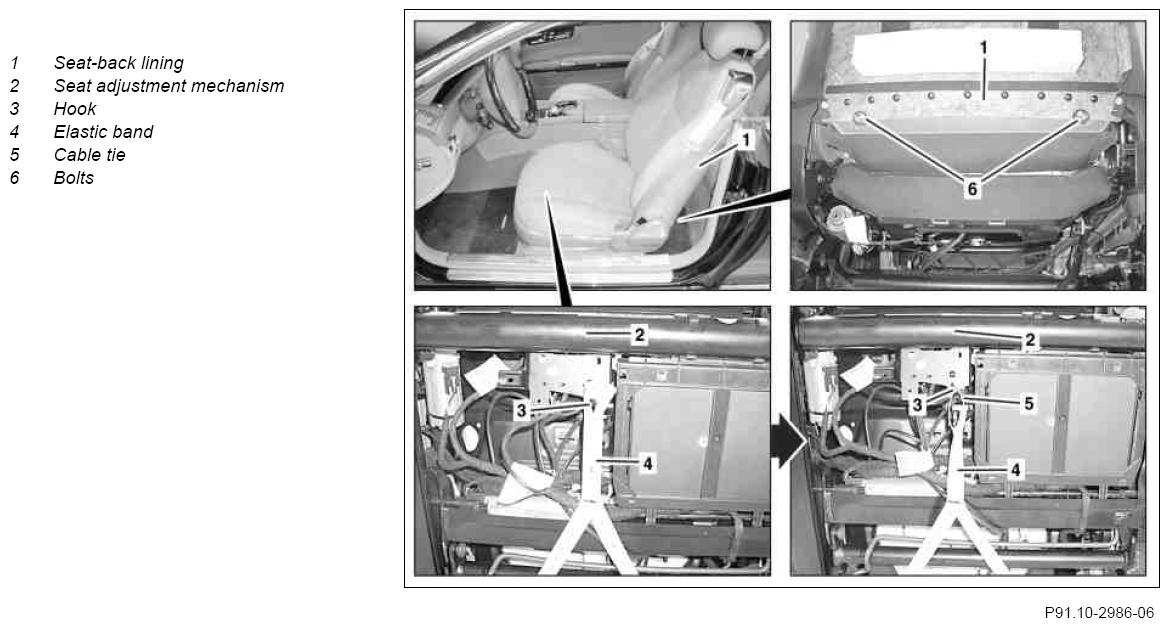

Shown on left front seat
| Removing | ||
| 1 | Move left or right front seat to the center of the longitudinal adjustment range and all the way up | |
| 2 | Unhook elastic band (4) at bottom of seat adjustment mechanism (2) from hook (3) | |
| 3 | Fold lower section of seat-back lining (1) upwards and remove bolts (6) | |
| 4 | Pull seat-back lining (1) down and take off | |
| Install | ||
| 5 | Feed cable tie (5) through third last hole in elastic band (4) and make a loop with a diameter of approx. 3 cm. Next, cut off protruding end of cable tie (5) | |
| 6 | Fit seat-back lining (1) onto front seat backrest | |
| 7 | Tighten bolts (6) | |
| 8 | Fold lower section of seat-back lining (1) downward | |
| 9 | Move front seat backrest into rearmost position | |
| 10 | Feed through rubber band (4) at bottom of seat adjustment mechanism (2) and secure cable tie (5) in hook (3) |
