Remove/install front seat frame trim panels - AR91.10-P-1200SC

MODEL 216.3

Shown on right front seat

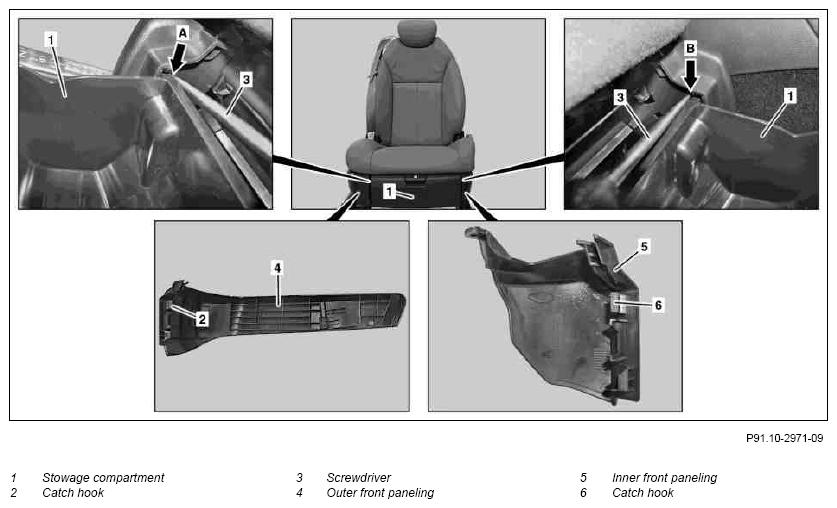

Fig 1: Identifying Front Seat Frame Trim Panels Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on right front seat

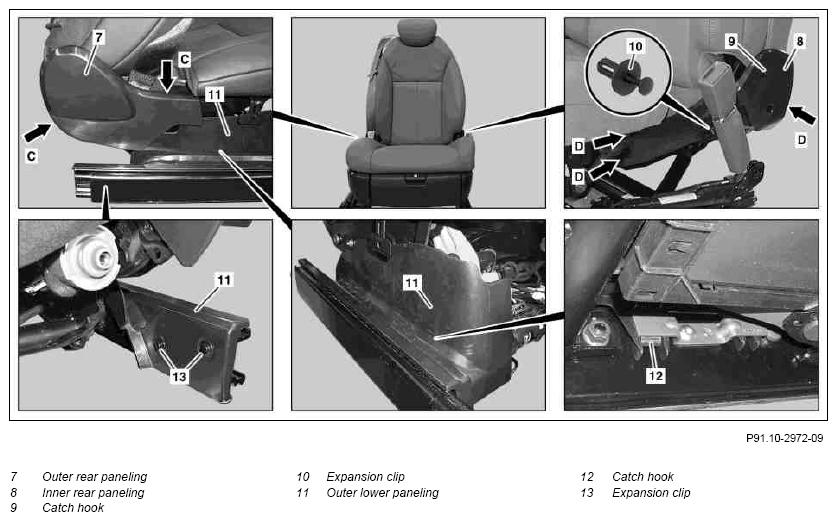

Fig 2: Identifying Front Seat Frame Trim Panels Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move left or right front seat into the center of the longitudinal adjustment range and all the way up
2	Open stowage compartment (1)
3	Press back catch hook (2) using a suitable screwdriver (3) (arrow A) and detach outer front paneling (4) from seat frame toward the front	Installation:  Ensure that the outer front paneling (4) is properly seated in the corresponding support at the seat frame.
4	Press back catch hook (6) using a suitable screwdriver (3) (arrow B) and detach inner front paneling (5) from seat frame toward the front
5	Unclip outer rear paneling (7) (arrows C)
6	Remove expansion clips (13), release catch hook (12) and remove outer lower paneling (11)
7	Remove left or right front seat		AR91.10-P-1000SC
8	Remove expansion clip (10), release catch hook (9) and unclip inner rear paneling (8) (arrows D)
9	Install in the reverse order
