Adjust the Bowden cable for the easy-entry feature - AR91.10-P-1490SC
MODEL 216.3

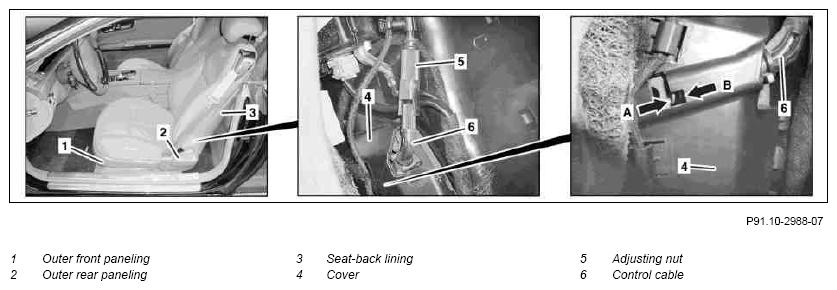

Shown on left front seat
| Removing | ||
| 1 | Remove outer front paneling (1) and outer rear paneling (2) from left or right front seat | AR91.10-P-1200SC |
| 2 | Remove seat-back lining (3) | AR91.10-P-1910SC |
| 3 | Loosen cover of front seat backrest at outer side | |
| Adjust | ||
| 4 | Turn adjusting nut (5) at Bowden cable (6) until tab of spring seat (arrow A) in inspection window of cover (4) is aligned with edge of inspection window (arrow B) | |
| Install | ||
| 5 | Attach cover of front seat backrest | |
| 6 | Install seat-back lining (3) | AR91.10-P-1910SC |
| 7 | Install outer front paneling (1) and outer rear paneling (2) on left or right front seat | AR91.10-P-1200SC |
