Remove/Install Engine Hood - Ar88.40-D-3000SD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A

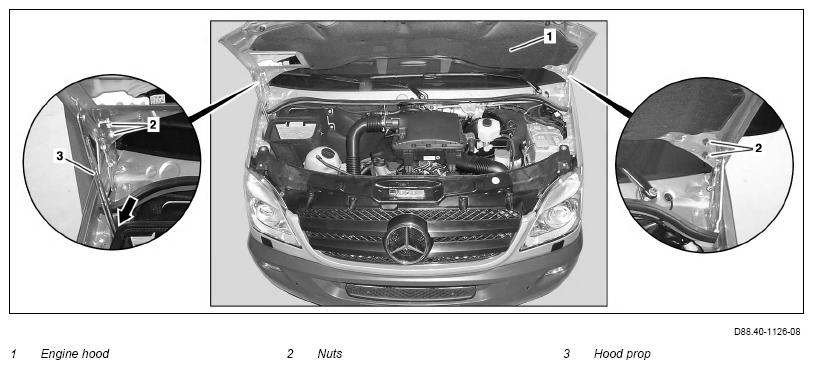

1	Open engine hood (1)
2	Unscrew bolt (arrow) from engine hood prop (3)	Support engine hood (1) Otherwise the engine hood (1) can damaged adjacent components or the engine hood (1) when falling down. Aid of helper required.
2	Unscrew bolt (arrow) from engine hood prop (3)		*BA88.40-N-1008-01A
3	Mark position of hood hinge on engine hood (1).	Check gap and height offset of engine hood (1), adjust if necessary. ↓
3	Mark position of hood hinge on engine hood (1).	Adjust engine hood	AR88.40-D-3020H
4	Unscrew nuts (2) and remove engine hood (1)	Carefully lay down engine hood (1). Otherwise paint damage can occur. Aid of helper required. Repair paint damage on nuts (2) with suitable touch-up paint pen. When replacing engine hood (1) apply cavity wax for preservation after painting: ↓
		Cavity preservation following repair work	AR97.20-D-1500H
			*BA88.40-N-1001-01A
			*BA88.40-N-1005-01A
5	Disassemble engine hood (1)	When replacing engine hood (1). When replacing engine hood (1) install detachable parts after painting:	AR88.40-D-3002H
6	Install in the reverse order

ENGINE HOOD

Number	Designation		Model 906
BA88.40-N-1001-01A	Collar nut, engine hood to hinge	Nm	20
BA88.40-N-1005-01A	Bolt, engine hood catch top section to engine hood	Nm	10
BA88.40-N-1008-01A	Bolt, hood prop to side piece	Nm	8
