Adjust Engine Hood - Ar88.40-D-3020H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

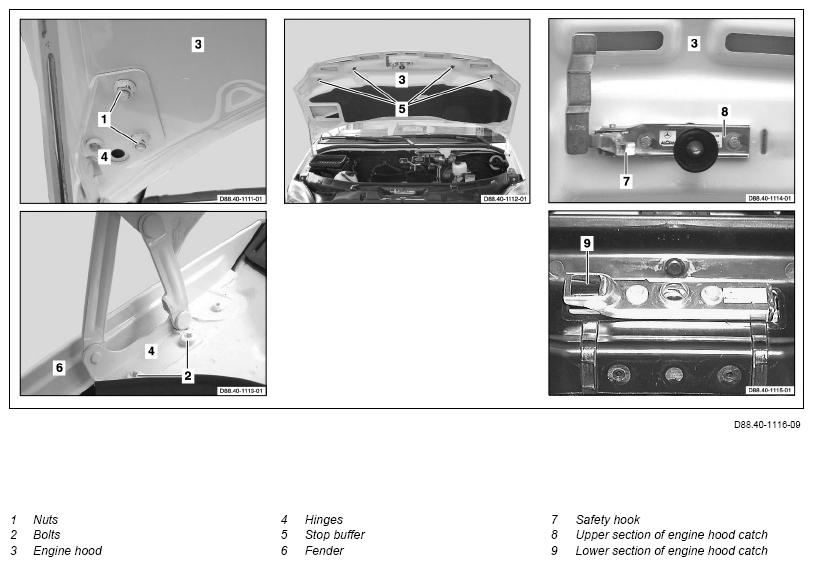

G13474764Courtesy of MERCEDES-BENZ USA
  Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
INSPECT Check
1 Check installation position of engine hood (3)   AR60.00-D-0700-01H
Gap dimension BE60.00-N-1001-01C
SPECIAL TOOL Feeler gauge *129589032100
  Adjust
2 Loosen nuts (1)
3 Loosen bolts (2)
4 Set gap dimensions   AR60.00-D-0700-01H
IMPORTANT Center engine hood (3) between fenders (6).
Gap dimension BE60.00-N-1001-01C
SPECIAL TOOL Feeler gauge *129589032100
5 Tighten bolts (2) TORQUE SPECIFICATION Bolt, engine hood hinge to bodyshell *BA88.40-N-1002-01A
6 Tighten nuts (1) TORQUE SPECIFICATION Collar nut, engine hood to hinge *BA88.40-N-1001-01A
7 Adjust height offset between engine hood (3) and fender (6) by turning stop buffer (5) AR60.00-D-0700-01H
Height offset BE60.00-N-1002-01C
8 Check whether engine hood catches properly, adjust if necessary IMPORTANT Close engine hood (3) and pull upward with a slight jerk. Unlock engine hood (3) and check whether safety hook (7) arrests correctly in engine hood lock bottom section (9).
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 without CODE XM0 (Facelift) MODEL 906 with CODE XM0 (Facelift)
BE60.00-N-1001-01C Gap dimension Engine hood to fender Dimension "A" mm 4, 5 (±0, 5) 4, 5 (±0, 5)
Engine hood to paneling next to headlamp Dimension "B" mm 6, 0 (±0, 5) -
Picture AR60.00-D-0700-01H AR60.00-D-0700-01H
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 except CODE T55 except CODE T56 (Electric sliding door) except CODE XM0 (Facelift) Model 906 except CODE T55 except T56 (Electric sliding door) with CODE XM0 (Facelift)
BE60.00-N-1001-01C Gap dimension Engine hood to fender Dimension "A" mm 4, 5 (±0, 5) 4, 5 (±0, 5)
Engine hood to paneling next to headlamp Dimension "B" mm 6, 0 (±0, 5) -
Picture AR60.00-D-0700-01H AR60.00-D-0700-01H
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 with CODE T55/T56 (Electric sliding door) except code XM0 (Facelift) Model 906 with CODE T55/T56 (Electric sliding door) with CODE XM0 (Facelift)
BE60.00-N-1001-01C Gap dimension Engine hood to fender Dimension "A" mm 4, 5 (±0, 5) 4, 5 (±0, 5)
Engine hood to paneling next to headlamp Dimension "B" mm 6, 0 (±0, 5) -
Picture AR60.00-D-0700-01H AR60.00-D-0700-01H
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 without CODE XM0 (Facelift) MODEL 906 with CODE XM0 (Facelift)
BE60.00-N-1002-01C Height offset Engine hood to fender mm ≤0, 8 ≤0, 8
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 except CODE T55 except CODE T56 (Electric sliding door) except CODE XM0 (Facelift) Model 906 except CODE T55 except T56 (Electric sliding door) with CODE XM0 (Facelift)
BE60.00-N-1002-01C Height offset Engine hood to fender mm ≤0, 8 ≤0, 8
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 906 with CODE T55/T56 (Electric sliding door) except code XM0 (Facelift) Model 906 with CODE T55/T56 (Electric sliding door) with CODE XM0 (Facelift)
BE60.00-N-1002-01C Height offset Engine hood to fender mm ≤0, 8 ≤0, 8
ENGINE HOOD

Number Designation MODEL 906
BA88.40-N-1001-01A Collar nut, engine hood to hinge Nm 20
ENGINE HOOD

Number Designation MODEL 906
BA88.40-N-1002-01A Bolt, engine hood hinge to bodyshell Nm 20
G13474765Courtesy of MERCEDES-BENZ USA
