Cavity Preservation Following Repair Work - Ar97.20-D-1500H

MODEL 906

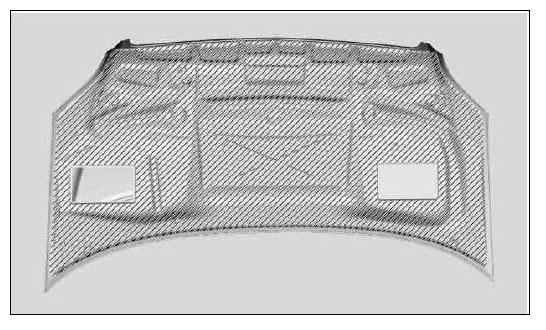

Engine hood

Courtesy of MERCEDES-BENZ USA

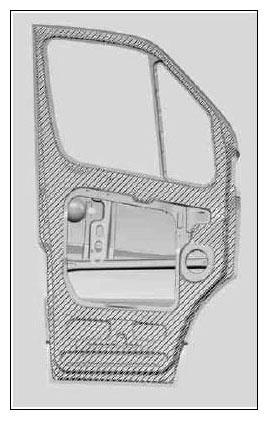

Driver/passenger door

Courtesy of MERCEDES-BENZ USA

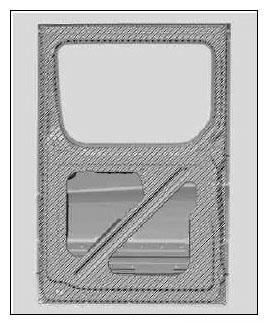

Sliding door

Courtesy of MERCEDES-BENZ USA

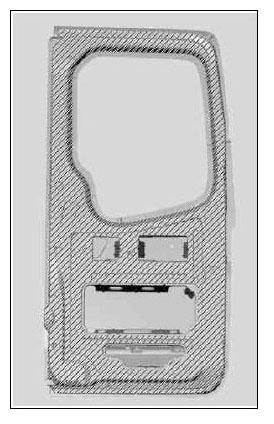

Hinged rear door

Courtesy of MERCEDES-BENZ USA

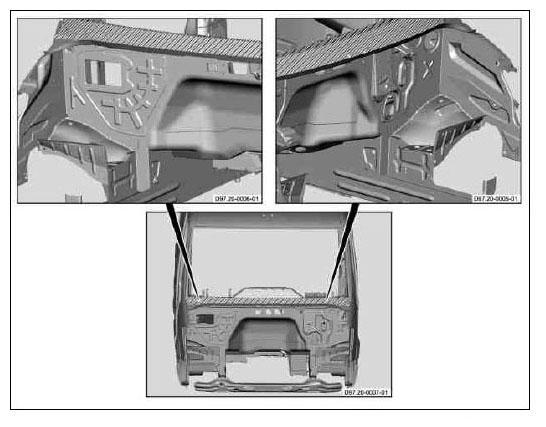

Waistrail

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

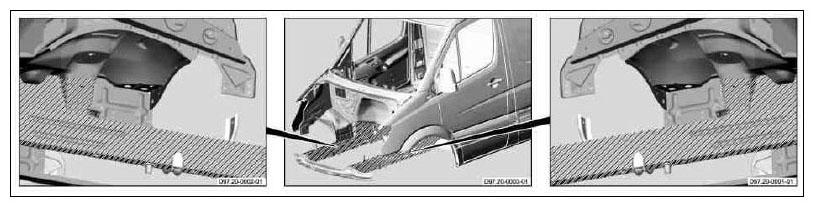

Left and right front longitudinal member

Courtesy of MERCEDES-BENZ USA

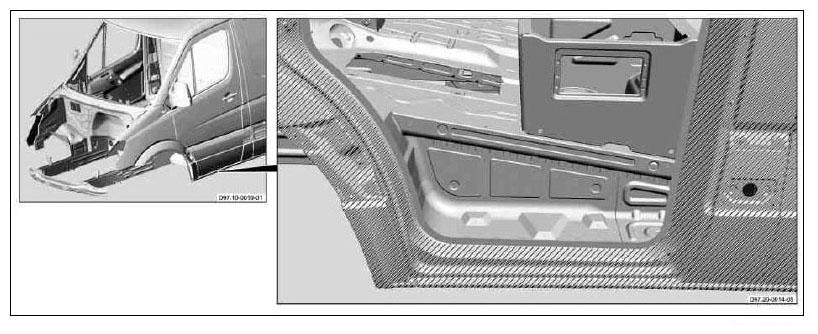

Left door sill

Courtesy of MERCEDES-BENZ USA

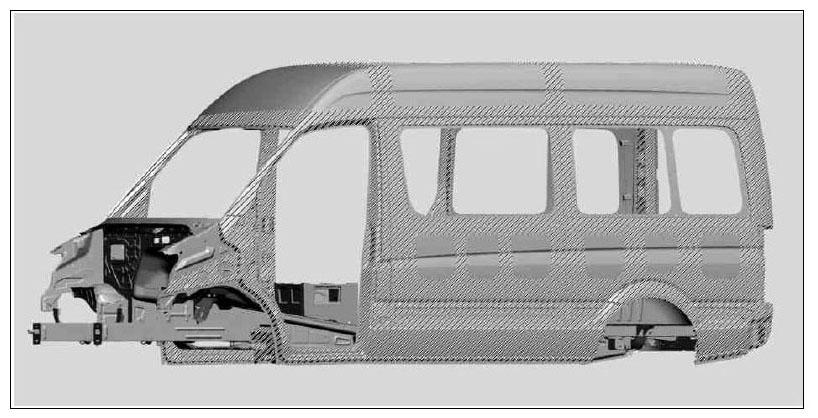

A-pillar, complete side wall with roof frame and cross bow

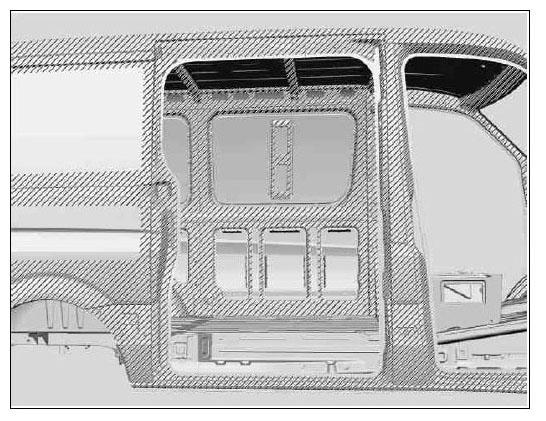

B, C-pillar and sliding door entry

Courtesy of MERCEDES-BENZ USA

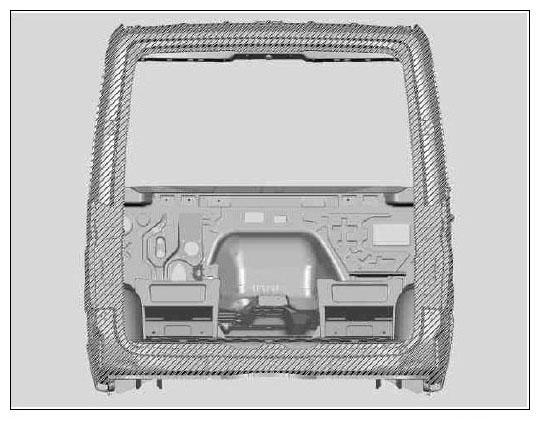

Corner pillars, rear roof frame and end crossmember

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

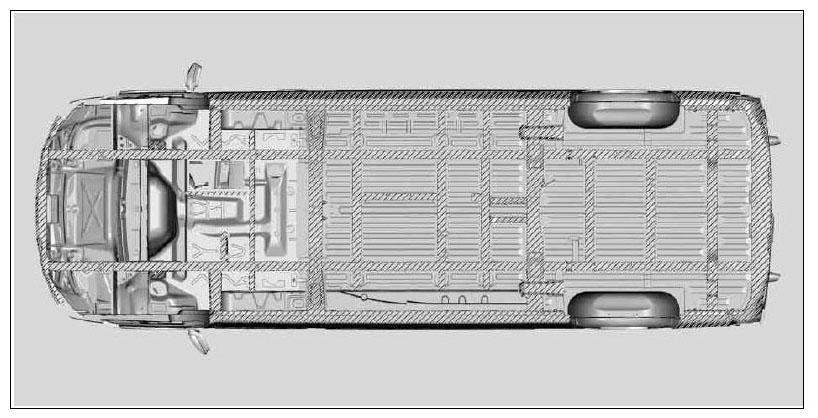

Entire underbody

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
1	Perform repair preservation	The processing temperature should not be less than 15 °C. Additional preservation measures may be required depending on the repair area deviating from the standard cavity preservation illustrated. Apply cavity preservation agent in marked areas only after completing sealing and paintwork, however, before assembly work from inside. Apply repair preservation agent twice with a drying time of 5 minutes in between. Perform cavity preservation, as required by repair area and on adjacent areas, over large surface. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly. Combination spray gun (corrosion protection) gotis://K_91-97_01.0
		Cavity preservation	*BR00.45-Z-1003-05A
	Cavity protection, general		GF98.00-P-2045A
2	Remove cavity sealant from drain holes

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity sealant, solvent-free (1 container)	A 000 986 72 70 05
