Disassemble/Assemble Front Bumper - Ar88.20-D-2050SD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906 except code XM0 (Facelift)
Shown on model 906

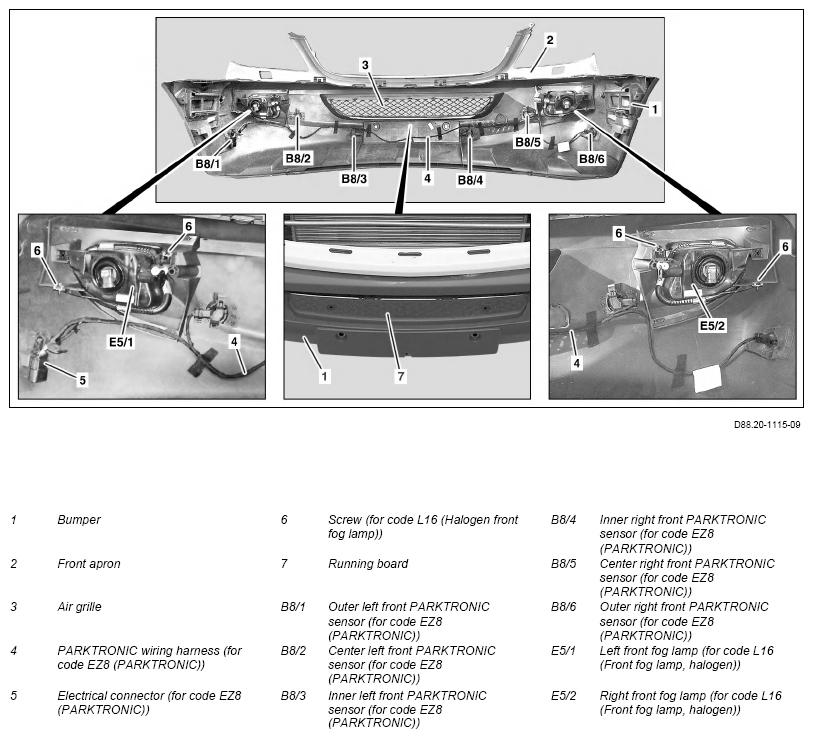

| Remove/install | |||
| 1 | Remove bumper (1) | Model 906 except for code ZX8 (Dodge brand scope) except for code ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SD |
| Model 906 with code ZX8 (Dodge brand scope) or with code ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SE | ||
| 2 | Press running board (7) on bumper (1) downwards and detach at rear | ||
| 3.1 | Unclip front apron (2) from bumper (1) | Model 906 except for code ZX8 (Dodge brand scope) except for code ZX9 (Freightliner (FTL) brand scope) |
*110589035900 |
| 3.2 | Remove headlamp surrounds from bumper (1)n | Model 906 with code ZX8 (Dodge brand scope) or with code ZX9 (Freightliner (FTL) brand scope) | AR88.00-D-2100SF |
| 4 | Unclip air grille (3) from bumper (1) | ||
| 5 | Unclip electrical connector (5) from bumper (1) and detach PARKTRONIC wiring harness (4) from bumper (1) | Vehicles with code EZ8 (PARKTRONIC) | |
| 5 | |||
| 6 | Release retaining lugs on front Parktronic sensors (B81, B82, B83, B84, B85, B86) and remove front Parktronic sensors (B81, B82, B83, B84, B85, B86) | Vehicles with code EZ8 (PARKTRONIC) | |
| 7 | Unscrew screws (6), remove left front fog lamp (E5/1) and right front fog lamp (E5/2) | Vehicles with code L16 (Front fog lamp, halogen) | |
| 8 | Install in the reverse order |
