Remove/Install Headlamp Cover - Ar88.00-D-2100SF
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906 with code ZX8 (Dodge execution) except code XM0 (Facelift)
Model 906 with code ZX9 (Freightliner execution) except code XM0 (Facelift)
| Remove/install | ||
| 1 | Remove bumper (3) | AR88.20-D-2000SE |

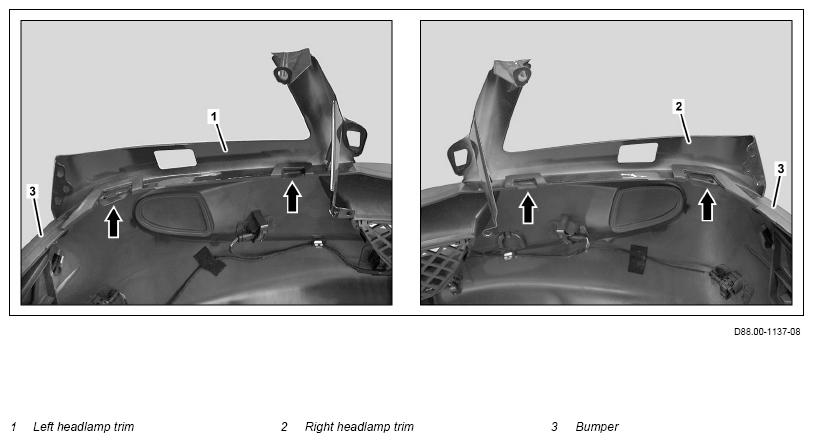

| 2 | Unclip left headlamp trim (1) from bumper (3) (arrows) and remove toward front from bumper (3) | |
| 3 | Unclip right headlamp trim (2) from bumper (3) (arrows) and remove toward front from bumper (3) | |
| 4 | Install in the reverse order |
