Disassemble/Assemble Front Bumper - Ar88.20-D-2050M
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906 with code XM0 (Facelift)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

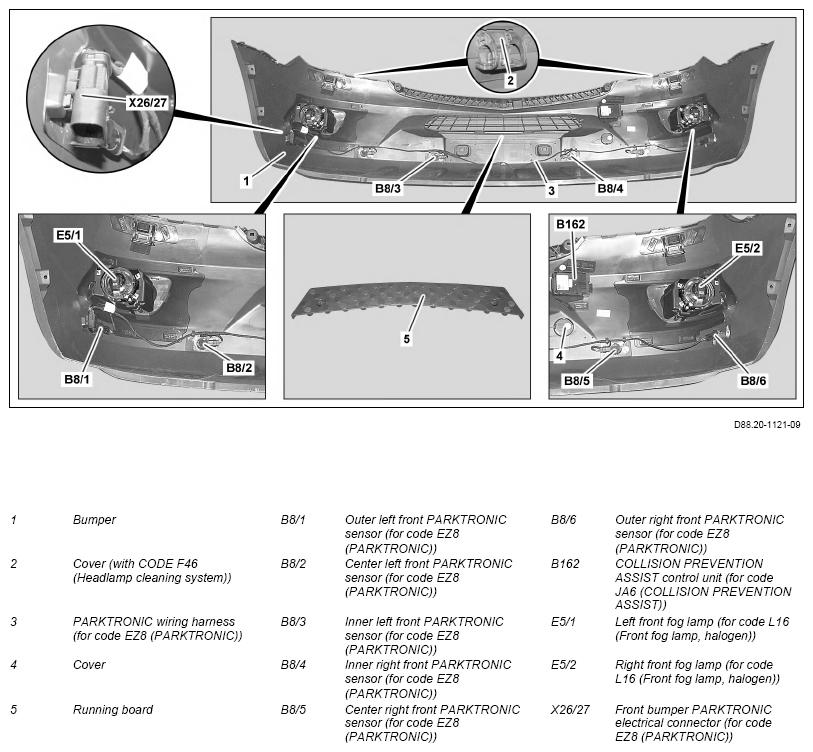

| 1 | Remove bumper (1) | AR88.20-D-2000M | |
| 2 | Unclip and remove running board (5) from bumper (1) | ||
| 3 | Unclip front bumper PARKTRONIC electrical connector (X26/27) from bumper (1) and detach PARKTRONIC wiring harness (3) from bumper (1) | Vehicles with code EZ8 (PARKTRONIC) | |
| 4 | Release retaining lugs on front Parktronic sensors (B81, B82, B83, B84, B85, B86) and remove front Parktronic sensors (B81, B82, B83, B84, B85, B86) | Vehicles with code EZ8 (PARKTRONIC) | |
| 5 | Remove left front fog lamp (E5/1) and right front fog lamp (E5/2) from bumper (1) | Vehicles with code L16 (Front fog lamp, halogen) | AR82.10-D-1835M |
| 6 | Remove fixing clips for left front fog lamp (E5/1) and right front fog lamp (E5/2) from bumper (1) | Vehicles with code L16 (Front fog lamp, halogen) | |
| 7 | Remove COLLISION PREVENTION ASSIST control unit (B162) from bumper (1) | Vehicles with code JA6 (COLLISION PREVENTION ASSIST) | AR54.70-D-0002M |
| 8 | Unclip and remove covers (2) from bumper (1) | Vehicles with code F46 (Headlamp cleaning system) | |
| 9 | Unclip and remove cover (4) from bumper (1) | ||
| 10 | Install in the reverse order |
