Retrofit Mud Flaps - AZ88.30-D-0003S
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906 without CODE ZU8 (National version for USA)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Install | |||
| 1 | Lift vehicle on vehicle lift | ||
| AR00.60-D-1000H | |||
| 2 | Remove wheels | ||
| AR40.10-D-1100H | |||

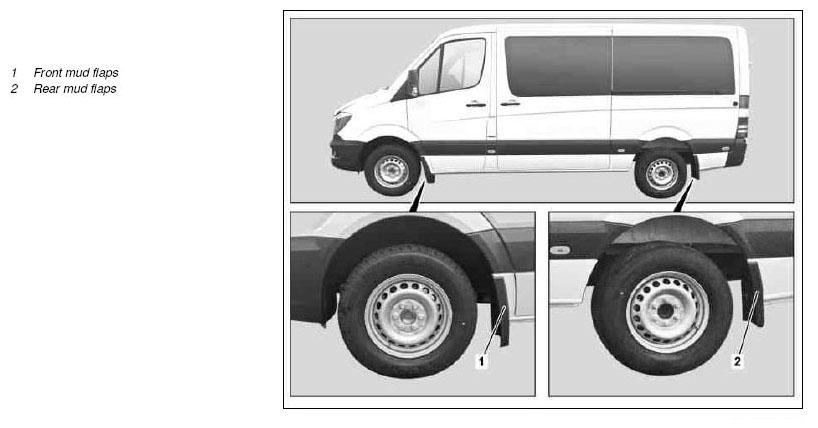

| 3 | Retrofit front mud guard (1) | AZ88.30-D-0003-03S | |
| 4 | Retrofit rear mud guard (2) | AZ88.30-D-0003-04S | |
| 5 | Mount wheels | ||
| AR40.10-D-1100H | |||
| 6 | Lower vehicle with lifting platform | ||
| AR00.60-D-1000H | |||
| Update Vehicle Documentation (VeDoc) | |||
| 7 | Enter CODE P47 (Front mud guard) and CODE P48 (Rear mud guard) into vehicle online data card | ||
| 8 | Attach "Mud guards retrofitted according to AZ88.300003S" note under field organization texts to design group 88 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| siehe ODUS | Mud flap parts kit | 1 |
