Retrofit Front Mud Guards - AZ88.30-D-0003-03S
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906 without CODE ZU8 (National version for USA)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1020-05A | Sealing wax | A 000 989 38 58 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

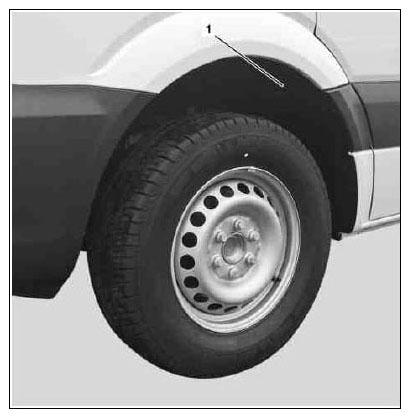

- Remove front fender liner rear section (1).

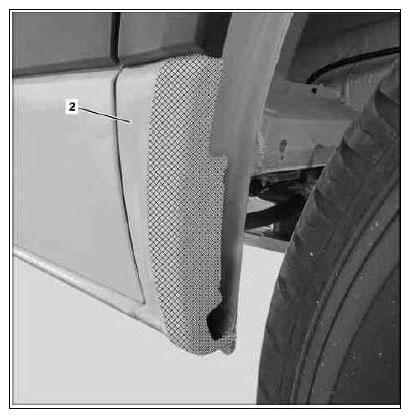

- Clean front-end paneling (2) in crosshatched area.

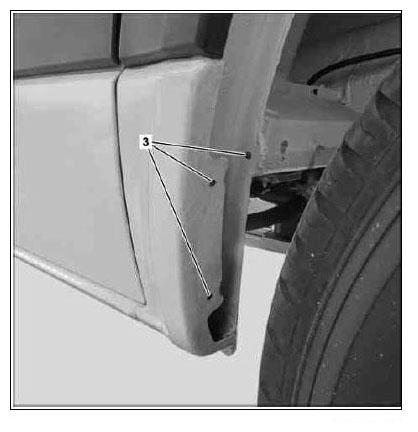

- Position mud guard and mark holes for mud guard bolts (3).
- Drill marked holes in front-end paneling and wheel well.
Hole diameter 5 mm.
- Deburr rivet holes and apply preservation agent.

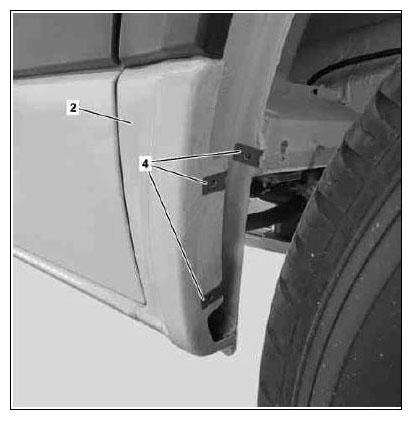

- Install captive nuts (4).
- Install chafe protection film on front-end paneling (2) in cleaned area.
- Position mud guard and tighten to attachment points (5 and 6).
