Lift/Jack Up Vehicle - Ar00.60-D-1000H

Model 906

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Secure vehicle on vehicle lift
			AR00.60-D-0100H
		Laden vehicles, vehicles with a heavy body and vehicles with unfavorable load distribution must generally be secured. Otherwise these may fall.

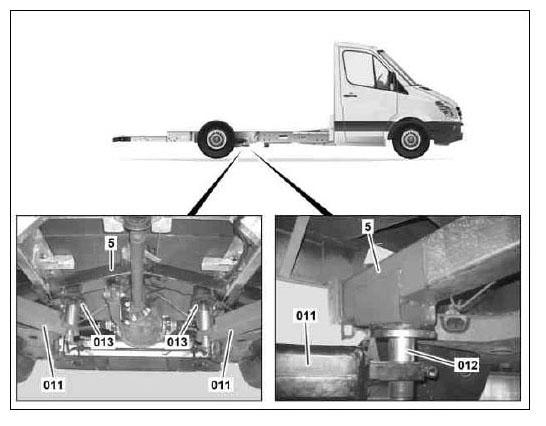

	Vehicles with low frame	Model 906 The vehicle must not be lifted at longitudinal member at rear. Otherwise the longitudinal member is damaged. Vehicles with low frames may only be lifted at the rear at the integral carrier (5) in the vicinity of the inner supports of the semi-trailing arms, unless the vehicle has a vehicle lift support point, which should then be used to lift the vehicle.
	Vehicles for winter service operations	Model 906 with code CV1 (Pre-installation for winter service vehicle) To lift at the front, support drifts (017) must be used and the vehicle can only be lifted when unloaded. Otherwise the longitudinal member will be damaged and the vehicle can be tipped off of the vehicle lift (011).
	Vehicles with electric step	Model 906 with code T57 (Right load compartment sliding door electric step) Model 906 with code T58 (Left load compartment sliding door electric step) When lifting, make sure that there is enough distance between the electric step and the support arms of the vehicle lift (011). The electrical step may otherwise be damaged.

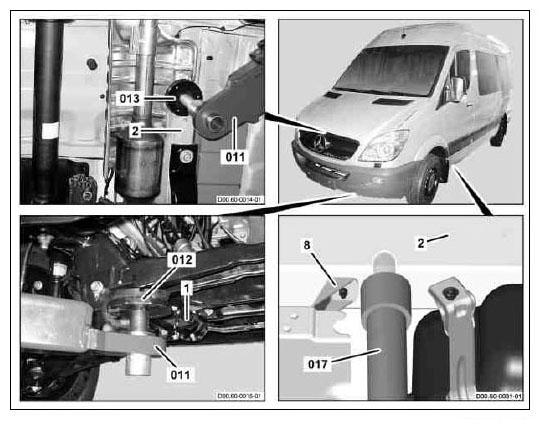

1	Front support to spring clamp plate	Model 906 except code CV1 (Pre-installation for winter service vehicle) Can be used on any vehicle, provided that the front axle does not have to be removed.
2	Front support to longitudinal member	Model 906 with code CV1 (Pre-installation for winter service vehicle) Only perform front support at longitudinal member with the support drifts (017). Model 906 with box body or special bodyModel 906 If possible, always support at front mount at longitudinal member (2). For work which requires the front axle to be removed.

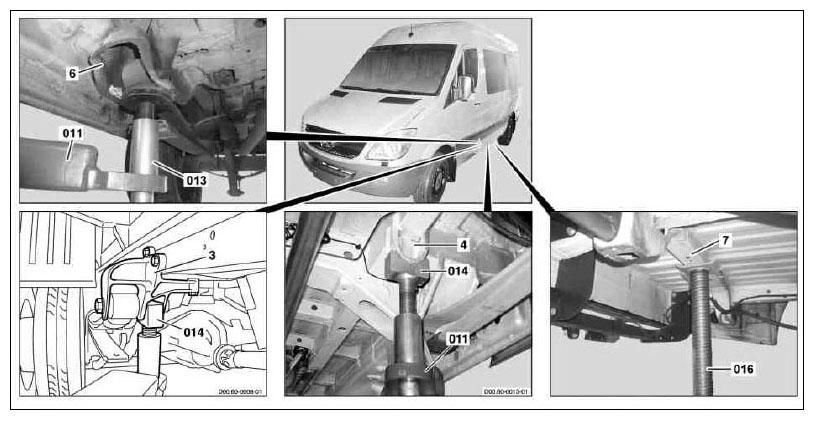

3	Support at rear to front rear spring bracket	Model 906
4	Rear support at longitudinal member	Model 906 If possible, always support at rear mount at longitudinal member (4).
5	Frame-type integral support	Model 906
6	Mount on front rear spring bracket	Model 906
011	Lifting platform	Two-column lift 4.0 - 6.5 t electromechanical gotis://H_00.1_01.2  Two-column lift 4.0-7.0 t electrohydraulic gotis://H_00.1_01.3  Two-post lift, 3.0 - 6.0 t, with support arm gotis://H_00.1_05.2  Two-post lift, 3.2-6.0 t, telescopic version gotis://H_00.1_05.3
012	Support plate	For front support to spring clamp plate (1). Unscrew support plate (012) at right and left an equal distance. Model 906 In vehicles with vehicle lift support point at integral carrier (5).
013	Long support plate	For front support at longitudinal member (2) and support at front rear spring bracket (6). Can be used alternatively to front support to spring clamp plate (1). Pull out long support plates (013) at right and left an equal distance. Model 906 In vehicles without a vehicle lift support point at the integral carrier (5) in the vicinity of the inner mounts of the semi-trailing arms.
014	V-block	For rear support at front rear spring bracket (3) and rear support at longitudinal member (4). Pull v-block (014) at right and left rear out an equal distance.
016	Ram	Vehicles with heavy bodies and panel vans/crewbuses with a long wheelbase at the crossmember (7) should be supported with a prop (016).
017	Support drift	Model 906 With soundproofingEnsure that support drift (017) does not make contact with bracket (8) of rear soundproofing. If necessary, loosen bracket (8), push towards the front as far as possible and retighten it. Otherwise the brackets (8) of the rear soundproofing and the longitudinal members may be damaged. For front support to longitudinal member (2). Unscrew support drift (017) at right and left an equal distance.
