Retrofit Rear Mud Guards - AZ88.30-D-0003-04S
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906 without CODE ZU8 (National version for USA)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1020-05A | Sealing wax | A 000 989 38 58 |
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

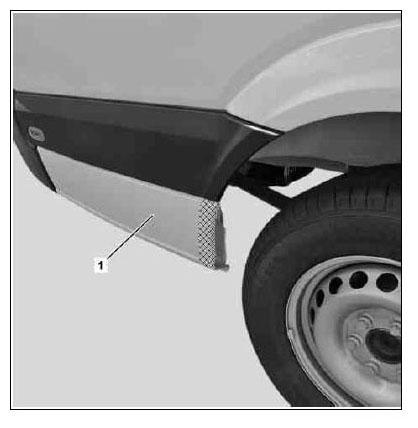

- Clean rear side wall (1) at bottom in crosshatched area.
- Position mud guard and mark holes for bolts in mud guard (2).
- Drill marked holes in rear side wall (1) at bottom.
Hole diameter 5 mm.
- Deburr rivet holes and apply preservation agent.
- Attach chafe protection film on bottom rear side wall (1) in cleaned area.

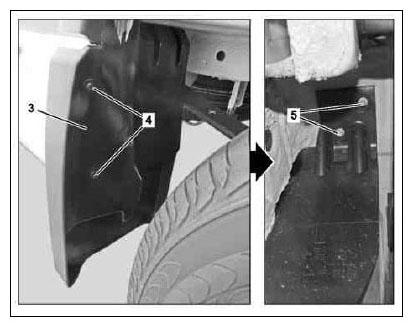

- Position mud guard (3) and tighten with bolts (4) and nuts (5).
