Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MMB
ENGINES 276.950 in MODEL 221.057/157/082/182
ENGINES 157.980 in MODEL 216.374, 221.074/174
ENGINES 278.920 in MODEL 216.373/394
ENGINES 278.932 in MODEL 221.073/173/094/194

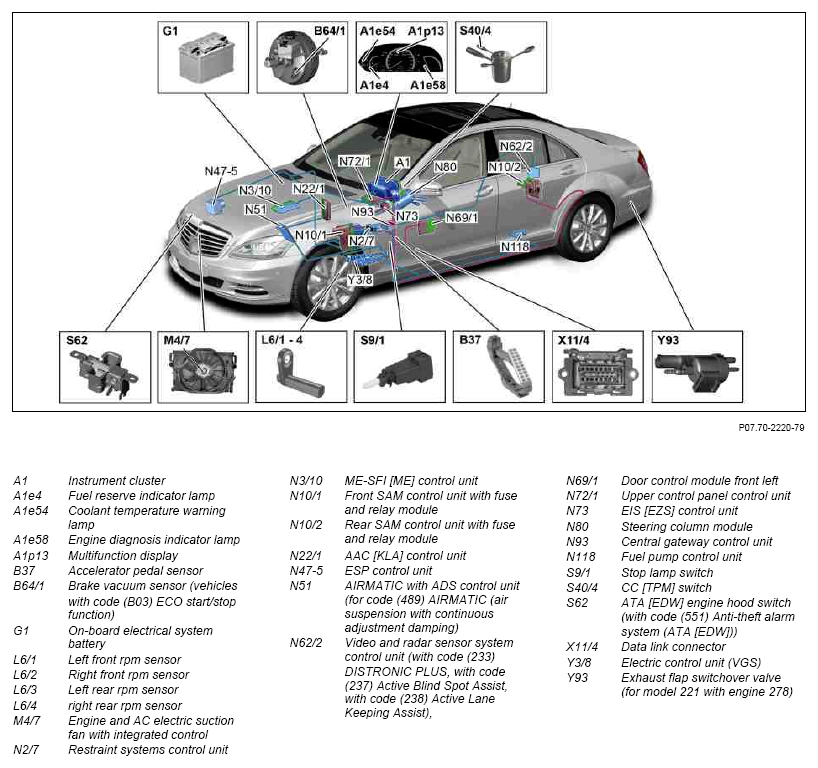

Shown on model 221 with engine 278

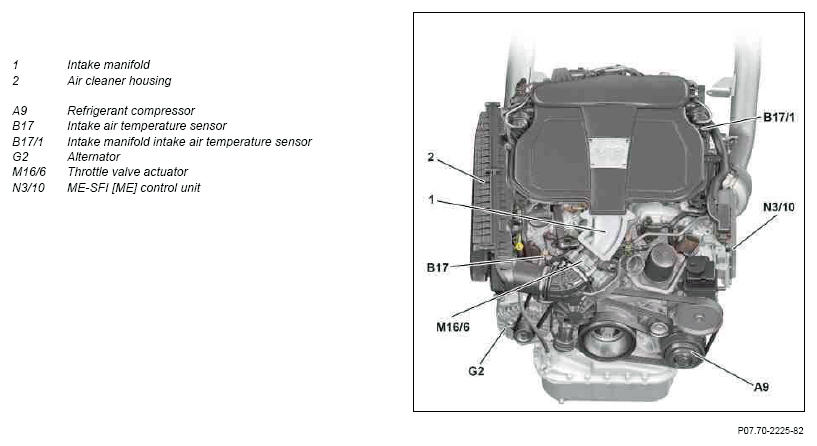

View of engine 276 from the front (for an engine with stratified operation)
View of engine 276 from the front (for an engine with stratified operation)

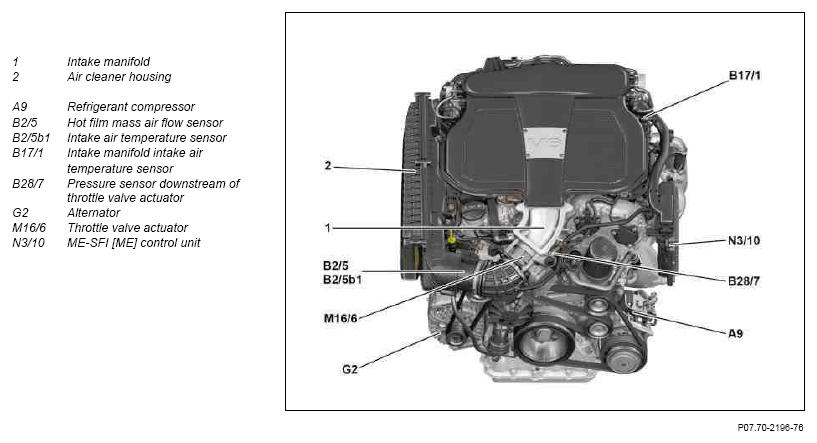

View of engine 276 from front

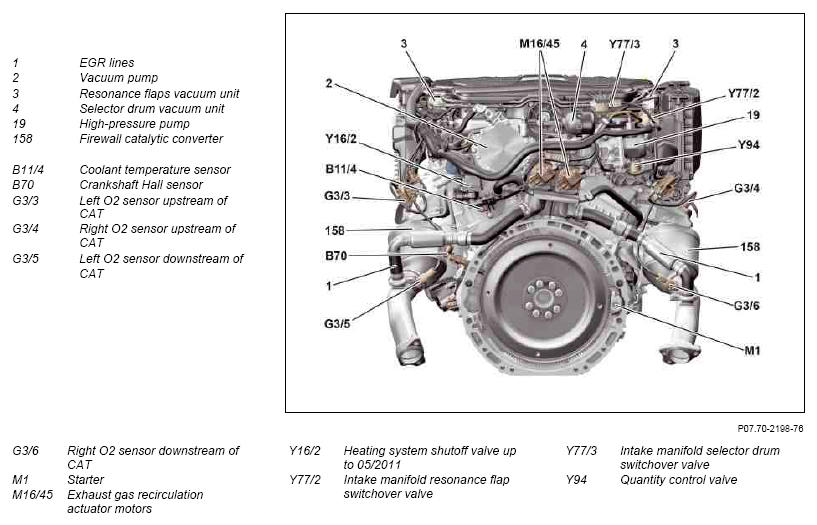

View of engine 276 from the rear (for an engine with stratified operation)
View of engine 276 from below

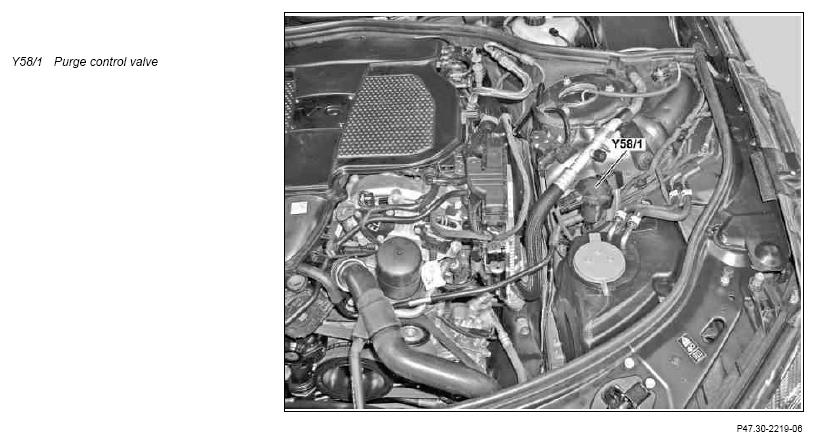

View of engine compartment from left front

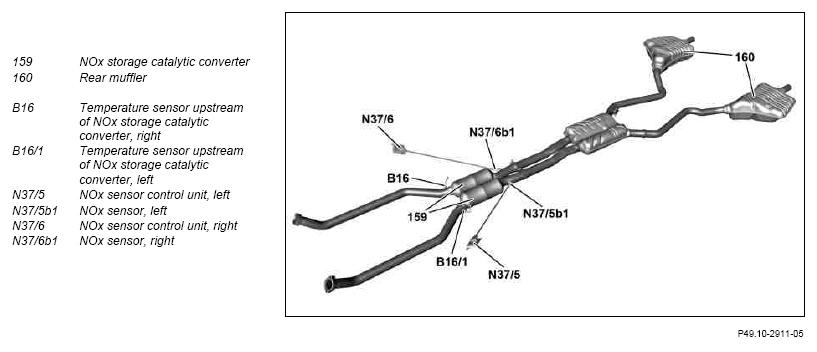

Exhaust system shown on engine 276 (for an engine with stratified operation)

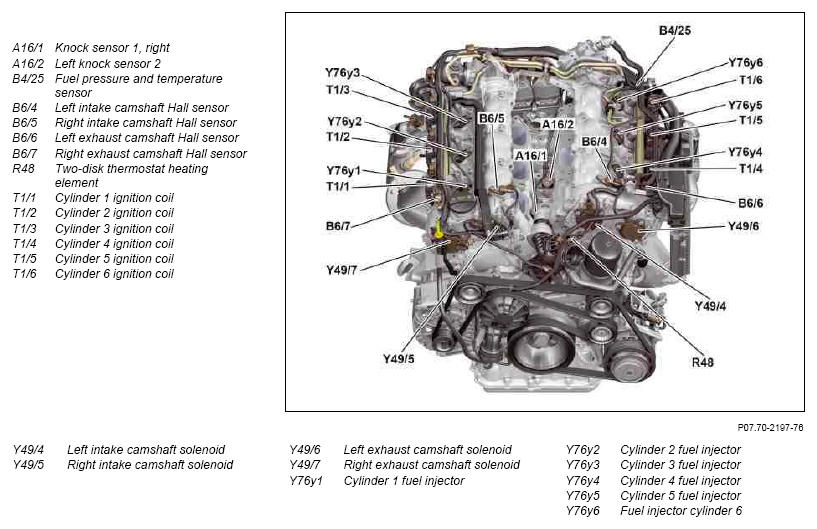

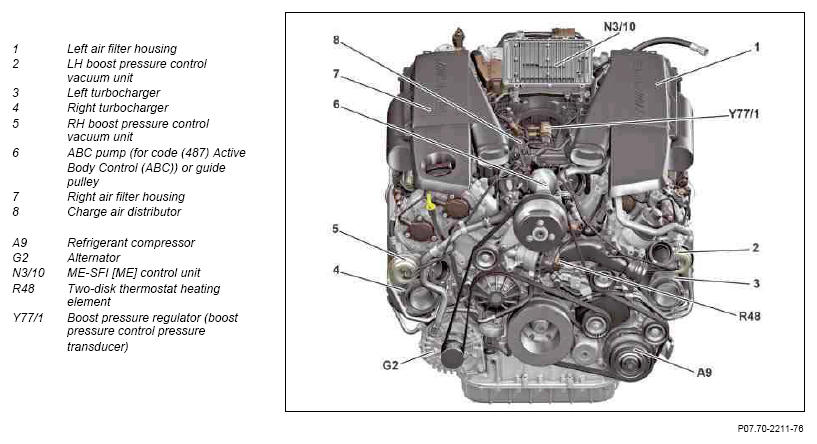

View of engine 278 from front

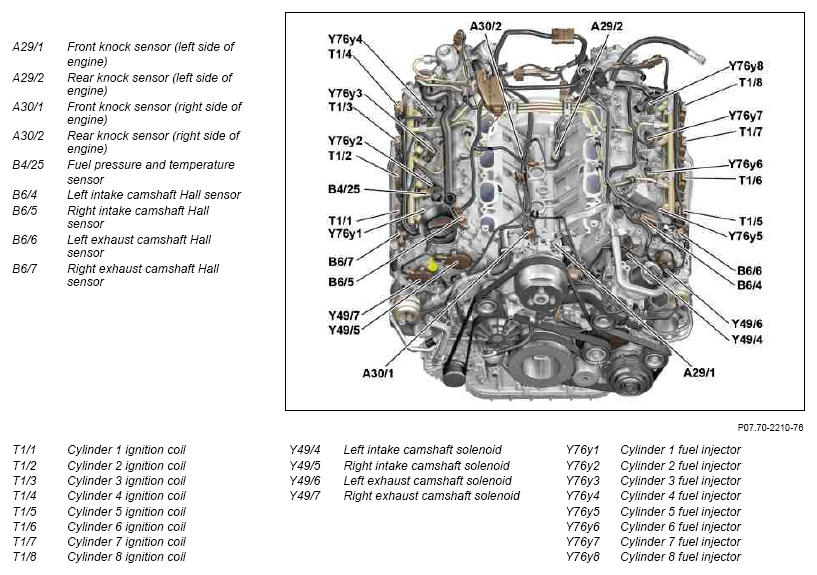

View of engine 278 from above

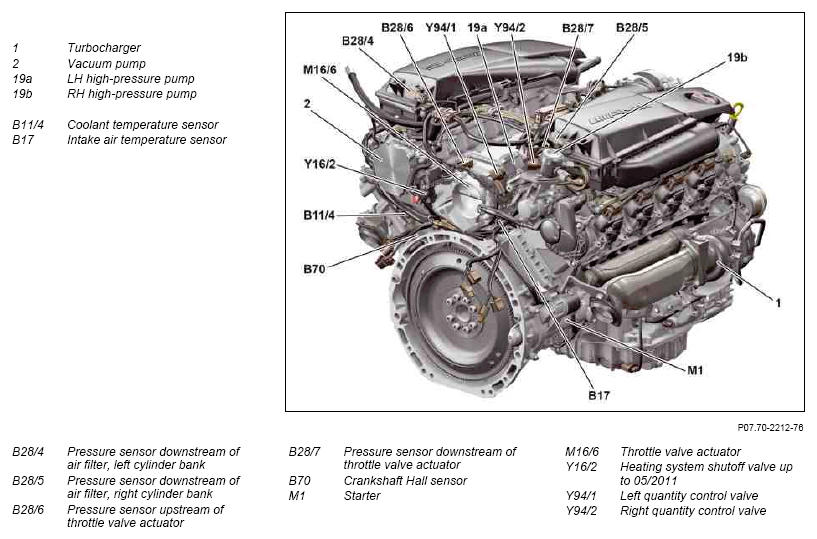

View of engine 278 from rear right

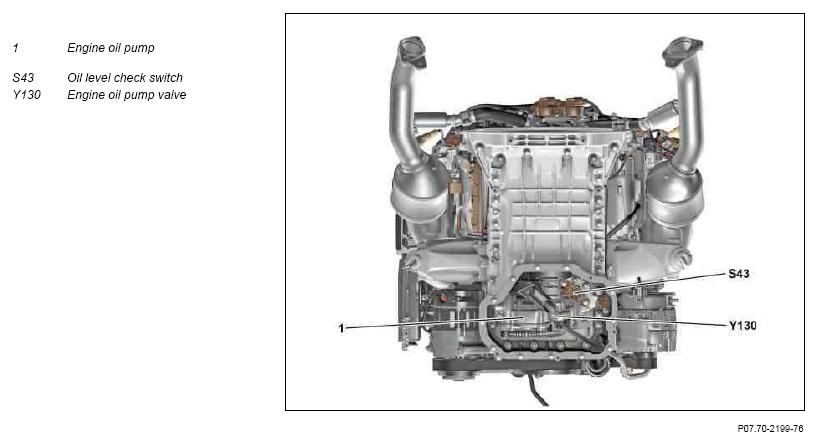

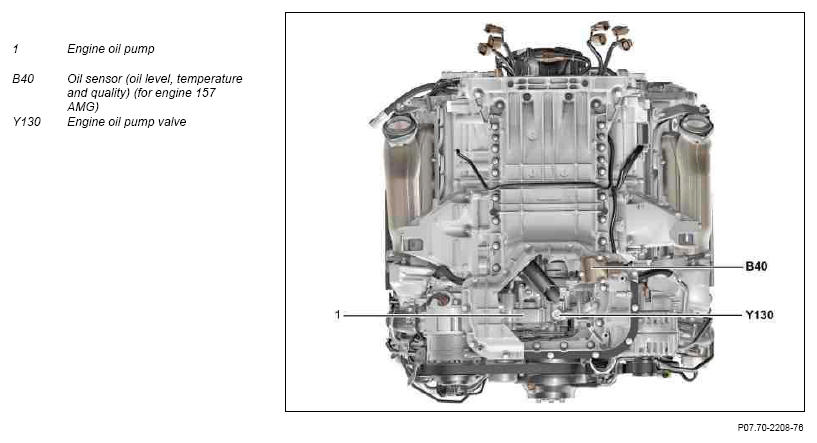

View of engine 157 from below

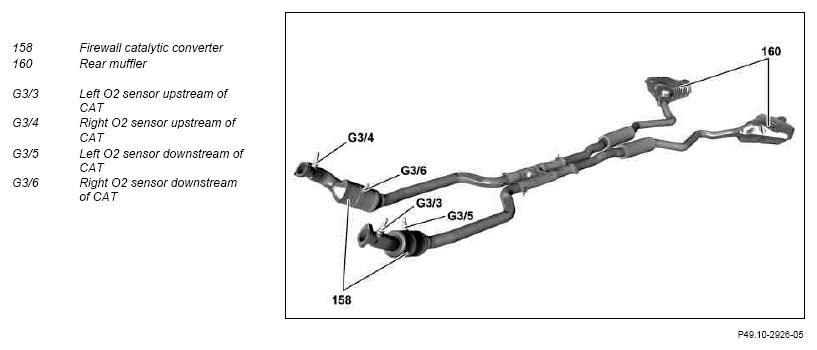

Exhaust system shown engine 278

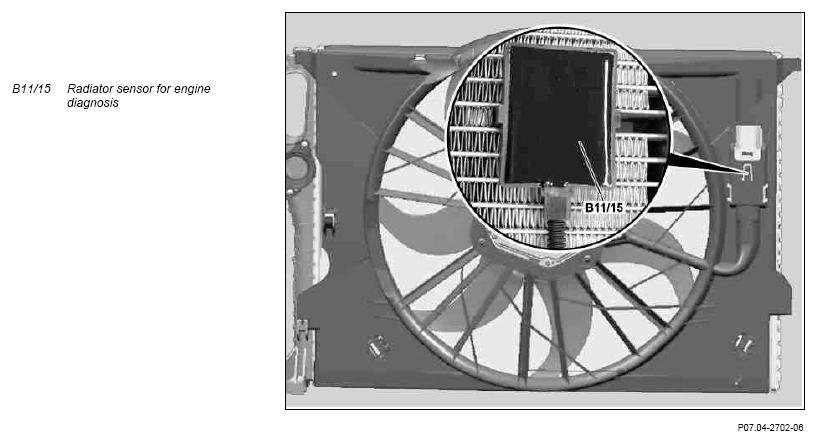

View on cooler from rear (on engine 276 without stratified operation, engine 278 with code (494) USA version and code (917) Partial zero emission vehicle USA)

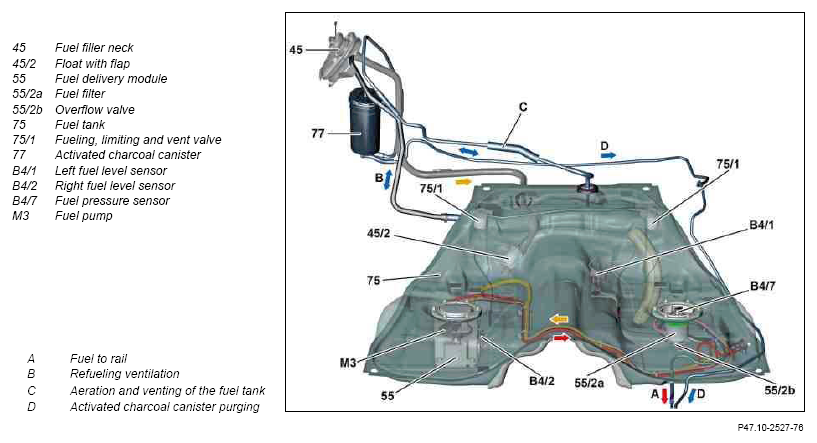

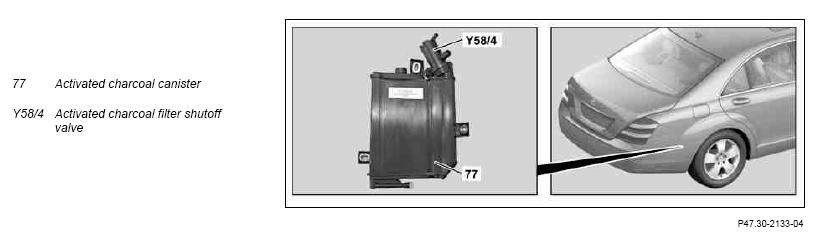

Phantom view of fuel tank

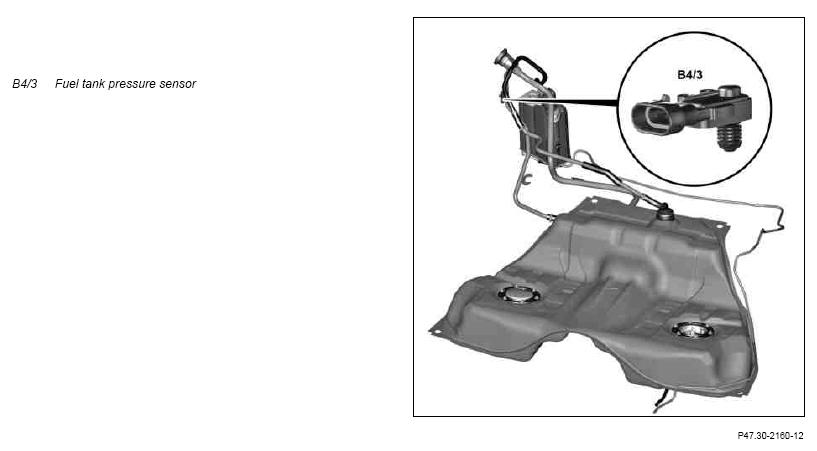

View of fuel tank from the front left (with code (494) USA version)
View of wheel well from the rear right (except code (494) USA version)

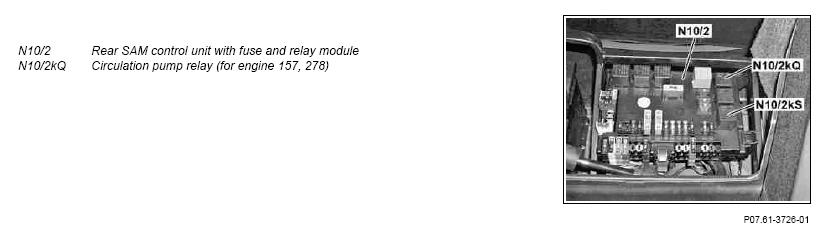

Shown on model 221

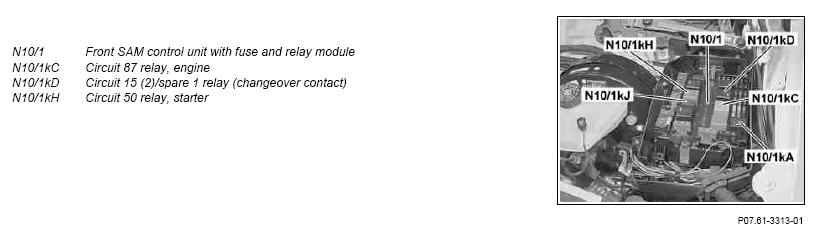

Shown on model 221

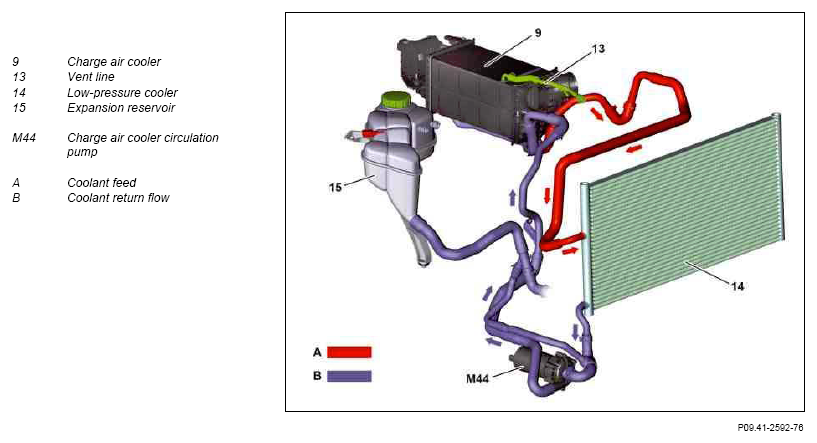

Shown on charge air cooler coolant circuit (for engine 157, 278)

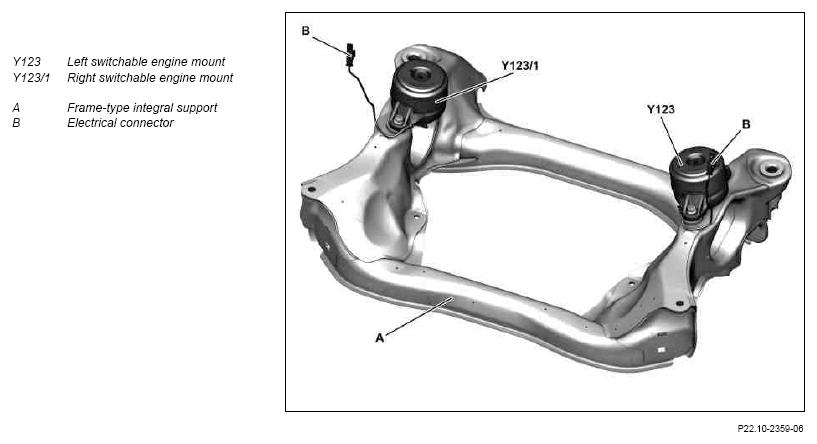

Shown on frame-type integral support from the front (for engine 276 4MATIC)
| Component description for instrument cluster | A1 | GF54.30-P-6000LE | ||
| Component description for restraint systems control unit | N2/7 | GF91.60-P-4048LE | ||
| Component description for ME-SFI [ME] control unit | N3/10 | Engine 276 | GF07.61-P-6000MMB | |
| Engine 278, 157 | GF07.61-P-6000MMC | |||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070LE | ||
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030LE | ||
| Component description for automatic air conditioning control unit | N22/1 | GF83.40-P-3012LE | ||
| Component description for NOx sensor control unit | N37/5, N37/6 | for engine 276 with stratified operation | GF14.40-P-3024MMB | |
| Component description for ESP control unit | N47-5 | GF42.45-P-5118LE | ||
| Component description for AIRmatic with ADS control unit | N51 | with code (489) AIRMATIC (air suspension with continuous adjustment damping) | GF32.22-P-5108LEA | |
| Component description for video and radar sensor system control unit | N62/2 | With code (233) DISTRONIC PLUS for code (237) Active Blind Spot Assist for code (238) Active Lane Keeping Assist |
GF30.30-P-3304LE | |
| Component description for left door control unit | N69/1 | Model 216.3 | GF72.29-P-4124LA | |
| Component description for left front door control unit | N69/1 | Model 221.0/1 | GF72.29-P-4141LE | |
| Component description for upper control panel control unit | N72/1 | GF54.21-P-6040LE | ||
| EZS control unit, component description | N73 | GF80.57-P-6003LE | ||
| Component description for steering column tube module | N80 | GF54.21-P-6050LE | ||
| Component description for central gateway control unit | N93 | GF54.21-P-4170LE | ||
| Component description for fuel system control unit | N118 | With engine 276, 278. | GF47.40-P-2001MMB | |
| With engine 157 | GF47.40-P-2001MMC | |||
| Component description for fully integrated transmission control unit | Y3/8n4 | GF27.60-P-5165AHS | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | Engine 276 | GF07.70-P-0998MMB | ||
| Engine 278, 157 | GF07.70-P-0998MMC | |||
