Component description for the fuel system control unit - GF47.40-P-2001MMB
ENGINES 276.9 in MODEL 221.0/1
ENGINES 278.9 in MODEL 216.3, 221.0/1

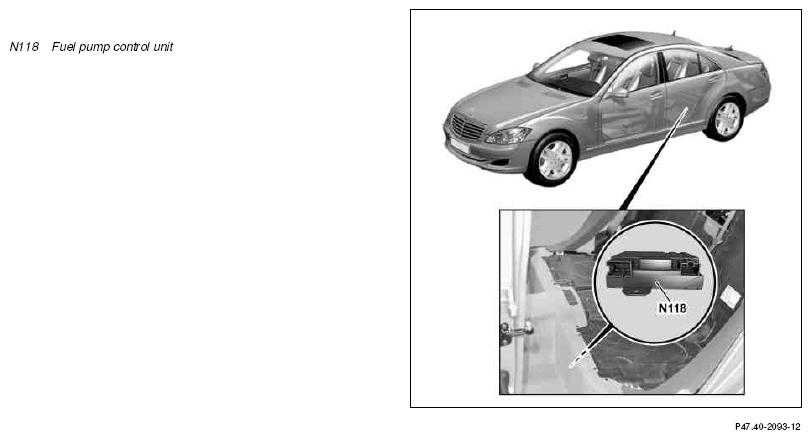

LH rear compartment shown on model 221
Location
The fuel pump control unit is located in the LH rear compartment.
Task
The FSCU has been given the internal designation FSCM-EC (F uel S ystem C ontrol M odule for E lectronically C ommutated fuel pumps).
The fuel pump control unit regulates the fuel pump (M3) according to need and transmits information via the current fuel pressure to the ME-SFI [ME] control unit (N3/10).
Input and output signals
The following input signals are evaluated by the fuel pump control unit and appropriate output signals are emitted:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
Direct input signals
- Circuit 15
- Circuit 30
- Circuit 31
- "Fuel pump ON" ground signal
- Sensor signal from fuel pressure sensor (B4/7)
Direct output signals
- Power supply for fuel pressure sensor (5 V)
- Fuel ground pressure sensor
- AC signal for fuel pump (phase U)
- AC signal for fuel pump (phase V)
- AC signal for fuel pump (phase W)
CAN input signals
- Fuel pump ON
- Specified fuel pressure
CAN output signals
- Fuel pressure
- Diagnostic data
Design
The fuel system control unit consists of a fuel housing with two plugs and internal measuring and control electronics.
Function
The function is described at the following points:
- Fuel pump regulation
- Fuel system limp-home mode control unit
- Diagnosis
- Tank-draining function
Fuel pump regulation
Switching on of the fuel pump takes place if a signal "fuel pump ON" is received by the fuel system control unit. This signal is sent redundantly from the ME-SFI [ME] control unit as a CAN signal via the drive train CAN (CAN C) and directly as a ground signal.
The fuel pump control unit also receives the CAN signal "nominal pressure of the fuel" from the ME-SFI [ME] control unit.
The fuel pump control unit detects the current fuel pressure by means of a voltage signal from the fuel pressure sensor and transmits this information via the drive train CAN to the ME-SFI [ME] control unit.
The fuel system control unit evaluates the current fuel pressure, compares it with the specified fuel pressure and actuates the fuel pump appropriately using three-phase offset AC voltage signals in such a way that the actual value corresponds to the specified value.
The fuel pump pressure is regulated dependent on the fuel temperature and the motor rpm between about 4.5 to a maximum of 6.7 bar.
Fuel system control unit limp-home mode
- If the signal "nominal pressure of the fuel" is missing a substitute value is created and the fuel pump is appropriately actuated by the fuel pump control unit.
- If the signal "nominal pressure of the fuel" and the signal from fuel pressure sensor is missing, the fuel pump is actuated by an established permanent pulse width modulation signal.
- If both signals "Fuel pump ON" are missing, the fuel pump is actuated upon recognition of circuit 15.
- The limp-home function ensures over the direct signals "fuel pump ON" and "circuit 15" that the fuel supply is also secured after failure of the internal control system.
Diagnosis
The fuel system control unit conducts a self-test and a component test. If an error is detected, it is stored by the fuel pump control unit and made available to the ME-SFI [ME] control unit via the drive train CAN and also an attached Diagnosis Assistance System (DAS) via the diagnostic CAN (CAN-D).
Tank-draining function
The fuel tank can be emptied over the fuel system control unit without the engine running.
To do this, the tank draining function is selected using the DAS, and the following parameters are entered:
- Parameter 01 for "fuel pump ON"
- Time "0-99999" seconds
- Specified fuel pressure 5.5 bar
The DAS must be attached while emptying and the ignition must remain switched on.
Variants
The vehicle and engine variants are already stored in the fuel system control unit. After replacing the fuel system control unit, variant coding must be conducted.
| Designation | Unit | Values | Tolerance range | Remarks | |
|---|---|---|---|---|---|
| Fuel pump control unit (N118) | |||||
| Power supply | V | 13.5 | Circuit 30 | ||
| Voltage limit: | minimum | V | 6.0 | ||
| maximum | V | 16.0 | |||
| Power consumption: | No-load current (typical) | μA | 7 | ||
| No-load current (maximum) | μA | 300 | at 13 V and 23°C | ||
| Ready to operate | mA | 100 | |||
| mode | mA | 300 | |||
| Reverse polarity protection | Through triggering an electrical fuse | ||||
| Short-circuit resistance | For power supply, load outputs and signal lines | ||||
| Operating temperature range | °C | -40 - +85 | |||
| Diagnosis capability | Yes | ||||
| Flash capability/coding capability | Yes/yes | ||||
| Special features | De-tanking service (de-tanking without engine running) | ||||
| Fuel pressure sensor (B4/7) | |||||
| Model | Capacitive, absolute measuring sensor | ||||
| Supply voltage | V | 5.0 | ±0.25 V | ||
| Signal voltage | V | 0.3 - 4.5 | Linear, signal proportional to fuel pressure | ||
| Measuring range | bar | 0.5 - 10 | |||
| Operating temperature range | °C | -40 - +80 | |||
| Fuel pump (M3) | |||||
| Model | Two-stage flow pump with a 3-phase AC motor | ||||
| Supply voltage | V | 12.0 | 3 phase-shifted AC signals from FSCU | ||
| Delivery rate maximum | l/h | 177 | For model 221 with fuel pump (VDO G43) | ||
| Wiring diagram for fuel system control unit | N118 | Model 216 | PE47.40-P-2101-97CAC | |
| N118 | Model 221 | PE47.40-P-2101-97SAC |
