Retrofit D-net cell phone - AZ82.70-P-0001GZ

MODEL 164.1/8 up to 30.6.09 For Mercedes-Benz hands-free system FSE12

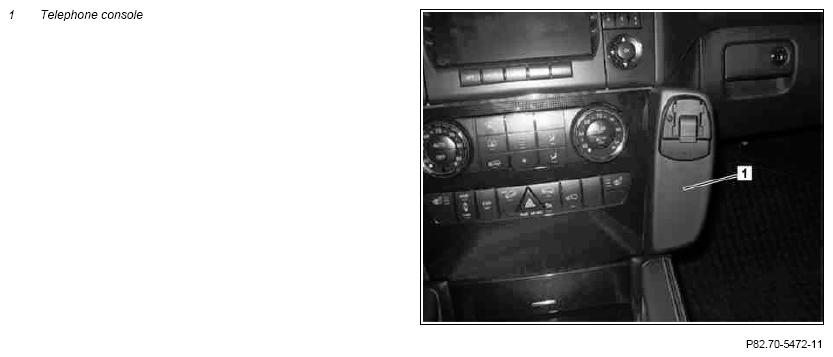

Fig 1: Identifying Telephone Console

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove radio		AR82.60-P-7502GZ
2	Remove right cover below instrument panel		AR68.10-P-1520GZ
3	Remove right paneling from A-pillar		AR68.30-P-4050GZA
4	Remove front overhead control panel		AR82.20-P-1100GZ
	Install
5	Retrofit interface		AZ82.70-P-0001-07GZ
6	Retrofit hands-free system wiring harness		AZ82.70-P-0005-02GZA
7	Retrofit commercially available antenna	Only if the customer wants a telephone antenna.
8	Retrofit telephone console (1) for hands-free system		AZ82.70-P-0005-01GZ
9	Perform retrofit variant coding		AZ54.65-P-0001-08Q
10	Install remaining parts
11	Carry out startup and function test	Check telephone operation according to operating instructions.
12	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "D-net cell phone retrofitted as per AZ82.70-P-0001GZ " note under field organization texts to design group 82.
