Retrofit COMAND APS with DVD changer - AN82.85-P-0004GZA

MODEL 164

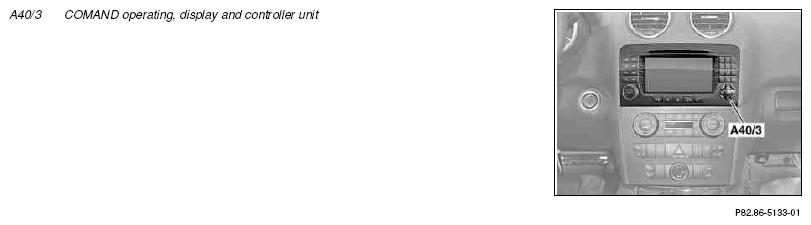

Fig 1: Identifying COMAND Operating, Display And Control Unit
G10118454Courtesy of MERCEDES-BENZ USA
REMOVING Remove
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Remove headliner   AR68.30-P-4300GZ
2 Remove radio IMPORTANT The removed audio component is no longer required. AR82.60-P-7502GZ
3.1 Remove cover below dashboard (left) IMPORTANT Left-hand drive vehicle. AR68.10-P-1500GZ
3.2 Remove cover below dashboard (on right) IMPORTANT Right-hand drive vehicle. AR68.10-P-1520GZ
4 Remove paneling in left  footwell   AR68.30-P-4010GZ
INSTALLING Install
5 Retrofit antenna line   AN82.62-P-0001-04GZ
6 Install COMAND operating, display and controller unit (A40/3) with DVD changer IMPORTANT Connect electrical connector of antenna line to COMAND operating, display and controller unit (A40/3) with DVD changer. AR82.60-P-7502GZ
7.1 Install cover below instrument panel (left) IMPORTANT Left-hand drive vehicle. AR68.10-P-1500GZ
7.2 Install cover below instrument panel (right) IMPORTANT Right-hand drive vehicle. AR68.10-P-1520GZ
8 Install paneling in left  footwell   AR68.30-P-4010GZ
9 Install headliner   AR68.30-P-4300GZ
10 Connect STAR DIAGNOSIS   AD00.00-P-2000-04A
11 Enter special equipment on the vehicle data card and the online vehicle data card IMPORTANT Enter code (512) COMAND APS with DVD changer and delete code of removed audio component. ↓
Initial startup of retrofits and modifications AN00.01-P-1001-01V
12 Perform retrofit variant coding IMPORTANT Listed control units must be SCN coded using the Diagnosis Assistance System:
  • Instrument cluster
  • COMAND operating, display and controller unit (A40/3) with DVD changer

13 Close STAR DIAGNOSIS   AD00.00-P-2000-04A
14 Document retrofitted equipment using vehicle documentation (VeDoc) IMPORTANT Attach "COMAND APS with DVD changer retrofitted, as per AN82.85-P-0004GZA " note under the field organization texts to design group 82.
15 Perform function test IMPORTANT See operating instructions of COMAND operating, display and controller unit (A40/3) with DVD changer.
PARTS ORDERING NOTES

Part no. Designation Quantity
DG 99 (see EPC) Scope of delivery for COMAND APS with DVD changer 1
