Retrofit Audio 50 APS with DVD changer - AN82.61-P-0007GZA

MODEL 164

Shown on model 164.1

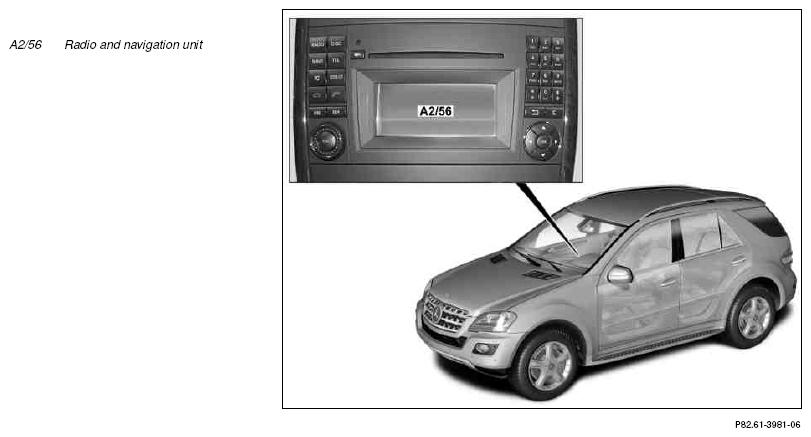

Fig 1: Identifying Radio And Navigation Unit - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove headliner		AR68.30-P-4300GZ
2	Remove radio	The removed audio component is no longer required.	AR82.60-P-7502GZ
3.1	Remove cover below dashboard (left)	Left-hand drive vehicle.	AR68.10-P-1500GZ
3.2	Remove cover below dashboard (on right)	Right-hand drive vehicle.	AR68.10-P-1520GZ
4	Remove paneling in left  footwell		AR68.30-P-4010GZ
	Install
5	Retrofit antenna line		AN82.62-P-0001-04GZ
6	Install radio and navigation unit (A2/56)	Connect electrical connector of antenna line to radio and navigation unit (A2/56).	AR82.60-P-7502GZ
7.1	Install cover below instrument panel (left)	Left-hand drive vehicle.	AR68.10-P-1500GZ
7.2	Install cover below instrument panel (right)	Right-hand drive vehicle.	AR68.10-P-1520GZ
8	Install paneling in left  footwell		AR68.30-P-4010GZ
9	Install headliner		AR68.30-P-4300GZ
10	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
11	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (511) Audio 50 APS radio with DVD changer and delete code of the removed audio component. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
12	Perform retrofit variant coding	Listed control units must be SCN coded using the Diagnosis Assistance System: Instrument cluster Audio 50 APS radio and navigation unit (A2/56) with DVD changer.
13	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
14	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Audio 50 APS radio with DVD changer retrofitted as per AN82.61-P-0007GZA " note under field organization texts to design group 82.
15	Perform function test	See operating instructions of the Audio 50 APS radio and navigation unit (A2/56) with DVD changer.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 99 (see EPC)	Audio 50 APS with DVD changer package	1
