Retrofit Audio 50 APS - AN82.61-P-0003GZ

MODEL 164

Illustrated on model 251

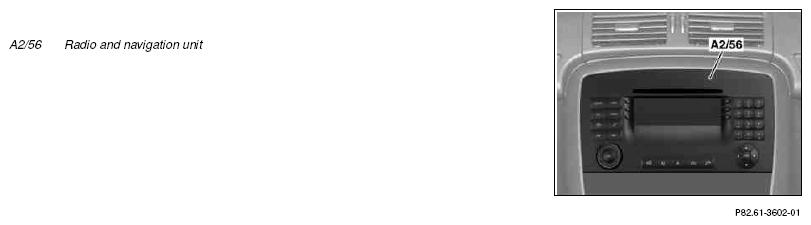

Fig 1: Identifying Radio And Navigation Unit - Shown On Model 251
G10118445Courtesy of MERCEDES-BENZ USA
REMOVING Remove
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Remove headliner   AR68.30-P-4300GZ
2 Remove radio IMPORTANT The removed audio component is no longer required. AR82.60-P-7502GZ
3.1 Remove cover below dashboard (left) IMPORTANT Left-hand drive vehicle. AR68.10-P-1500GZ
3.2 Remove cover below dashboard (on right) IMPORTANT Right-hand drive vehicle. AR68.10-P-1520GZ
4 Remove paneling in left  footwell   AR68.30-P-4010GZ
INSTALLING Install
5 Retrofit antenna line   AN82.62-P-0001-04GZ
6 Install radio and navigation unit (A2/56) IMPORTANT Connect electrical connector of antenna line to radio and navigation unit (A2/56). AR82.60-P-7502GZ
7.1 Install cover below instrument panel (left) IMPORTANT Left-hand drive vehicle. AR68.10-P-1500GZ
7.2 Install cover below instrument panel (right) IMPORTANT Right-hand drive vehicle. AR68.10-P-1520GZ
8 Install paneling in left  footwell   AR68.30-P-4010GZ
9 Install headliner   AR68.30-P-4300GZ
10 Connect STAR DIAGNOSIS   AD00.00-P-2000-04A
11 Enter special equipment on the vehicle data card and the online vehicle data card IMPORTANT Enter code (525) MB Audio 50 APS radio and delete code of removed audio component. ↓
Initial startup of retrofits and modifications AN00.01-P-1001-01V
12 Subsequently perform variant coding with STAR DIAGNOSIS IMPORTANT Listed control units must be SCN coded using the Diagnosis Assistance System:
  • Instrument cluster
  • Audio 50 APS radio and navigation unit (A2/56).

13 Close STAR DIAGNOSIS   AD00.00-P-2000-04A
14 Document retrofitted equipment using vehicle documentation (VeDoc) IMPORTANT Attach "MB Audio 50 APS radio retrofitted as per AN82.61-P-0003GZ " note under field organization texts to design group 82.
15 Perform function test IMPORTANT See operating instructions of Audio 50 APS radio and navigation unit (A2/56).
PARTS ORDERING NOTES

Part no. Designation Quantity
DG 99 (see EPC) Scope of delivery for MB Audio 50 APS radio 1
