Adjust steering knuckle bearing - AR33.25-P-0401A

MODEL 460, 461, 463

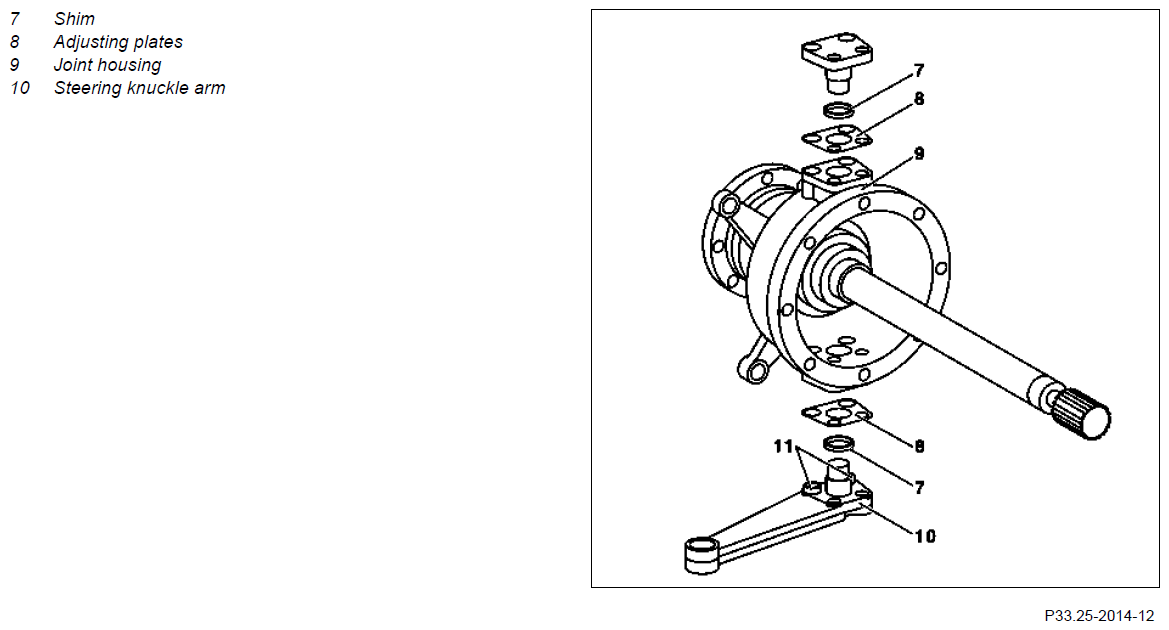

Fig 1: Identifying Shim, Adjusting Plates, Joint Housing And Steering Knuckle Arm

Courtesy of MERCEDES-BENZ USA

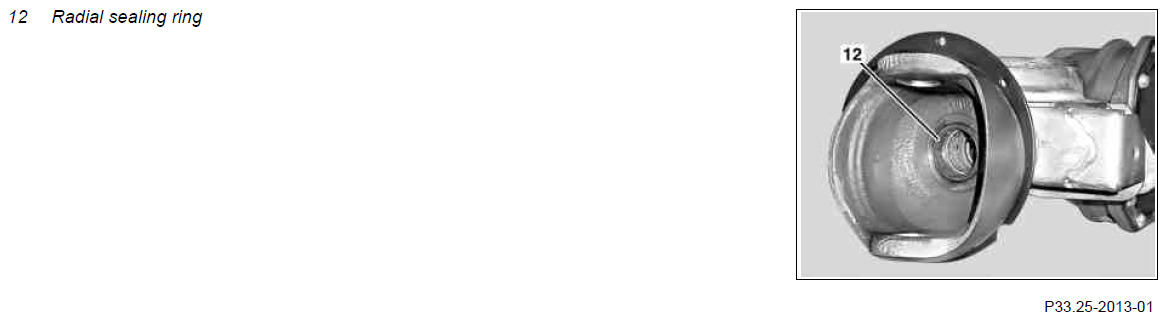

Fig 2: Identifying Radial Sealing Ring

Courtesy of MERCEDES-BENZ USA

	Adjust
1	Check wheel bearing play and adjust if necessary	Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0300GG
		Model 463.270/271, 461.331	AR33.20-P-0300GX
2	Remove joint housing (9) with drive shaft	Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0600A
		Model 463.270/271, 461.331	AR33.20-P-0600GX
3	Check status of tapered roller bearing of steering knuckle bearing	If necessary, install new tapered roller bearing: ↓ Disassemble and assembly joint housing
		Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0601GG
		Model 463.270/271, 461.331	AR33.20-P-0601GX
4	Check condition of drive shaft	Steering knuckle bearing must be adjusted with a zero clearance or new drive shaft. If necessary: ↓ Remove/install front axle drive shaft
		Model 460, 461, 463, except model 463.270/271, 461.331	AR33.30-P-0100A
		Model 463.270/271, 461.331	AR33.30-P-0100GX
5	Slide pilot bushing onto drive shaft race	It must be possible to slide the pilot bushing onto the race of the drive shaft without any play
		Guide sleeves	Figure
6	Remove radial sealing ring (12) from axle tube	Disassemble joint housing (9) to do this: ↓
		Disassemble and assembly joint housing Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0601GG
		Model 463.270/271, 461.331	AR33.20-P-0601GX
7	Determine thickness of shims (7) and adjusting plates (8).		AR33.25-P-0208-01A
		Guide sleeves	Figure
		C-clamp	Figure
		Adjusting rings	Figure
8	Remove pilot bushing from special tool set from drive shaft	Guide sleeves	Figure
9	Install radial sealing ring (12) in axle tube.	Assemble joint housing (9) to do this: ↓ Disassemble and assembly joint housing
		Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0601GG
		Model 463.270/271, 461.331	AR33.20-P-0601GX
10	Install joint housing (9) with drive shaft	Model 460, 461, 463, except model 463.270/271, 461.331	AR33.20-P-0600A
		Model 463.270/271, 461.331	AR33.20-P-0600GX

Fig 3: Identifying Adjusting Rings (463 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Guide Sleeves (460 589 01 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying C-Clamp (460 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
