Remove/install joint housing with drive shaft - AR33.20-P-0600GX

MODEL 463.270 /271, 461.331

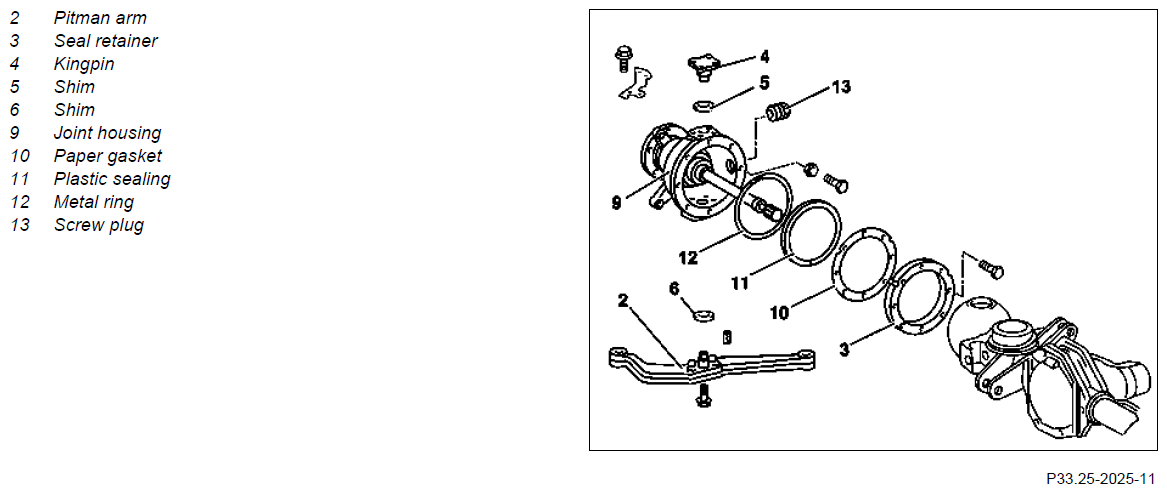

Fig 1: Identifying Joint Housing With Drive Shaft Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

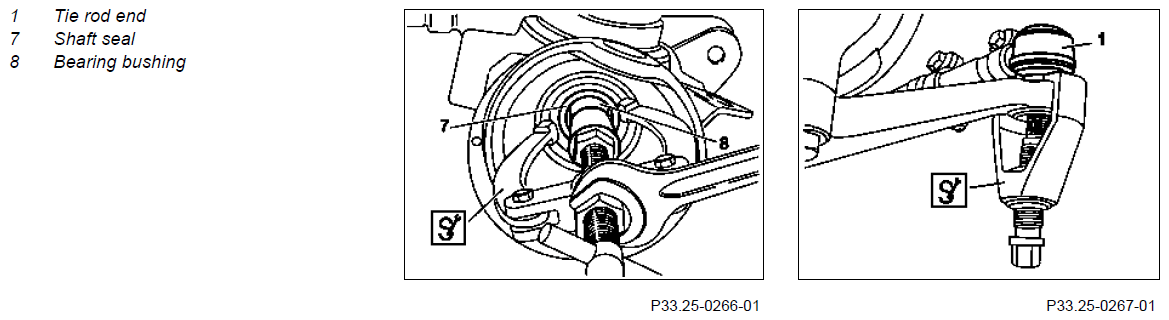

Fig 2: Identifying Joint Housing With Drive Shaft Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

6.3.09

Value modified: Multipurpose grease

*BF33.20-P-1001-02A

	Removing
1	Remove brake disc	Model 463.270/271	AR42.10-P-0220GX
		Model 461.331	AR42.10-P-0220GG
2	Unscrew castle nut from tie rod
3	Pry off tie rod end (1)	Puller	Figure
4	Detach drag link from track lever and pitman arm (2).	Only if right joint housing (9) is removed.
5	Detach seal retainer (3)	Before removal, measure how far the stop screw for the wheel angle is screwed in and screw in this stop screw to the corresponding value when installing again.
6	Detach top kingbolt (4)	Fasten shims (5) to kingbolt (4) and do not mix them up, as otherwise the pretension for the steering knuckle bearing will have to be reset.
7	Detach track lever and pitman arm (2) at bottom.	Fasten shims (6) to track lever and pitman arm (2) and do not mix them up, as otherwise the pretension for the steering knuckle bearing will have to be reset.
8	Remove joint housing (9) with drive shaft	Fasten kingpin bearing to relevant kingpin (4) and track lever and pitman arm (2).
9	Remove plastic sealing (11)
10	Remove shaft seal (7)	Internal extractor	Fig 3
		Countersupport	Fig 4
11	Remove bearing bushing (8)	Internal extractor	Fig 3
		Countersupport	Fig 4
	Install
12	Install bearing bushing (8)
13	Smear new shaft seal (7) with multipurpose grease and drive in flush	Drift	Fig 5
		MB multipurpose grease	*BR00.45-Z-1017-06A
14	Install new plastic seal (11).
15	Install joint housing (9) with drive shaft	Beforehand install respective tapered roller bearing and sealing rings for the kingpin (4) and track lever and pitman arm (2) in the axle tube.
		Lubricate tapered roller bearing with multipurpose grease.	*BR00.45-Z-1017-06A
16	Adjust steering knuckle bearing	The adjustment need only be carried out if either the axle housing, joint housing (9) or kingpin (4) have been replaced or the shims (5) or shims (6) have been mixed up or lost.	AR33.25-P-0401A
17	Install top kingbolt (4)	Use relevant shims (5).
			*BA33.20-P-1003-01C
18	Install track lever and pitman arm (2) at bottom.	Use relevant shims (6).
			*BA33.20-P-1002-01C
19	Attach drag link at track lever and pitman arm (2).	Only if right joint housing (9) is installed.
			*BA46.40-P-1001-04B
20	Insert metal ring (12) in joint housing (9)
21	Attach seal retainer (3) to joint housing (9)	Renew paper sealing (10).
			*BA33.20-P-1008-01C
22	Pack joint housing (9) with multipurpose grease	Multipurpose grease	*BF33.20-P-1001-02A
		MB multipurpose grease	*BR00.45-Z-1017-06A
23	Screw in screw plug (13).		*BA33.20-P-1001-01C
24	Install brake disk	Model 463.270/271	AR42.10-P-0220GX
		Model 461.331	AR42.10-P-0220GG
25	Attach tie rod end (1) and secure castle nut using cotter pin.	Check tie rod end (1) for rust attack by lifting the boot; check ball heads for play and replace if necessary. Before installing, grease stem of the ball stud and bore in the track lever and pitman arm (2).
			*BA33.15-P-1006-01A
		MB multipurpose grease	*BR00.45-Z-1017-06A
	Checking
26	Check toe-in at front axle and adjust if necessary		AR40.20-P-0323GG
27	Measure wheel angle and adjust if necessary	Screw in stop screw to measured value.	AR40.20-P-0345AC

TRAILING ARMS, WISHBONES

Number	Designation		Model 460, 461, 463
BA33.15-P-1006-01A	Nut, tie rod to track arm	Nm	140

WHEEL LOCATION, HUB

Number	Designation		Model 460, 461, 463
BA33.20-P-1001-01C	Joint housing screw plug	Nm	100
BA33.20-P-1002-01C	Bolt, steering knuckle arm to joint housing	Nm	280
BA33.20-P-1003-01C	Bolt, kingbolt to joint housing	Nm	190
BA33.20-P-1008-01C	Bolt, seal retainer to joint housing	Nm	25

DRAG LINK

Number	Designation		Model 460, 461, 463
BA46.40-P-1001-04B	Castle nut, drag link to pitman arm	Nm	140

JOINT HOUSING

Number	Designation			Model 460, 461, 463
BF33.20-P-1001-02A	Multipurpose grease	Filling capacity	g	500
		Specifications for Operating Fluids	Sheet	BB00.40-P-0267-01A

Fig 3: Identifying Internal Puller (000 589 29 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Counter Stay (000 589 34 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Drift (460 589 18 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Puller (601 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1017-06A	MB multipurpose grease	A 001 989 34 51 11
