Remove/install side trunk paneling - AR68.30-P-4800V
MODEL 171.4
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove retractable partition | AR68.50-P-3000V | |
| 2 | Remove paneling from rear end center assembly | AR68.30-P-4785V | |
| 3 | Actuate trunk partition closed limit switch (S69/10) in direction of arrow and fasten at this point with strips of adhesive tape | ||
| 4 | Remove expanding clips (2) | ||
| Risk of injury to fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 5 | Position trunk lid in assembly position. | AR88.50-P-5000-01V | |
In event of malfunction close Vario roof mechanically, see: ↓ |

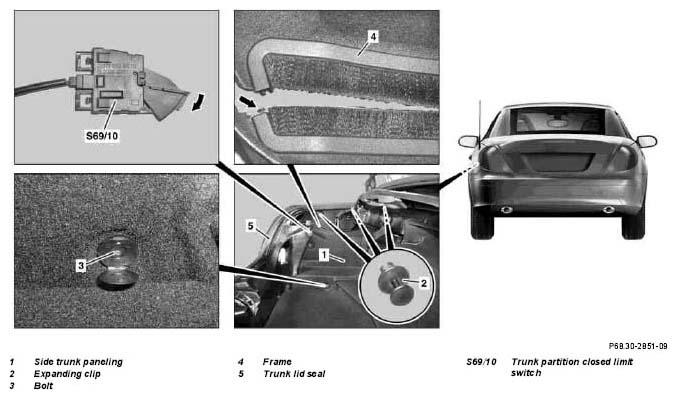

Fig 2 | ||
| Close Vario roof manually | AR77.30-P-6235V | ||
| 6 | Open bolt cover (3) with suitable screwdriver and unscrew bolt (3) | ||
| 7 | Open frame (4) and loosen side trunk paneling (1) from trunk lid seal (5) | ||
| 8 | Lift frame (4) at fender side and pull side trunk paneling (1) toward rear until the side trunk paneling (1) is detached from the mount of the partition | ||
| 9 | Pivot side trunk paneling (1) toward inside in the front area and remove from trunk | ||
| 10 | Install in the reverse order |
