Remove/install retractable trunk partition - AR68.50-P-3000V

MODEL 171.4

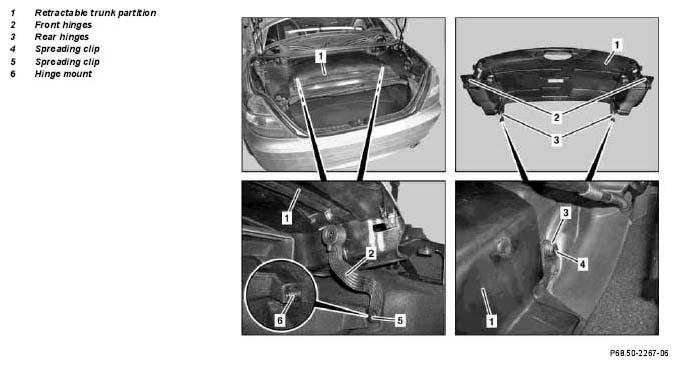

Fig 1: Identifying Retractable Trunk Partition Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open trunk lid
2	Remove spreading clip (4) from left and right rear hinge (3)	Installation:  Replace damaged spreading clips (4).
3	Open retractable trunk partition (1)	See Operating Instructions
4	Remove spreading clip (5) from left and right front hinge (2)	Installation:  Replace damaged spreading clips (5).
5	Lightly press front hinge (2) toward inside and detach from hinge mounts (6)
6	Remove retractable trunk partition (1) from trunk
7	Install in the reverse order
