Remove/install paneling on rear center section - AR68.30-P-4785V

MODEL 171.4

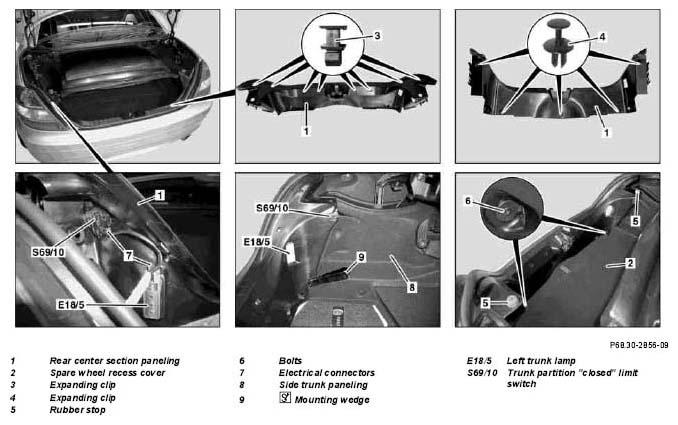

Fig 1: Identifying Paneling On Rear Center Section Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open trunk lid
2	Remove spare wheel recess cover (2) from trunk
3	Remove expanding clips (3)	Pliers Dismantle rear clip Installation:  Replace damaged expanding clips (3).	*WH58.30-Z-1026-02A
4	Remove expanding clips (4)	Installation:  Replace damaged expanding clips (4).
5	Remove rubber stops (5)	Installation:  Replace damaged rubber stops (5).
6	Open bolt covers (6) with suitable screwdriver and unscrew bolts (6)
7	Loosen rear center section paneling (12) from left and right side trunk paneling (8) with mounting wedge (9)		Figure
		Installation:  Observe installation position of rear center section paneling (1) in left and right side trunk paneling (8)
8	Unclip left trunk lamp (E18/5) from rear center section paneling (1) toward front and guide through opening in rear center section paneling (1)	Do not disconnect electrical connector on left trunk lamp (E18/5).
9	Unclip trunk partition closed limit switch (S69/10) from rear center section paneling (1)	Do not disconnect electrical connector from trunk partition closed limit switch (S69/10).
10	Remove rear center section paneling (1) from rear center section
11	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1026-02A	Pliers for disassembling rear clip, Firma Wagenbrett D-28329 Bremen
