Remove/install brake disc - AR42.10-P-0220GZ

MODEL 164, 166

MODIFICATION NOTES

29.11.11

Long-life grease repair materials replaced by hot-grease paste

Operation step 7

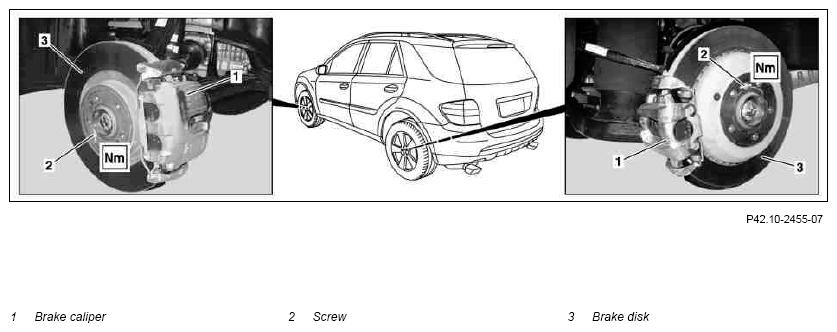

Fig 1: Identifying Brake Disc Remove/Install Components - Shown On Model 164

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Release parking brake	Only if removing brake disk (3) at the rear axle.
2.1	Remove brake caliper or brake caliper support from steering knuckle or hub/rotor assembly	MODEL 166 Only when removing brake disk (3) at front axle
		MODEL 166	AR42.10-P-0080W
		MODEL 164	AR42.10-P-0080GZ
			AR42.10-P-0070GZ
		Do not kink brake hose or subject it to tension and fasten brake caliper (1) free of tension at vehicle. Otherwise the brake hose will be damaged. Do not detach brake hose at brake caliper (1).
2.2	Remove brake linings	MODEL 166 Only when removing brake disk (3) at rear axle
		MODEL 166	AR42.10-P-1700W
3	Move back parking brake at adjusting mechanism	MODEL 164
		Adjust parking brake If the parking brake drums are run in, turn back parking brake adjuster first. Otherwise the parking brake shoes may be damaged.	AR42.20-P-0540GZ
4	Remove screw/bolt (2) and remove brake disk (3)	Replace bolt (2).
		Model 164, 166	*BA42.10-P-1001-13B
		Model 164, 166	*BA42.10-P-1001-11A
	Check
5	Check brake disk (3)
		MODEL 164	AP42.10-P-4258GZ
		MODEL 166 Check for wear and check condition, replace solely in pairs if necessary.	AP42.10-P-4258GQ
6	Check parking brake shoes	MODEL 164 Only if removing brake disk (3) on rear axle Check condition and lining thickness, if necessary: ↓ Replace parking brake brake shoes
			AR42.20-P-0530GZ
	Clean
7	Clean contact surfaces and interference fit of brake disk (3)
8	Lightly grease seat of brake disk (3)	Paste, hot lubrication 1 kg, DB supply specification 6879.20	*BR00.45-Z-1005-06A
9	Install in the reverse order
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
10	Operate the brake pedal several times until brake linings make contact with the brake disks (3)	Firm resistance should be noticeable at the brake pedal.
11	Check fluid level in the brake fluid reservoir, correct if necessary
			AP42.10-P-4210GZ
12	Adjust parking brake	MODEL 164
			AR42.20-P-0540GZ
13	Check function and effectiveness of brake system
			AP42.00-P-4290BA

FRONT AXLE BRAKE DISKS

Number	Designation		MODEL 164.1/8	MODEL 166
BA42.10-P-1001-11A	Locking screw, brake disk to front axle	Nm	10	10

REAR AXLE BRAKE DISKS

Number	Designation		MODEL 164.1/8	MODEL 166
BA42.10-P-1001-13B	Locking screw, brake disk to rear axle	Nm	10	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
