Remove/install rear axle brake caliper - AR42.10-P-0080GZ
MODEL 164
Shown on model 164.175 with airmatic (air suspension with level adjustment and adaptive damping system ADS), code 489
MODIFICATION NOTES
| 18.1.06 | Self-locking bolt of floating caliper to wheel carrier Brake line to floating brake caliper | *BA42.10-P-1001-04J |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| Notes on installing brake hoses | AH42.10-P-9406-01GZ | ||
| 1 | Lift/jack up vehicle | AR00.60-P-1000GZ | |
| 2 | Remove rear wheels | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||

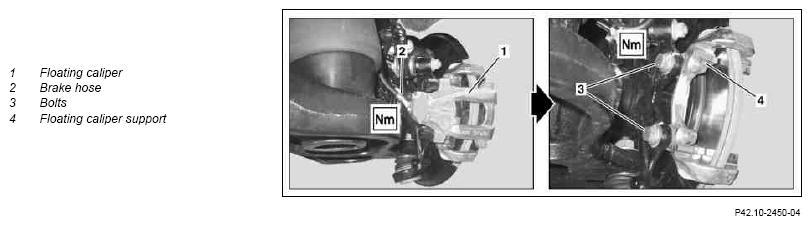

| 3 | Remove brake pads from floating brake caliper (1) | AR42.10-P-0160GZ | |
| 4 | Detach brake hose (2) from floating brake caliper (1) | ||
| *BA42.10-P-1001-04J | |||
| Figure | |||
| 5 | Remove floating brake caliper (1) | ||
| 6 | Remove bolts (3) and remove floating caliper carrier (4) | ||
| *BA42.10-P-1002-12L | |||
| 7 | Install in the reverse order | ||
| 8 | Bleed brake system | AR42.10-P-0010GZ |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA42.10-P-1001-04J | Brake hose to brake caliper | Nm | 22 |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 164 | ||
|---|---|---|---|---|
| BA42.10-P-1002-12L | Self-locking bolt, brake caliper to steering knuckle | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 45 | ||
