Remove/install front axle brake caliper - AR42.10-P-0070GZ
MODEL 164, 166

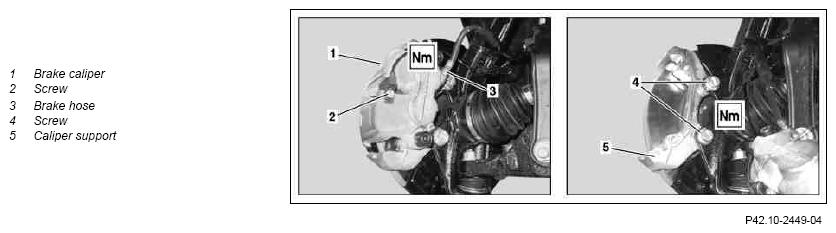

Shown: model 164.175

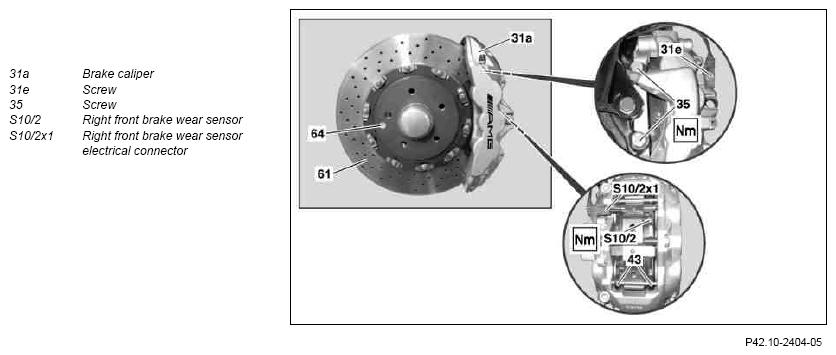

Illustration shows model 166.074
| Remove/install | |||
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove front wheel-and-tire assemblies | ||
| MODEL 164 | AP40.10-P-4050Z | ||
| MODEL 166 | AP40.10-P-4050EW | ||
| 2.1 | Remove bolt (2) and detach the electrical connector of the brake pad contact sensor from brake caliper (1) | MODEL 164, 166 (except 166.074/874) If installed. | |
| *BA42.10-P-1004-10L | |||
| 2.2 | Remove bolt (31e) and disconnect right front brake wear sensor electrical connector (S10/2x1) from right front brake wear sensor (S10/2) | MODEL 166.074/874 | |
MODEL 166.074/874 |
*BA42.10-P-1004-10L | ||
| 3 | Remove brake pads | MODEL 164 | AR42.10-P-0160GZ |
| MODEL 166.074/874 | AR42.10-P-1610GQA | ||
| MODEL 166 (except 166.074/874) | AR42.10-P-1600GQ | ||
| 4 | Detach brake hose | MODEL 164, 166 | AR42.10-P-0013GZ |
| 5.1 | Unscrew bolts (4) from brake caliper support (5) and remove | MODEL 164, 166 (except 166.074/874) If necessary |
|
| *BA42.10-P-1003-10L | |||
| 5.2 | Remove bolts (35) and remove brake caliper (31a) | MODEL 166.074/874 |
|
MODEL 166.074/874 |
*BA42.10-P-1003-10L | ||
| 6 | Install in the reverse order | ||
| 7 | Bleed brake system | MODEL 164 | AR42.10-P-0010GZ |
| MODEL 166 | AR42.10-P-0010CW |
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 164 (except 164.177) | MODEL 164.177 | ||
|---|---|---|---|---|---|
| BA42.10-P-1003-10L | Self-locking bolt, brake caliper support to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 166 (except 166.074/874) | MODEL 166.074/874 | ||
|---|---|---|---|---|---|
| BA42.10-P-1003-10L | Self-locking bolt, brake caliper support to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 164 (except 164.177) | MODEL 164.177 | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-10L | Screw/bolt, brake pad contact sensor to brake caliper | M6 | Nm | 8 | 8 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 166 (except 166.074/874) | MODEL 166.074/874 | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-10L | Screw/bolt, brake pad contact sensor to brake caliper | M6 | Nm | 8 | 8 |
