Brake system - inspect fluid level - AP42.10-P-4210GZ

MODEL 164, 166

Shows model 164

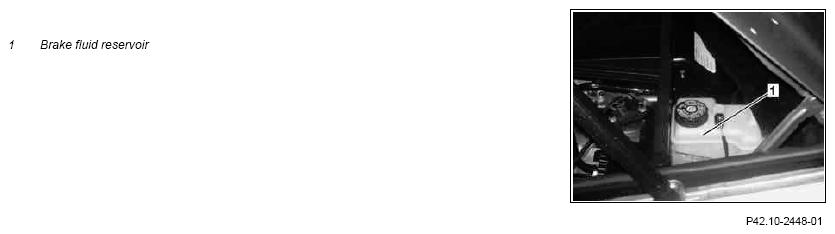

Fig 1: Identifying Expansion Reservoir - Shows Model 164

G09982446

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Open engine hood and raise to vertical position	Model 164	AR88.40-P-1000GZ
1	Open engine hood and raise to vertical position	Model 166	AR88.40-P-1000GQ
2	Remove cover over left suspension strut tower	Model 166
3	Check fluid level in brake fluid reservoir (1)	The fluid level must be between the "MIN" and "MAX" markings on the brake fluid reservoir (1). If fluid level is too high, extract brake fluid down to "MAX" marking. If the fluid level is too low, determine cause and rectify subject to a separate invoice.
3	Check fluid level in brake fluid reservoir (1)		*BF42.10-P-1001-01G
4	Install cover over left suspension strut tower	Model 166
5	Close engine hood	Model 164	AR88.40-P-1000GZ
5	Close engine hood	Model 166	AR88.40-P-1000GQ

BRAKE FLUID

Number	Designation			Model 164.1/8	Model 166
BF42.10-P-1001-01G	Brake fluid	Filling capacity	Liters	≈0, 8	≈0, 8
		Specifications for Operating Fluids	Specification	DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)	DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1)
		Specifications for Operating Fluids	Specification	MB 331.0 brake fluid A 000 989 08 07	MB 331.0 brake fluid A 000 989 08 07
