Overview Of System Components, Telematics - GF82.85-P-9999CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3/9

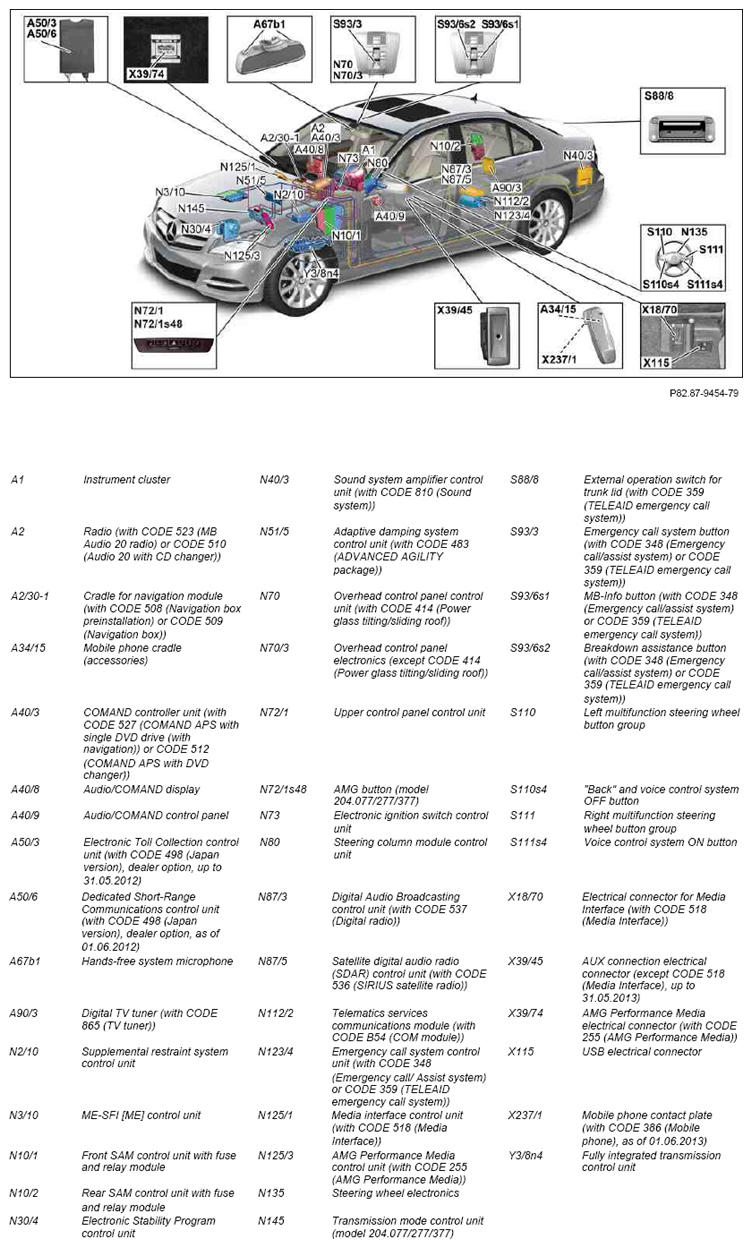

Fig 1: Telematics System Components Overview - Shown On Model 204.3/9
G09984119Courtesy of MERCEDES-BENZ USA

Model 204.0 as of 01.03.2011, except telematics antenna system and speaker system

Fig 2: Telematics System Components Overview - Shown On Model 204.0
G09984120Courtesy of MERCEDES-BENZ USA

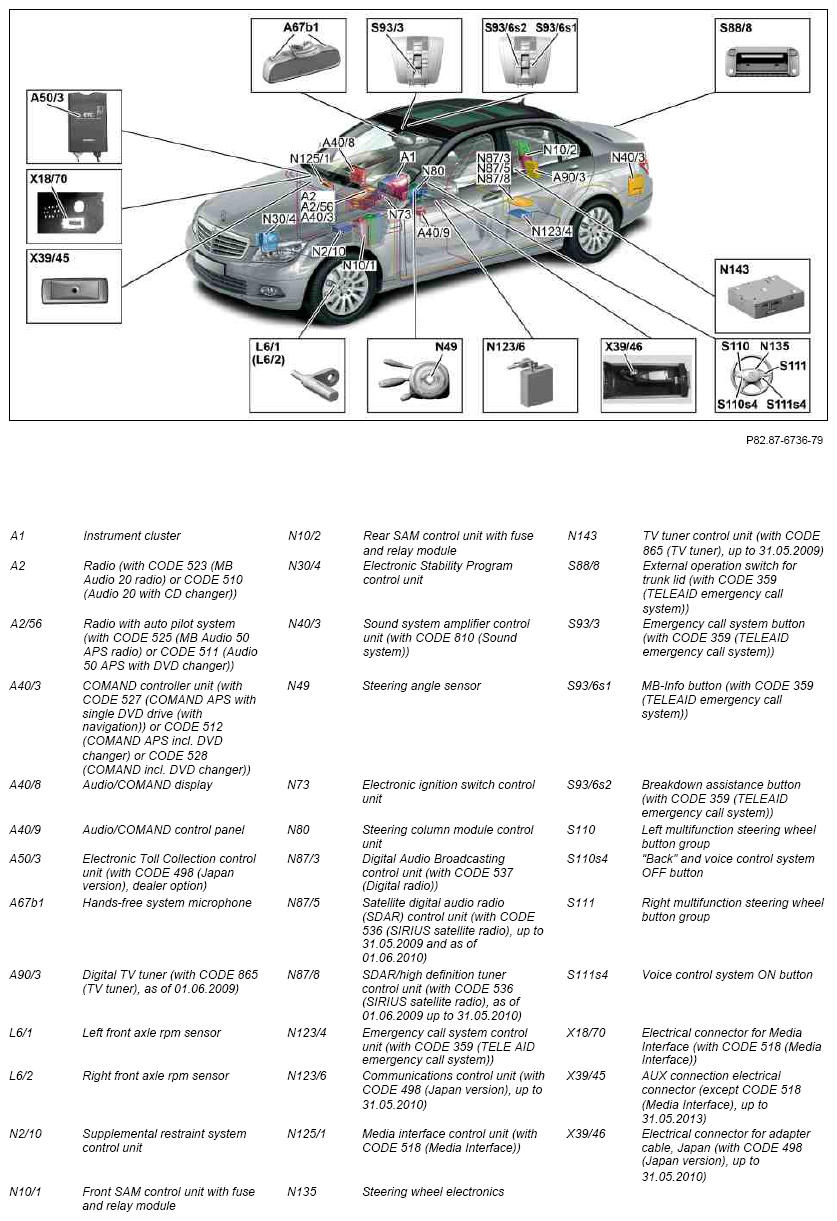

Model 204.0 up to 28.02.2011, except telematics antenna system and speaker system

Fig 3: Telematics System Components Overview - Shown On Model 204.0
G09984121Courtesy of MERCEDES-BENZ USA

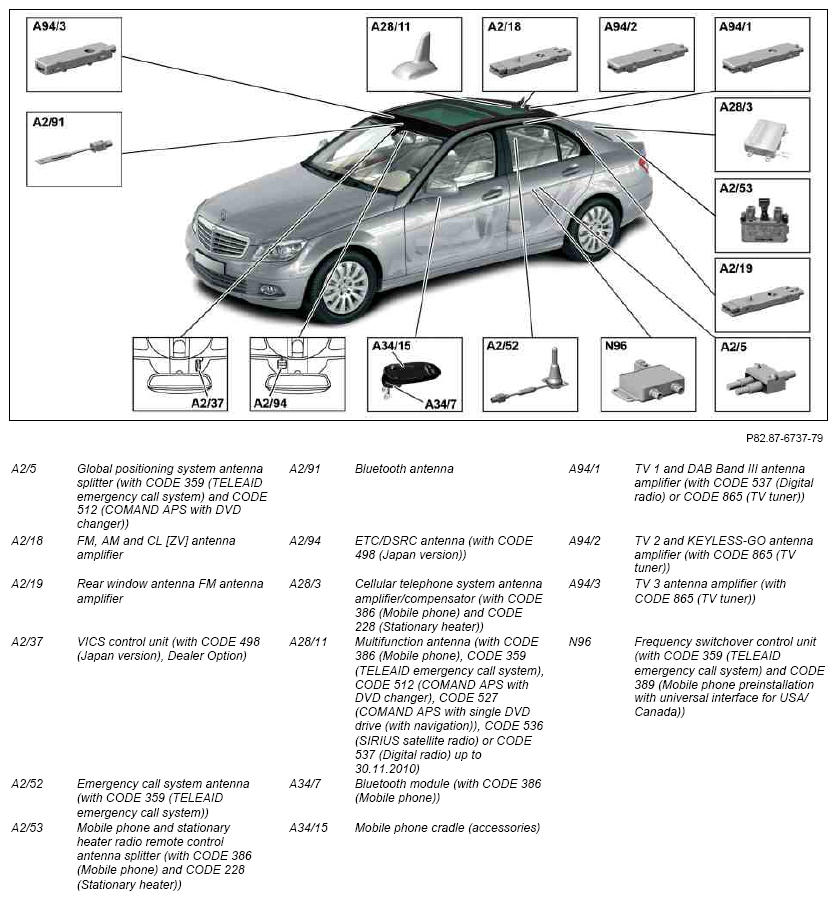

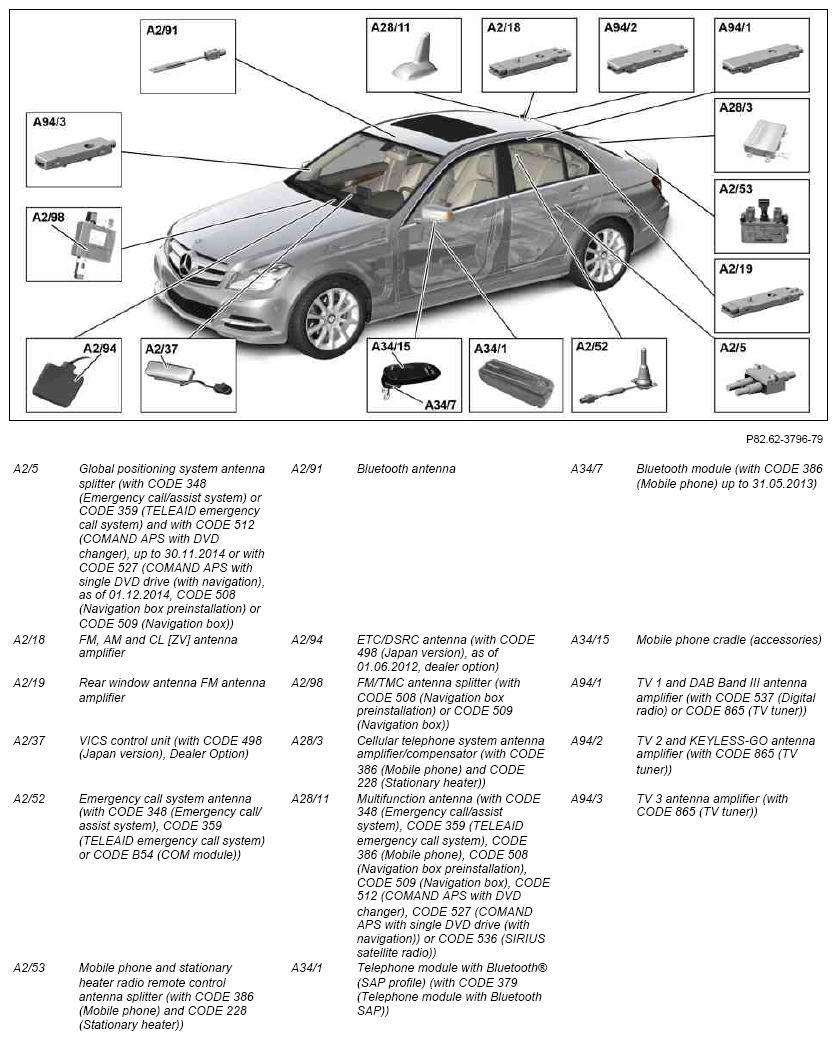

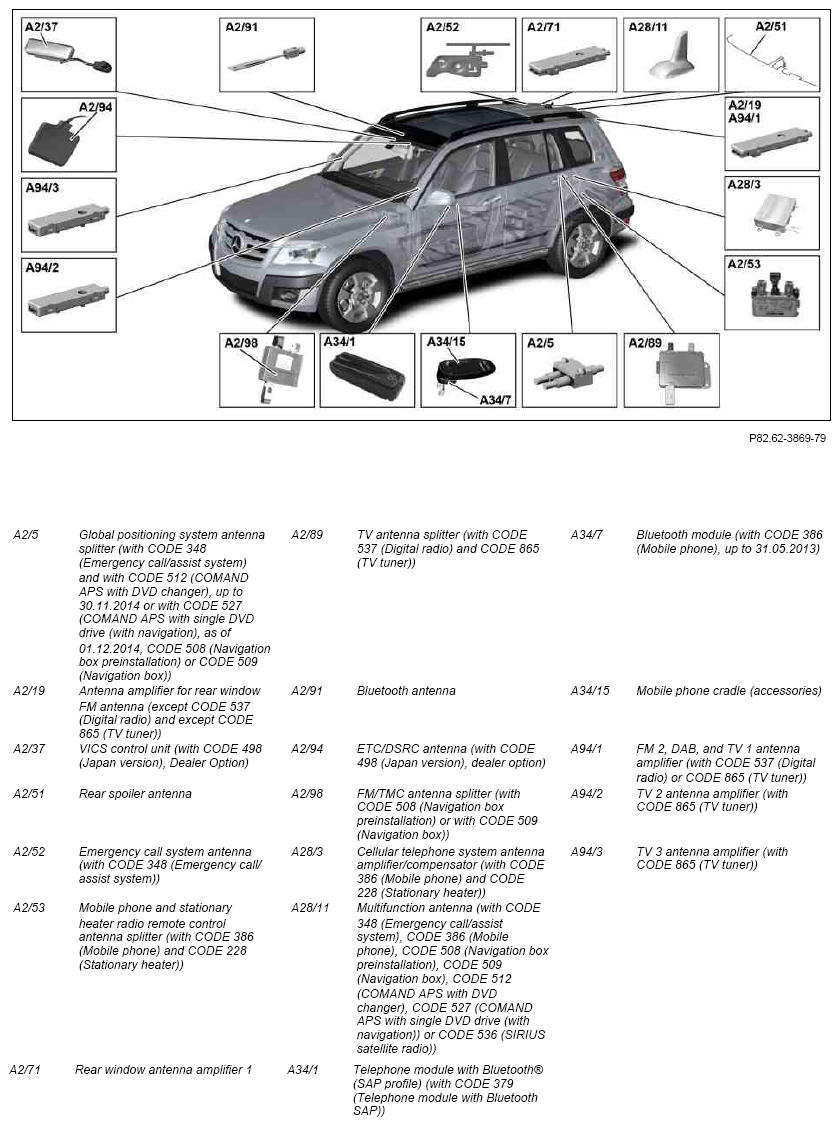

Model 204.0 as of 01.03.2011, telematics antenna system

Fig 4: Telematics System Components - Shown On Model 204.0
G09984122Courtesy of MERCEDES-BENZ USA

Model 204.0 up to 28.02.2011, telematics antenna system

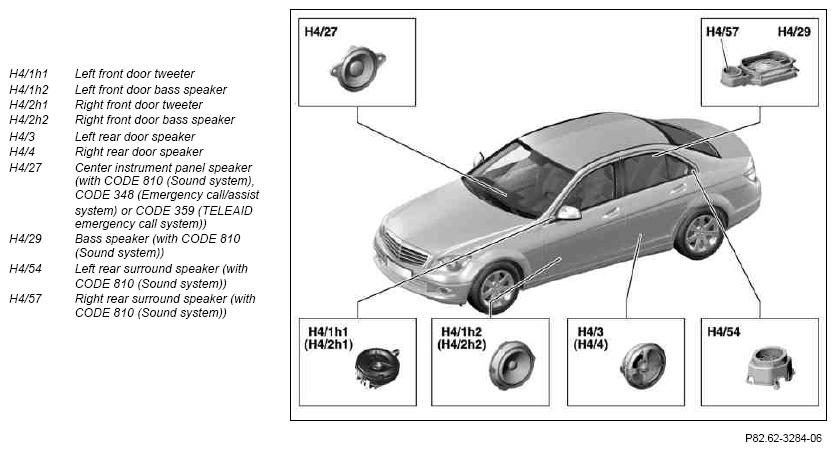

Model 204.0, speaker system

Fig 5: Telematics System Components Overview - Shown On Model 204.0 (1 Of 2)
G09984123Courtesy of MERCEDES-BENZ USA
Fig 6: Telematics System Components Overview - Shown On Model 204.0 (2 Of 2)
G09984124Courtesy of MERCEDES-BENZ USA

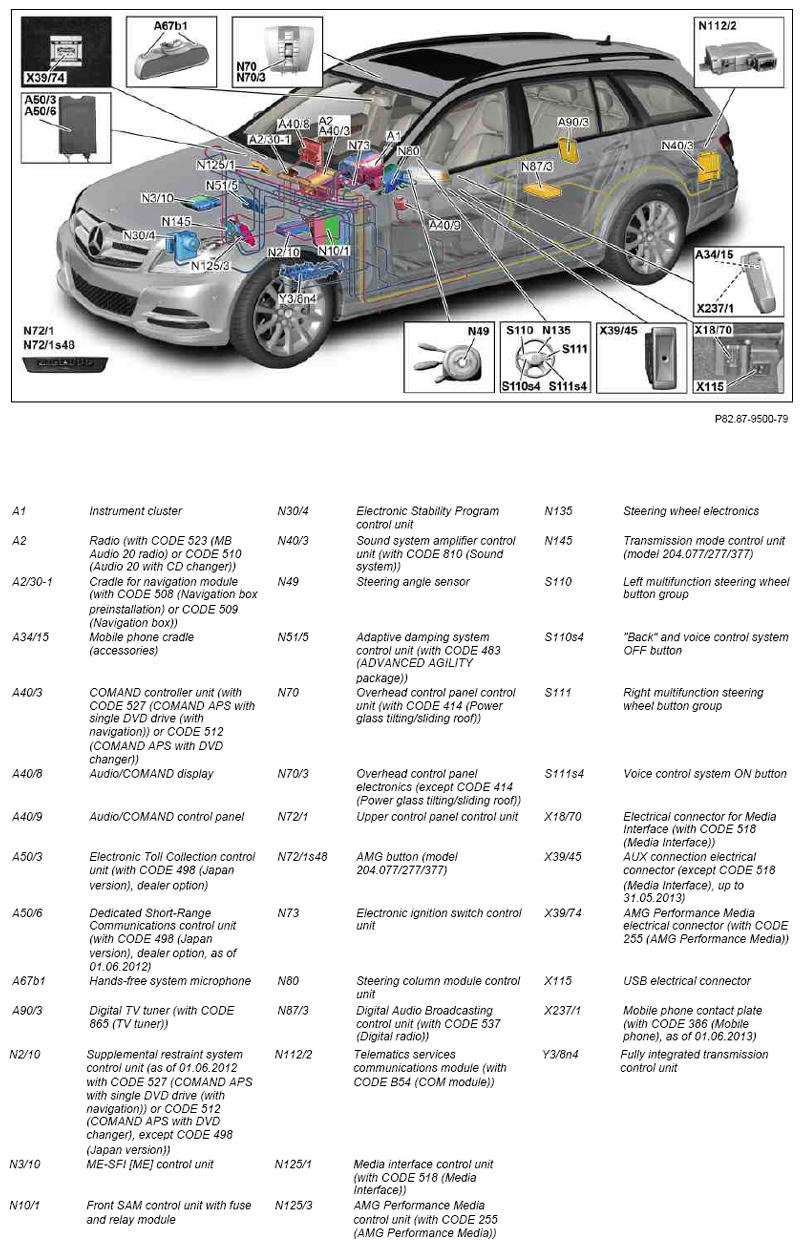

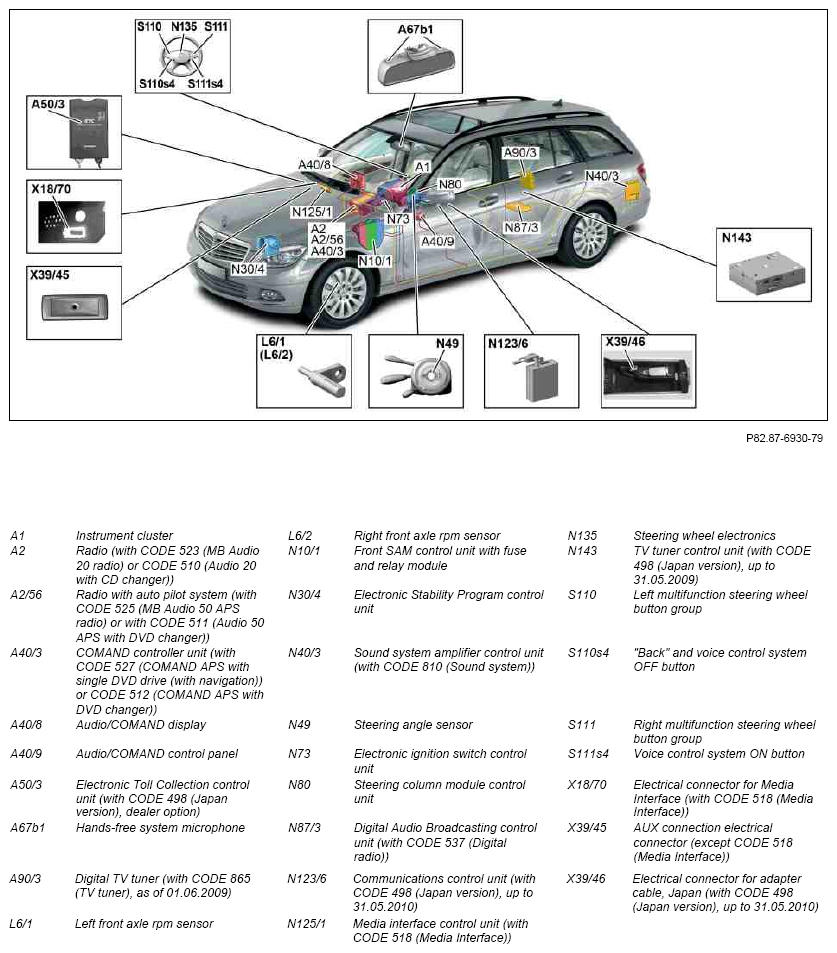

Model 204.2 as of 01.03.2011, except telematics antenna system and speaker system

Fig 7: Telematics System Components Overview - Shown On Model 204.2
G09984125Courtesy of MERCEDES-BENZ USA

Model 204.2 up to 28.02.2011, except telematics antenna system and speaker system

Fig 8: Telematics System Components Overview - Shown On Model 204.2
G09984126Courtesy of MERCEDES-BENZ USA

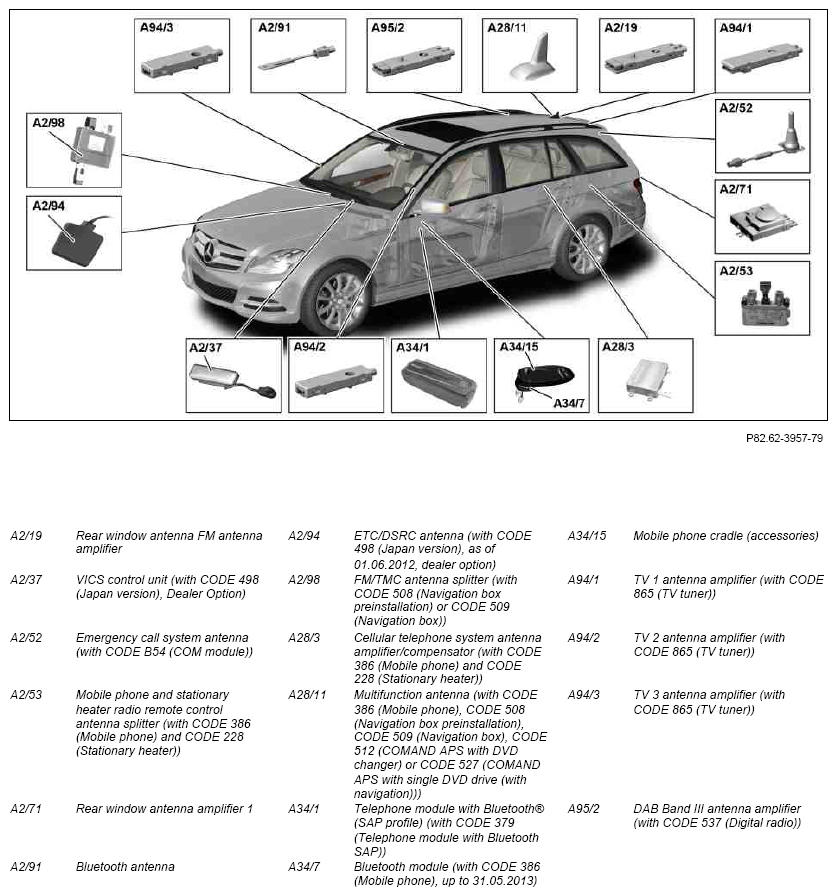

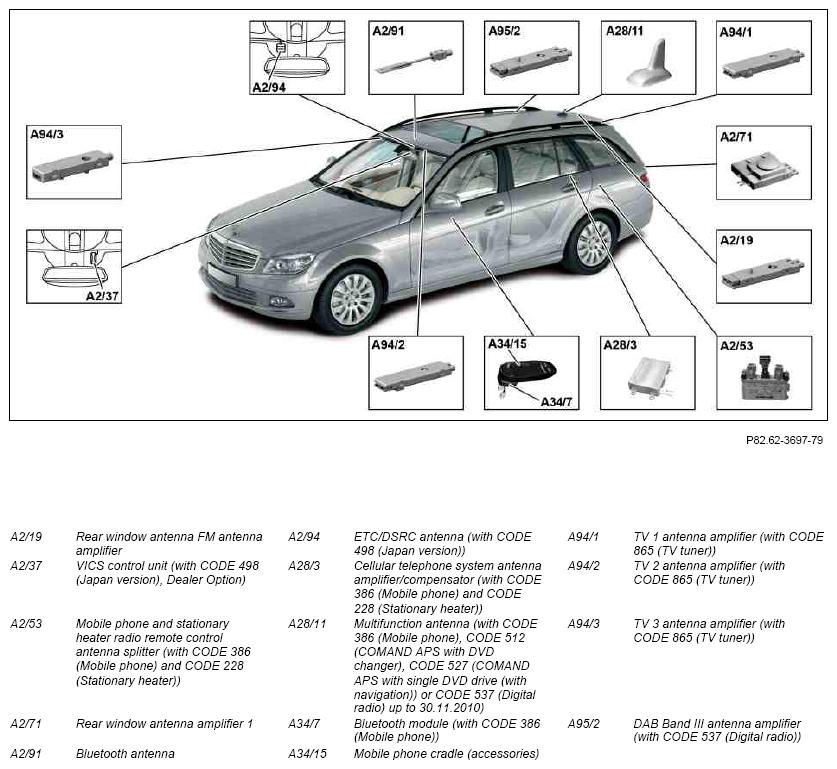

Model 204.2 as of 01.03.2011, telematics antenna system

Fig 9: Telematics System Components Overview - Shown On Model 204.2
G09984127Courtesy of MERCEDES-BENZ USA

Model 204.2 up to 28.02.2011, telematics antenna system

Model 204.2, speaker system

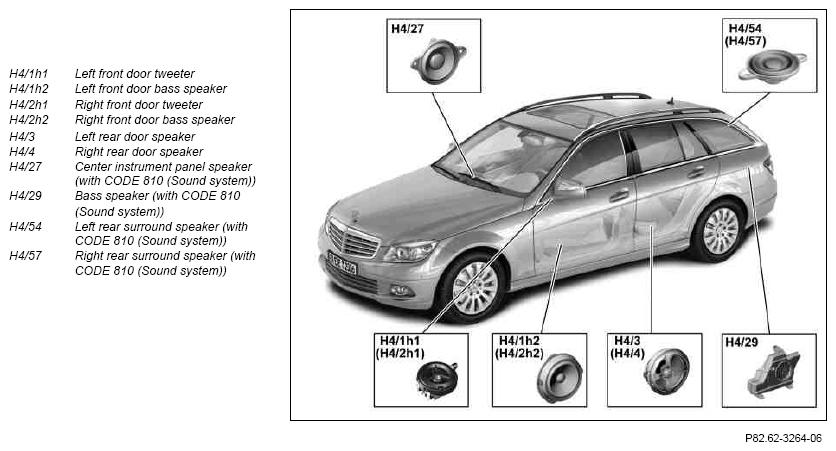

Fig 10: Telematics System Components Overview - Shown On Model 204.2 (1 Of 2)
G09984128Courtesy of MERCEDES-BENZ USA

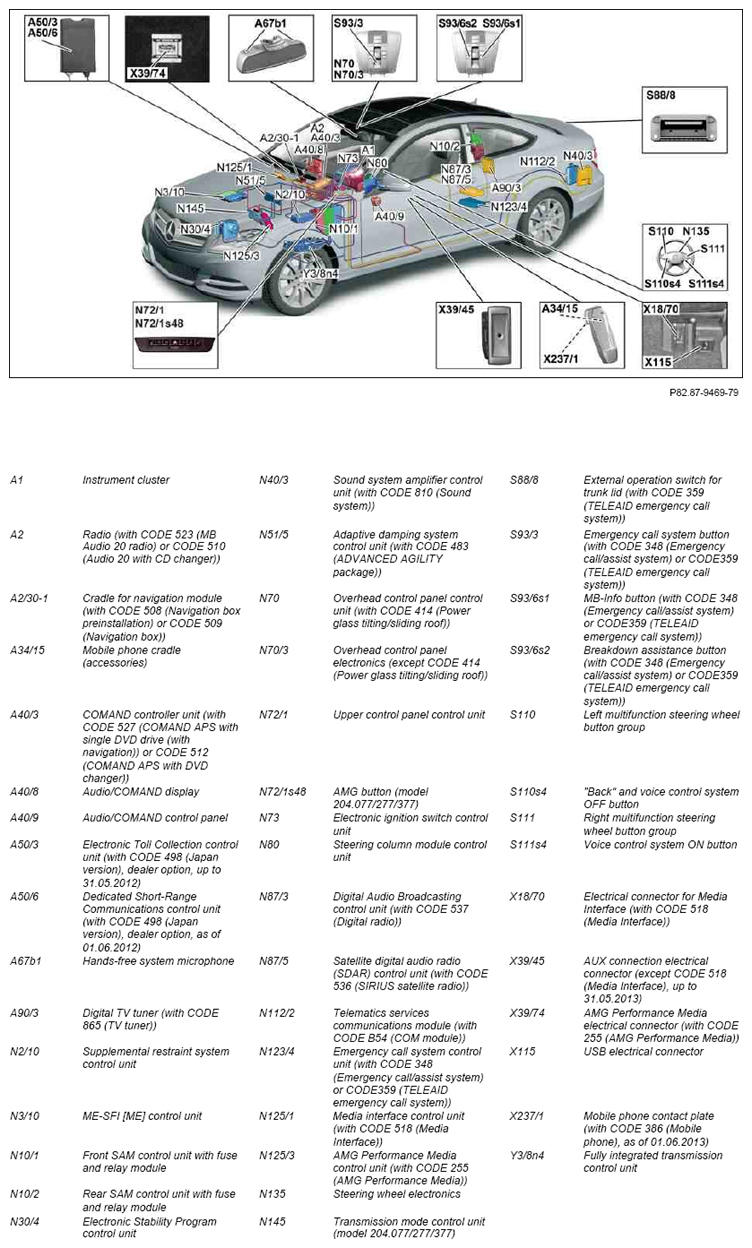

Fig 11: Telematics System Components Overview - Shown On Model 204.2 (2 Of 2)
G09984129Courtesy of MERCEDES-BENZ USA

Model 204.3, except telematics antenna system and speaker system

Fig 12: Telematics System Components Overview - Shown On Model 204.3
G09984130Courtesy of MERCEDES-BENZ USA

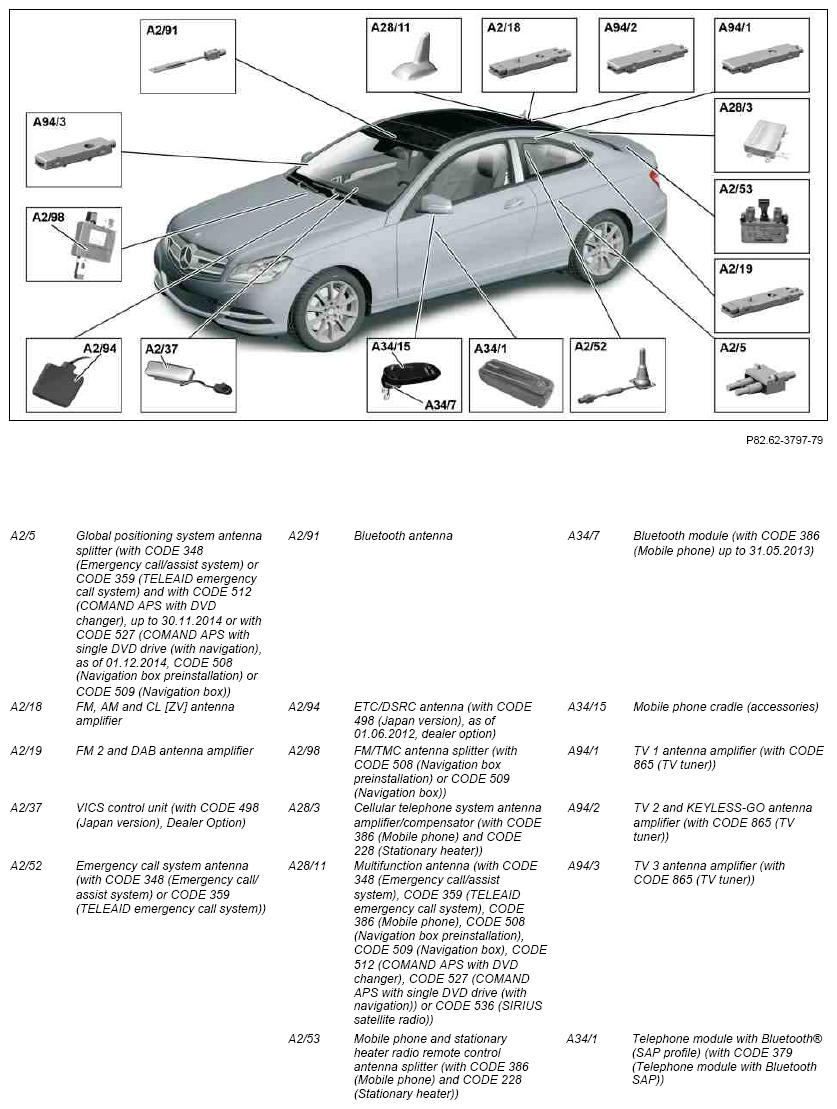

Model 204.3, telematics antenna system

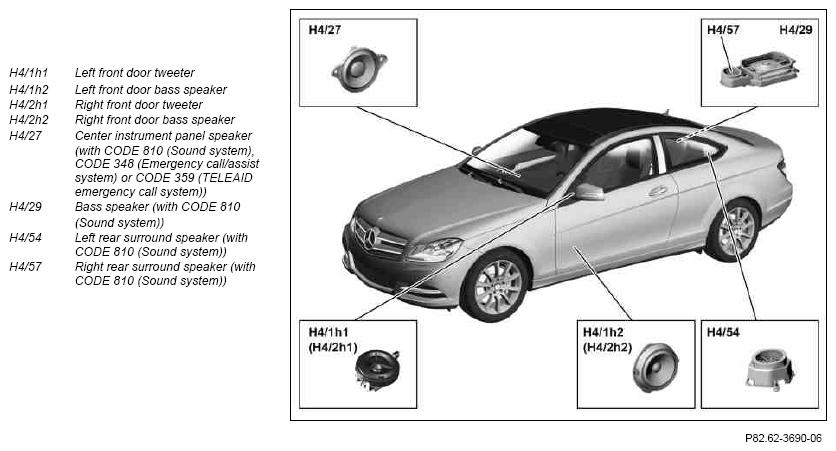

Model 204.3, speaker system

Fig 13: Telematics System Components Overview - Shown On Model 204.3 (1 Of 2)
G09984131Courtesy of MERCEDES-BENZ USA

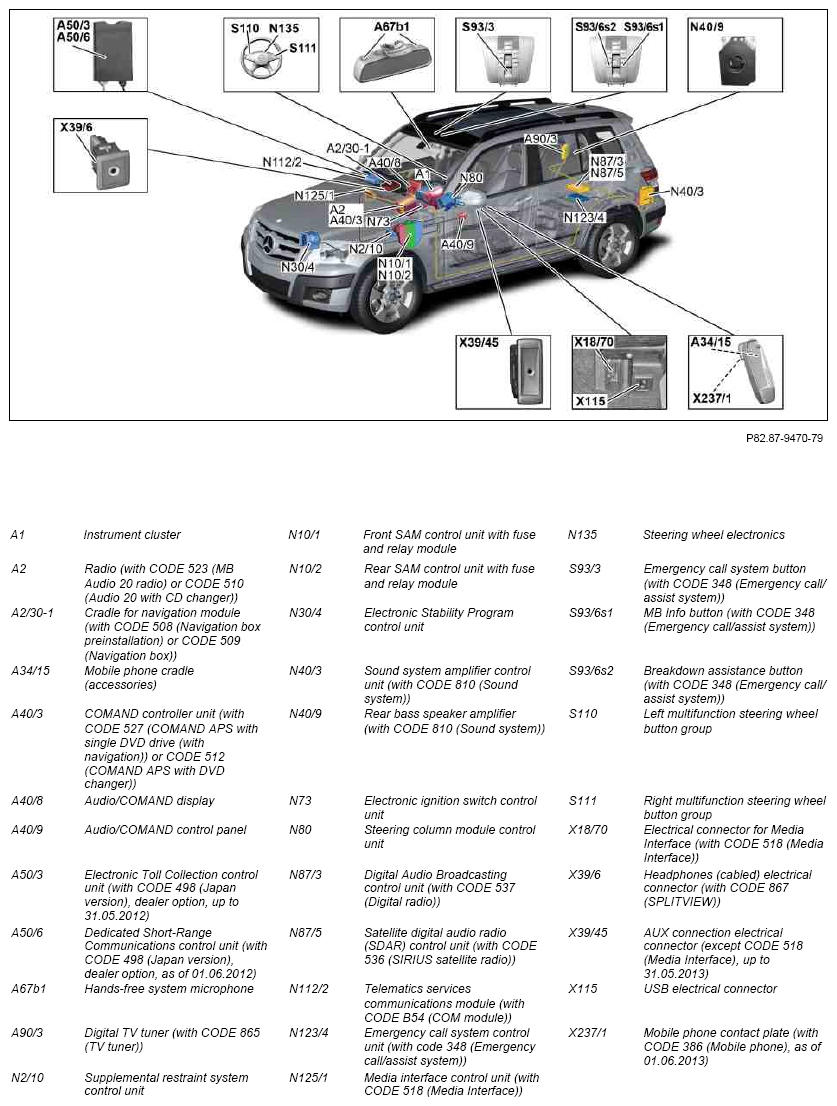

Fig 14: Telematics System Components Overview - Shown On Model 204.3 (2 Of 2)
G09984132Courtesy of MERCEDES-BENZ USA

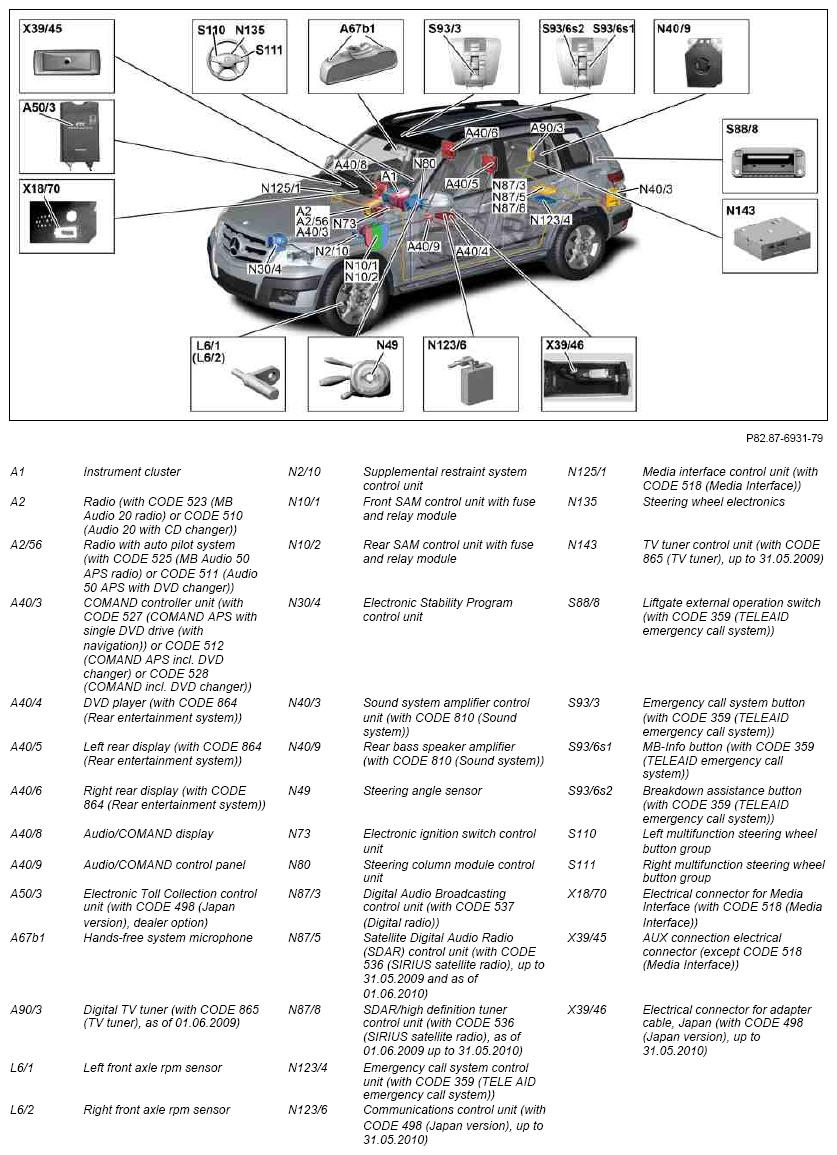

Model 204.9 as of 01.06.2012, except telematics antenna system and speaker system

Fig 15: Telematics System Components Overview - Shown On Model 204.9
G09984133Courtesy of MERCEDES-BENZ USA

Model 204.9 up to 31.05.2012, except telematics antenna system and speaker system

Fig 16: Telematics System Components Overview - Shown On Model 204.9
G09984134Courtesy of MERCEDES-BENZ USA

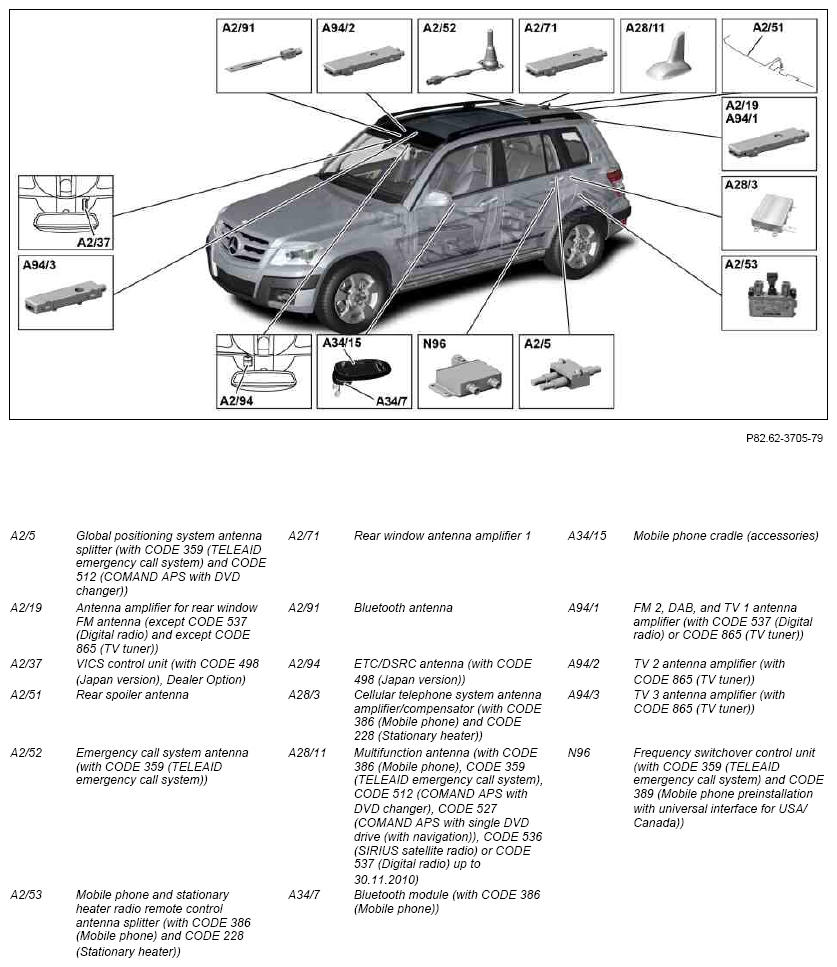

Model 204.9 as of 01.06.2012, telematics antenna system

Fig 17: Telematics System Components Overview - Shown On Model 204.9
G09984135Courtesy of MERCEDES-BENZ USA

Model 204.9 up to 31.05.2012, telematics antenna system

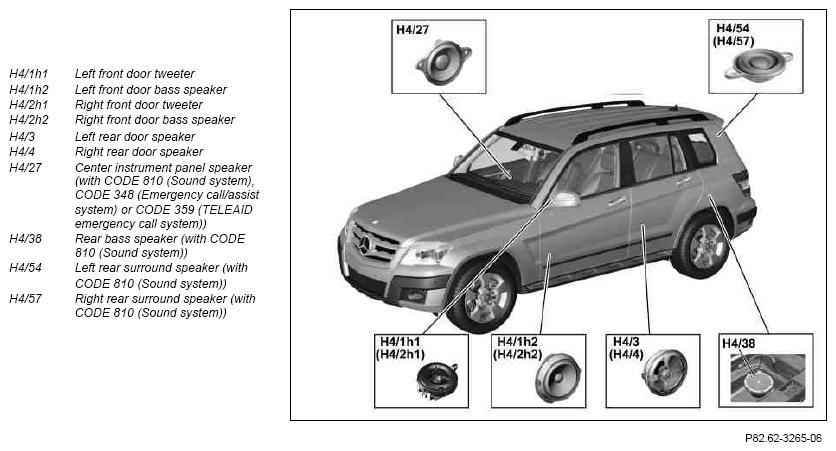

Model 204.9, speaker system

Fig 18: Telematics System Components Overview - Shown On Model 204.9
G09984136Courtesy of MERCEDES-BENZ USA
  Component description for ME-SFI (ME) control unit MODEL 204.0/2 with ENGINE 156.9
as of model year 2009
MODEL 204.3 with ENGINE 156.9
N3/10		 GF07.61-P-6000MAW
  Component description for transmission mode control unit MODEL 204.0/2 with TRANSMISSION 722.930
as of model year 2009
MODEL 204.3 with TRANSMISSION 722.930
N145		 GF27.19-P-1350AHV
  Component description for fully integrated transmission control unit MODEL 204.0/2 with TRANSMISSION 722.930
as of model year 2009
MODEL 204.3 with TRANSMISSION 722.930
Y38n4		 GF27.60-P-5165AHV
  Component description for adaptive damping system control unit MODEL 204.0/2
as of model year 2009
with CODE 483 (ADVANCED AGILITY package)
MODEL 204.3
with CODE 483 (ADVANCED AGILITY package)
N51/5		 GF32.32-P-1010CE
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119CE
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501CE
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030CE
  Upper control panel control unit, component description N72/1, N72/1s48 GF54.21-P-6040CE
  Component description for steering column tube module control unit N80 GF54.21-P-6051CE
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070CE
  Component description for instrument cluster A1 GF54.30-P-6000CE
  Component description for Audio/COMAND display A40/8 GF54.30-P-6150CE
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001CE
  Component description for overhead control panel control unit MODEL 204
as of model year 2009
with CODE 414 (Electric sunroof, glass version)
S93/3, S93/6s1, S93/6s2, N70		 GF82.20-P-5216CE
  Component description for electronic overhead control panel MODEL 204
as of model year 2009
without CODE 414 (Electric sunroof, glass version)
S93/3, S93/6s1, S93/6s2, N70/3		 GF82.20-P-5217CE
  Digital TV tuner, component description MODEL 204.9
as of model year 2013
with CODE 865 (TV tuner)
A90/3		 GF82.60-P-3118CE
MODEL 204.0/2
as of model year 2010
with CODE 498 (Japanese version)
MODEL 204.3
with CODE 498 (Japanese version)
MODEL 204.9
as of model year 2010 up to model year 2013
with CODE 498 (Japanese version)
A90/3		 GF82.60-P-3118CEJ
  Component description for the radio MODEL 204.0/2
as of model year 2012
with CODE 510 (Audio 20 with CD changer)
without CODE 523 (MB Audio 20 radio)
MODEL 204.0/2
as of model year 2012
with CODE 523 (MB Audio 20 radio)
without CODE 510 (Audio 20 with CD changer)
MODEL 204.3
with CODE 510 (Audio 20 with CD changer)
MODEL 204.3
with CODE 523 (MB Audio 20 radio)
MODEL 204.9
as of model year 2013
with CODE 510 (Audio 20 with CD changer)
without CODE 523 (MB Audio 20 radio)
MODEL 204.9
as of model year 2013
with CODE 523 (MB Audio 20 radio)
without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEA
MODEL 204.0/2
as of model year 2009 up to model year 2012
with CODE 510 (Audio 20 with CD changer)
without CODE 523 (MB Audio 20 radio)
MODEL 204.0/2
as of model year 2009 up to model year 2012
with CODE 523 (MB Audio 20 radio)
without CODE 510 (Audio 20 with CD changer)
MODEL 204.9
up to model year 2013
with CODE 510 (Audio 20 with CD changer)
without CODE 523 (MB Audio 20 radio)
MODEL 204.9
up to model year 2013
with CODE 523 (MB Audio 20 radio)
without CODE 510 (Audio 20 with CD changer)
A2		 GF82.60-P-3122CEB
  Component description for media interface control unit MODEL 204
as of model year 2013
with CODE 518 (Media interface)
N125/1		 GF82.60-P-5000CEA
MODEL 204.0/2
as of model year 2009 up to model year 2013
with CODE 518 (Media interface)
MODEL 204.3/9
up to model year 2013
with CODE 518 (Media interface)
N125/1		 GF82.60-P-5000CE
  AMG performance media control unit, component description MODEL 204.0/2
as of model year 2013
with CODE 255 (AMG Performance Media)
MODEL 204.3
with CODE 255 (AMG Performance Media)
N125/3		 GF82.60-P-5010CE
  Component description for radio with auto pilot system MODEL 204.0/2
as of model year 2009
with CODE 511 (Audio 50 APS with DVD changer)
MODEL 204.0/2
as of model year 2009
with CODE 525 (MB Audio 50 APS radio)
MODEL 204.9
with CODE 511 (Audio 50 APS with DVD changer)
MODEL 204.9
with CODE 525 (MB Audio 50 APS radio)
A2/56		 GF82.61-P-4112CE
  Component description for Digital Audio Broadcasting control unit MODEL 204.0/2
as of model year 2009
with CODE 537 (Digital radio)
MODEL 204.3
with CODE 537 (Digital radio)
MODEL 204.9
as of model year 2010
with CODE 537 (Digital radio)
N87/3		 GF82.62-P-5000CE
  Component description for sound system amplifier control unit MODEL 204.0/2
as of model year 2009
with CODE 810 (Sound system)
MODEL 204.3/9
with CODE 810 (Sound system)
N40/3		 GF82.62-P-5010CE
  Telematics services communications module, component description MODEL 204.0/2
as of model year 2014
with CODE B54 (COM module)
MODEL 204.3/9
with CODE B54 (COM module)
N112/2		 GF82.85-P-0220CE
  Satellite digital audio radio (SDAR) control unit, component description MODEL 204.0/9
as of model year 2010 up to model year 2011
with CODE 536 (SIRIUS satellite radio)
without CODE 512 (COMAND APS with DVD changer)
without CODE 528 (COMAND with DVD changer)
MODEL 204.0/9
as of model year 2011
with CODE 536 (SIRIUS satellite radio)
MODEL 204.0
as of model year 2009 up to model year 2010
with CODE 536 (SIRIUS satellite radio)
MODEL 204.9
up to model year 2010
with CODE 536 (SIRIUS satellite radio)
N87/5		 GF82.85-P-3121CEU
  SDAR tuner/high definition tuner control unit, component description MODEL 204.0/9
as of model year 2010 up to model year 2011
with CODE 512 (COMAND APS with DVD changer)
with CODE 536 (SIRIUS satellite radio)
MODEL 204.0/9
as of model year 2010 up to model year 2011
with CODE 528 (COMAND with DVD changer)
with CODE 536 (SIRIUS satellite radio)
N87/8		 GF82.85-P-3122CE
  Component description for COMAND controller unit MODEL 204.0/2
as of model year 2012
with CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 204.0/2
as of model year 2012
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 512 (COMAND APS with DVD changer)
MODEL 204.9
as of model year 2013
with CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 204.9
as of model year 2013
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 512 (COMAND APS with DVD changer)
A40/3		 GF82.85-P-3136CEA
MODEL 204.0/2
as of model year 2009 up to model year 2012
with CODE 512 (COMAND APS with DVD changer)
MODEL 204.0/2
as of model year 2009 up to model year 2012
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 498 (Japanese version)
MODEL 204.0
as of model year 2009 up to model year 2012
with CODE 528 (COMAND with DVD changer)
MODEL 204.9
up to model year 2013
with CODE 512 (COMAND APS with DVD changer)
MODEL 204.9
up to model year 2013
with CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 498 (Japanese version)
MODEL 204.9
up to model year 2013
with CODE 528 (COMAND with DVD changer)
A40/3		 GF82.85-P-3136CE
MODEL 204.0/2
as of model year 2009 up to model year 2012
with CODE 498 (Japanese version)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 204.9
up to model year 2013
with CODE 498 (Japanese version)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
A40/3		 GF82.85-P-3136CEJ
  Cradle for navigation module, component description MODEL 204
as of model year 2012
with CODE 508 (Navigation box preinstallation)
MODEL 204
as of model year 2012
with CODE 509 (Navigation box)
A2/30-1		 GF82.85-P-3137CE
  Component description for rear entertainment DVD player MODEL 204.9
with CODE 864 (Rear entertainment system)
A40/4		 GF82.90-P-4009GD
  Component description for rear display left/right MODEL 204.9
with CODE 864 (Rear entertainment system)
A40/5, A40/6		 GF82.90-P-4020GD
  Component description for emergency call system control unit MODEL 204.0
as of model year 2013
with CODE 348 (Emergency call/assistant system)
MODEL 204.3/9
with CODE 348 (Emergency call/assistant system)
N123/4		 GF82.95-P-3212CEV
MODEL 204.0
as of model year 2009 up to model year 2013
with CODE 359 (TELE AID emergency call system)
MODEL 204.3/9
with CODE 359 (TELE AID emergency call system)
N123/4		 GF82.95-P-3212CEU
  Component description for supplemental restraint system control unit N2/10 GF91.60-P-4068CE
  Table of contents for function description, telematics   GF82.85-P-0993CE
scientia non olet · About LEMON Manuals
