Electric mirror, function - GF88.79-P-0006CE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2 as of model year 2009
/YoM 08
MODEL 204.3
MODEL 204.9

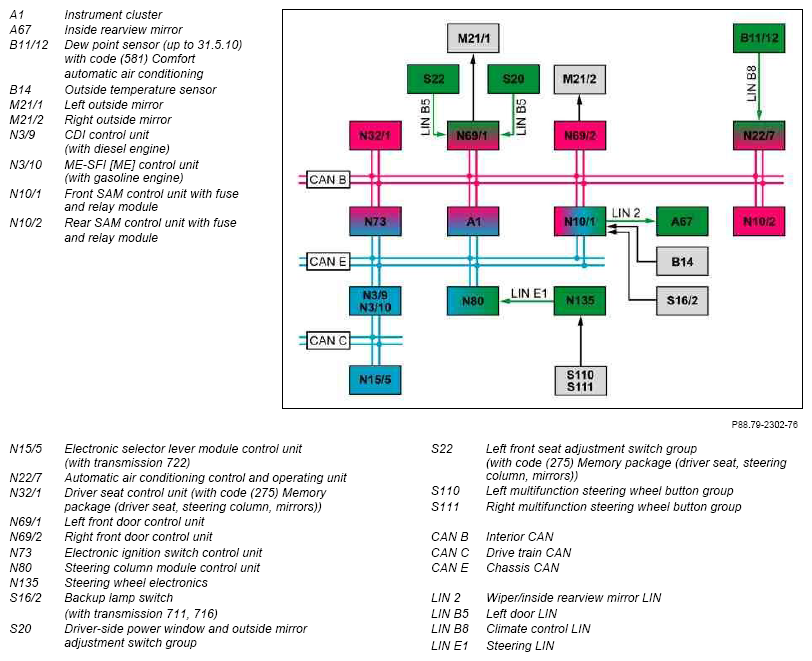

Electric mirror, general
In order to adapt to the different driving situations, the outside mirrors are electrically adjustable. The mirror glasses can be heated additionally.
The electric mirror function contains the following partial functions, which are described in separate documents:
- Mirror lens adjustment left/right outside mirror, function
- Heat left/right outside rearview mirrors function
- Passenger side outside mirror park position, function (with code (275) memory package (driver seat, steering column, mirror), with code (494) USA version and with code (460) Canada version)
- left/right folding outside mirror, function (with code (249) Automatic dimming inside and outside rearview mirror (driver), with code (494) USA version and with code (460) Canada version)
- Automatically dim outside mirrors and inside rearview mirror, function (with code (249) Automatically dimming inside rearview mirror and outside mirror (driver))
- Garage door opener, function (with code (232) Garage door opener with frequency 284-390 MHz)
| Mirror lens adjustment left/right outside mirror, function | GF88.79-P-2008CE | |
| Heat left/right outside rearview mirrors function | GF88.79-P-2000CE | |
| Passenger-side outside mirror park position, function | With code (275) memory package (driver seat, steering column, mirror), with code (494) USA version and with code (460) Canada version | GF88.79-P-2006CE |
| Fold left/right outside mirror, function | With code (249) Automatic dimming inside and outside rearview mirror (driver), with code (494) USA version and with code (460) Canada version | GF88.79-P-2002CE |
| Automatic dimming outside mirror and inside With code (249) Automatically dimming rearview mirror, function inside rearview mirror and outside mirror (driver) | GF88.79-P-2010CE | |
| Garage door opener, function | With code (232) Garage door opener with frequency 284-390 MHz | GF68.05-P-0001CE |
