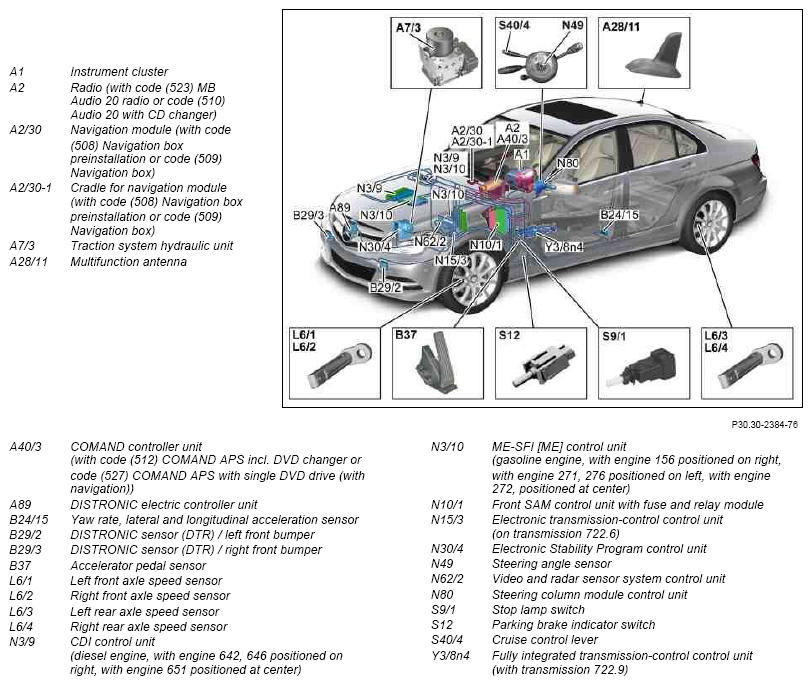

Overview of system components for driver assistance systems - GF54.00-P-9998CE

MODEL 204.0/2 as of model year 2009

/YoM 08

MODEL 204.9

MODEL 204.3

Attention assistance system (Model 204.0/2 as of 1.3.11 with code (442) Comfort multifunction steering wheel or model 204.3 with code (442) Comfort multifunction steering wheel)

Cruise control (CC [TPM]) (Model 204 with code (440) Cruise control or model 204.0/2/3 with code (233) DISTRONIC PLUS)

DISTRONIC PLUS incl. BAS PLUS and PRE-SAFE brake (model 204.0/2/3 with code (233) DISTRONIC PLUS)

Blind Spot Assist (model 204.0/2/3 with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)

Active Lane Keeping Assist (model 204.0/2/3 with code (238) Active Lane Keeping Assist)

Automatic lane recognition (model 204 0/2/3 with code (476) Automatic lane recognition)

Speed Limit Assist (model 204.0/2/3 with code (513) Speed Limit Assist)

	Component description for instrument cluster	A1	GF54.30-P-6000CE
	Component description for the radio	A2 With code (523) MB Audio 20 radio without code (494) USA version	GF82.60-P-3122CE
		Model 204.0/2 as of 1.3.11 with code (510) Audio 20 incl. CD changer, Model 204.0 as of 1.3.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.3 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer	GF82.60-P-3122CEA
		Model 204.0/2 up to 28.2.11 with code (510) Audio 20 incl. CD changer, Model 204.0 up to 28.2.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.9 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer	GF82.60-P-3122CEB
	Component description for COMAND controller unit	A40/3 Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer,	GF82.85-P-3136CE
		Model 204.0 up to 28.2.11 with code (528) COMAND incl. DVD changer, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) without code (498) Japan version or with code (512) COMAND APS incl. DVD changer or with code (528) COMAND incl. DVD changer
		Model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer, Model 204.3 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer	GF82.85-P-3136CEA
		Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version	GF82.85-P-3136CEJ
	Component description for Audio/COMAND display	A40/8	GF54.30-P-6150CE
	Component description for multifunction camera	A40/11 Model 204.0/2 as of 1.6.11, model 204.3 With code (238) Active Lane Keeping Assist, code (476) Automatic Lane Recognition, code (513) Speed Limit Assist or with code (608) Adaptive Highbeam Assist	GF54.21-P-3300CE
	Component description for DISTRONIC electric controller unit	A89 Model 204.0/2 as of 1.3.11, model 204.3 With code (233) DISTRONIC PLUS, with code (237) Active Blind Spot Assist or with code (238) Active Lane Keeping Assist	GF30.30-P-3213CE
	Component description for yaw rate sensor for lateral and longitudinal acceleration	B24/15	GF42.45-P-4810CE
	Bumper radar sensors, component description	B29/2, B29/3, B29/6, B29/7 Model 204.0/2 as of 1.3.11 with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist, Model 204.3 with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist	GF30.30-P-3302CE
	Intelligent radar sensor control unit, component description	B29/4, B29/5 Model 204.0/2 as of 1.3.11, model 204.3 with code (234) Blind Spot Assist,	GF30.30-P-3305CE
	Component description for CDI control unit	N3/9	GF07.16-P-6000OG
		With engine 642.8 in model 204.0/2/9 With engine 642.9 in model 204.0/2/9	GF07.16-P-6000OH
		On engine 646.8 in model 204.0/2	GF07.16-P-6000OL
		With engine 651.9	GF07.16-P-6000OM
	Component description for ME-SFI [ME] control unit	N3/10 With engine 156 in model 204.0/2	GF07.61-P-6000MAW
		With engine 271.8 in model 204.0/2/3	GF07.61-P-6000MG
		With engine 271.9 in model 204.0/2	GF07.61-P-6000MFW
		With engine 272.9 (except 272.982) in model 204.0/2/9	GF07.61-P-6000MI
		With engine 272.982 in model 204.0	GF07.61-P-6000MIE
		With engine 276.9	GF07.61-P-6000MM
	Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070CE
	Component description for electronic transmission control control unit	N15/3 With transmission 722.6	GF27.60-P-5164ACW
	Component description for electronic selector lever module control unit	N15/5 With transmission 722.6	GF27.60-P-5163ACW
	Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119CE
	Component description for video and radar sensor system control unit	N62/2 Model 204.0/2 as of 1.3.11, model 204.3 with code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or with code (238) Active Lane Keeping Assist	GF30.30-P-3304CE
	Component description for left front door control unit	N69/1	GF72.29-P-6001CE
	Component description for right front door control unit	N69/2	GF72.29-P-6009CE
	Component description for overhead control panel control unit	N70 With model 204.0/2/3 with code (414) Power glass tilting/sliding roof	GF82.20-P-5216CE
	Component description for electronic overhead control panel	N70/3 With model 204.0/2/3 without code (414) Power glass tilting/sliding roof Model 204.9	GF82.20-P-5217CE
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001CE
	Component description for steering column tube module control unit	N80	GF54.21-P-6051CE
	Component description for fully integrated transmission control unit	Y3/8n4 With transmission 722.9	GF27.60-P-5165AHW
	Table of contents for function description of driver assistance systems		GF54.00-P-0998CE
