Remove/install propeller shaft - AR41.10-P-0050CW

MODEL 204, 207

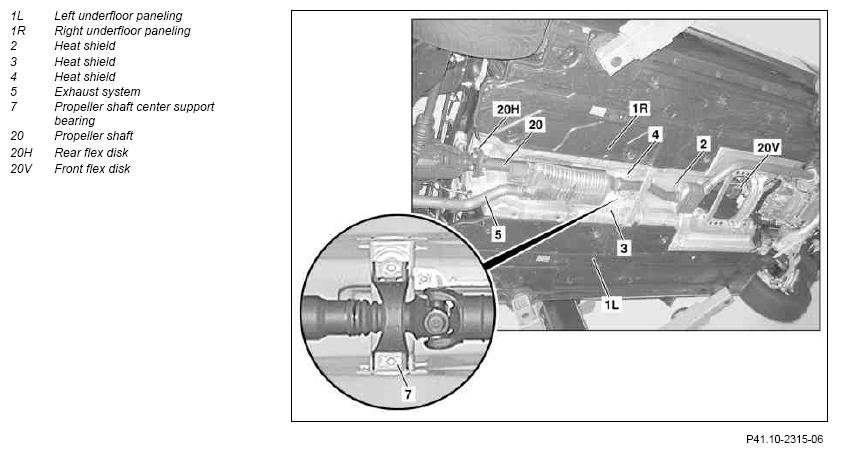

Fig 1: Identifying Propeller Shaft Remove/Install Components
G07533052Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

25.6.10 Value modified: Self-locking nut, flexible coupling to transmission and front propeller shaft, M12 *BA41.10-P-1001-01I
  Value changed: Self-locking nut, flex disk to rear propeller shaft or rear axle differential M12 *BA41.10-P-1002-01I
REMOVINGINSTALLING Remove/install
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Shift transmission into neutral or idle position
2.1 Remove both lower engine compartment paneling Model 204.9 AR61.20-P-1105CY
2.2 Remove engine compartment paneling Model 204.0/2/3, 207 with gasoline engine AR61.20-P-1105EW
2.3 Remove lower bottom sections of soundproofing Model 204.0/2/3, 207 with diesel engine AR94.30-P-5300EW
3 Loosen underfloor paneling (1L, 1R) in the area of the heat shields (2, 3, 4) Model 204
Model 207		 AR61.30-P-1001EC
4 Remove rear reinforcement brace from underfloor Vehicles with 4MATIC and vehicles with engine 156
TORQUE SPECIFICATION		 *BA61.10-P-1003-01H
5 Remove rear engine crossmember Model 204 without 4MATIC with engine 272, 276, 642, model 207 AR22.10-P-1180CW
    Model 204 without 4MATIC with engine 156 AR22.10-P-1180CMG
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
6 Detach heat shield (2, 3, 4) in area of propeller shaft center support bearing (7) and remove
7 Remove vibration damper from transfer case Model 204 with 4MATIC with engine 651
TORQUE SPECIFICATION		 *BA28.10-P-1007-01E
8 Mark propeller shaft (20) IMPORTANT Apply color markings identifying the position of the propeller shaft relative to the flanges on the transmission and differential, in order to be able to reproduce the plant installation position when installing.
9 Detach front flexible coupling (20V) from transmission and from propeller shaft (20) IMPORTANT Release fitting sleeves on flex disk. AR41.10-P-0050-09TX
REFER TO SHOP-MADE TOOLS Drift for loosening fitting sleeves in flex disks.   WF58.50-P-4110-01A
    TORQUE SPECIFICATION *BA41.10-P-1001-01I
10 Detach rear flex disk (20H) from differential IMPORTANT Release fitting sleeves on flex disk.
IMPORTANT Flex disk remains on propeller shaft.		 AR41.10-P-0050-09TX
REFER TO SHOP-MADE TOOLS Drift for loosening fitting sleeves in flex disks.   WF58.50-P-4110-01A
    TORQUE SPECIFICATION *BA41.10-P-1002-01I
11.1 Unhook rear section of exhaust system (5) from exhaust rubber mounts, lower and prop up Model 204 with engine 272, 642 without 4MATIC model 207
11.2 Remove exhaust system starting from the flange connection of catalytic converter/center muffler Model 204 with engine 272, 276 and 4MATIC AR49.10-P-7100CW
11.3 Remove complete exhaust system Model 204 with engine 156 AR49.10-P-7100CW
12 Mark propeller shaft intermediate bearing (7) IMPORTANT Apply color markings identifying the position of the propeller shaft center support bearing relative to the vehicle underbody in order to reproduce the plant installation position when installing.
13 Remove bolts on propeller shaft center support bearing (7) IMPORTANTInstallation:  The bolts may only be tightened securely when the propeller shaft (20) is securely fitted to the transmission and differential.
TORQUE SPECIFICATION		 *BA41.40-P-1001-01F
14 Move out propeller shaft (20) to the rear
INSPECT Checking
15 Check propeller shaft intermediate bearing (7) for wear and damage If necessary: ↓
Remove/install propeller shaft center support bearing and replace grooved ball bearing.		 AR41.10-P-0100CW
16 Check centering sleeves for wear If necessary: ↓
Replace centering sleeve.		 AR41.10-P-0200CW
17 Check flex disks (20H, 20V)
REFER TO MAINTENANCE Check propeller shaft flex disks for signs of damage and deformation Model 204 AP41.10-P-4152CW
REFER TO MAINTENANCE   Model 207 AP41.10-P-4152EW
18 Install in the reverse order
TRANSFER CASE COMPLETE

Number  Designation    Transmission 722.96
BA28.10-P-1007-01E Bolt, vibration damper to transfer case Nm 40
PROPELLER SHAFT

Number  Designation      Model 204  Model 207
BA41.10-P-1001-01I Self-locking nut, flex disk to transmission or front propeller shaft M12 Nm 68 68
BA41.10-P-1002-01I Self-locking nut, flex disk to rear propeller shaft or differential M12 Nm 68 68
PROPELLER SHAFT CENTER SUPPORT BEARING

Number  Designation      Model 204  Model 207
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 20 20
FRAME FLOOR ASSEMBLY

Number  Designation    Model 204  Model 207.3
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 24 24
