Check propeller shaft flex disks for signs of damage and deformation - AP41.10-P-4152CW

MODEL 204

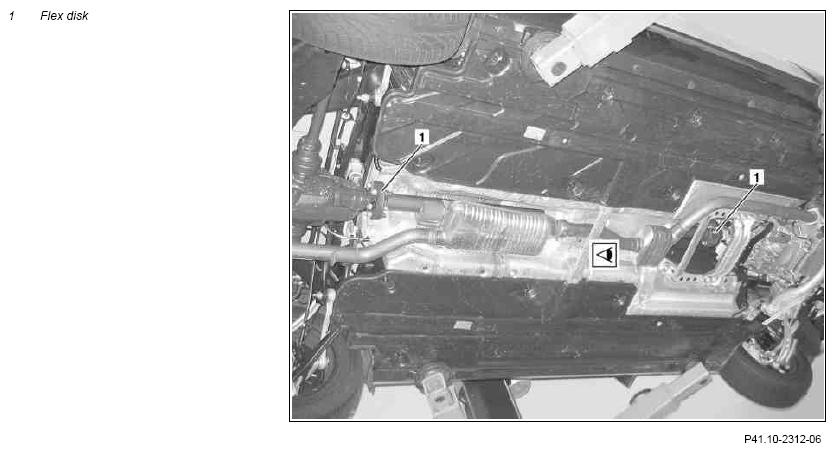

Fig 1: Identifying Flex Disk

Courtesy of MERCEDES-BENZ USA

	Checking
Danger!	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform
2	Check flexible couplings (1) for cracking, wear, damage and deformation	Replace flexible couplings (1) subject to a separate repair order if necessary.
3	Lower vehicle
