Remove/install drive cable for panoramic sliding sunroof (MODEL 204.3, 207.3) - AR77.21-P-0240EC
MODEL 204.3, 207.3 with CODE (413) Panoramic glass roof with top sliding roof

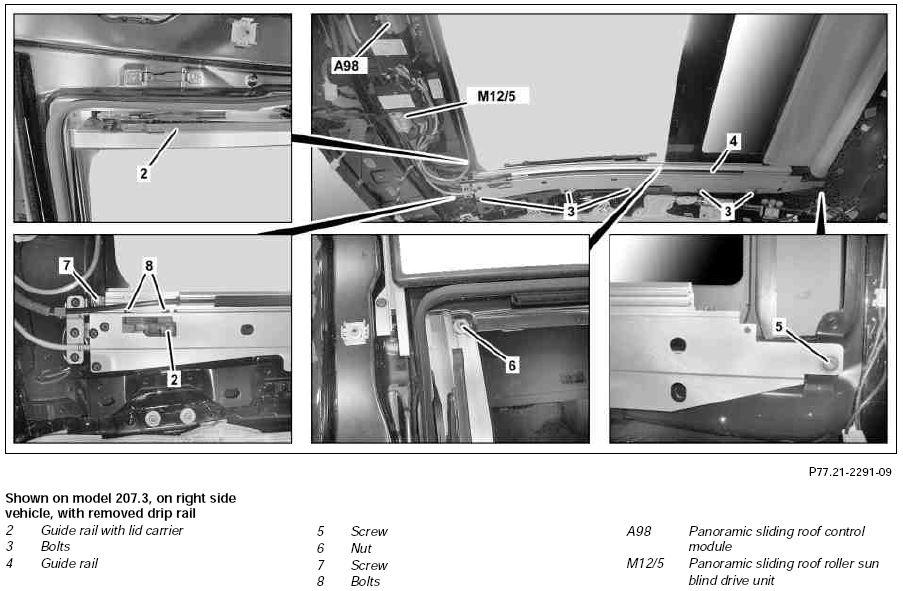

Fig 1: Removing/Installing Drive Cable For Panoramic Sliding Sunroof (Shown On Model 207.3, On Right Side Vehicle, With Removed Drip Rail)

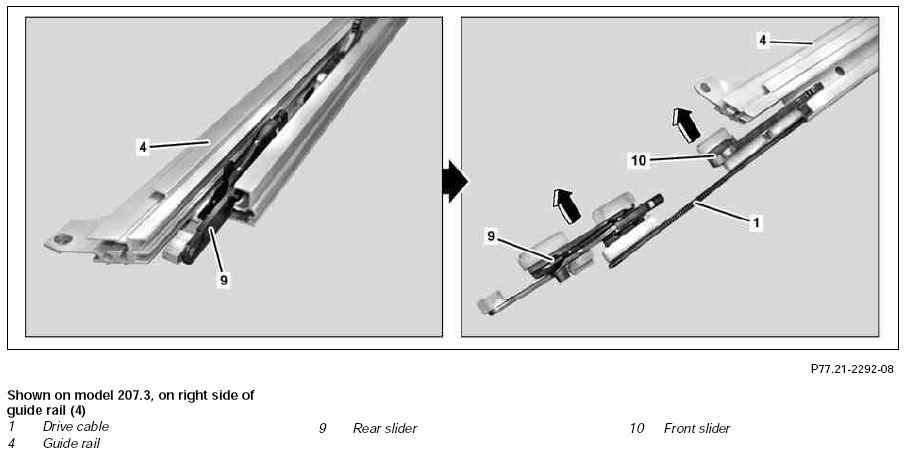

Fig 2: Removing/Installing Drive Cable For Panoramic Sliding Sunroof (Shown On Model 207.3, On Right Side Of Guide Rail)
| Remove/install | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |
| 1 | Remove front glass roof from panoramic sliding roof | AR77.21-P-0500EW | |
| 2 | Remove roller sun blind of panoramic sliding sunroof | AR77.21-P-0215EC | |
| 3 | Remove panoramic sliding roof motor | AR77.21-P-6995EW | |
| 4 | Unscrew bolts (8) on left or right guide rail with lid carrier (2) and remove guide rail with lid carrier (2) | ||
| 5 | Loosen screw (7) on left or right guide rail (4) | Screw (7) remains in the body for better handling of the guide rail (4). | |
| 6 | Remove screws (3, 5) on left or right guide rail (4) and lower guide rail (4) | Carefully lower guide rails (4) until the drive cable (1) can be pulled out. | |
| 7 | Slide drive cable (1) on the left or right side of vehicle backwards until it can be pulled out from the respective guide rail (4) | Installation: Slide drive cable (1) toward front against stop. | |
| 8 | Pull drive cable (1) out of left or right guide rail (4) together with rear slider (9) and front slider (10). | Remove rear slider (9) and front slider (10) in direction of arrow from drive cable (1) as soon as it is exposed from the guide rail (4). Installation: Position rear slider (9) and front slider (10) on the mounts on the drive cable (1). |
|
| 9 | Install in the reverse order |
