Remove/install panoramic sliding roof motor (MODEL 204.3, 207.3, 212.0/1/2) - AR77.21-P-6995EW
MODEL 204.3, 207.3, 212.0/1/2 with CODE 413 (Panoramic glass roof with top sliding roof)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Loosen headliner (1) in front area | MODEL 204.3, 207.3 with CODE 413 (Panoramic glass roof with top sliding roof) | AR68.30-P-4300EC |
| 1.2 | Loosen headliner (1) in front area up to B- pillars | MODEL 212 | |

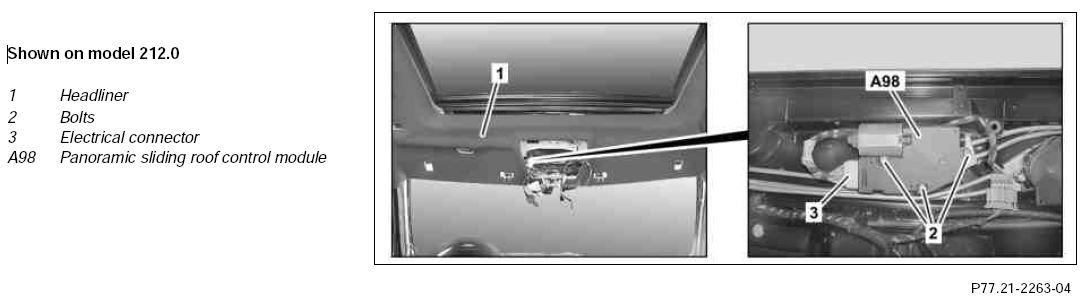

| 2 | Lower headliner (1) and disconnect electrical connector (3) on panoramic sliding sunroof control module (A98) | Carefully lower headliner (1). Headliner (1) can be damaged. | |
| 3 | Lower headliner (1), remove bolts (2) and take out panoramic sliding sunroof control module (A98) | Carefully lower headliner (1). Headliner (1) can be damaged. Installation: First position bolts (2) and then tighten. |
|
| 4 | Install in the reverse order | ||
| 5 | Perform teach-in run for anti-pinch protection and normalization of panoramic sliding sunroof Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
