Remove, install roller sun blind on panoramic sliding roof - AR77.21-P-0215EC
MODEL 204.3, 207.3 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |
| 1 | Remove headliner | AR68.30-P-4300EC | |
| 2 | Remove screws from (7) on left and right side | ||

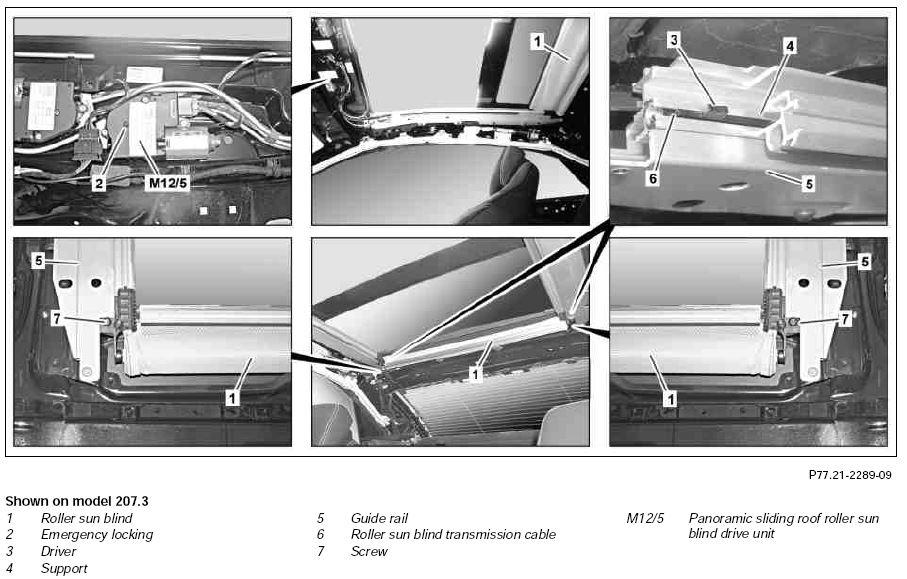

| 3 | Turn panoramic sliding sunroof roller sun blind drive unit (M12/5) clockwise approx. 90 ° at the emergency locking device (2) | The roller sun blind (1) moves automatically out from the guide rail (5) supports (4) when the panoramic sliding sunroof roller sun blind drive unit (M12/5) is turned at the emergency locking device (2) Aid of helper required. | |
| 4 | Remove roller sun blind (1) from the drivers (3) of the roller sun blind drive cable (6) and pull roller sun blind (1) out from the vehicle interior | Installation: Position roller sun blind (1) onto drivers (6). | |
| 5 | Install in the reverse order |
