Remove/install front panoramic glass roof (MODEL 204.3, 207.3, 212.0 /1 /2) - AR77.21-P-0500EW
MODEL 204.3, 207.3, 212.0 /1 /2 with CODE (413) Panoramic glass roof with top sliding roof
| Removing | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |

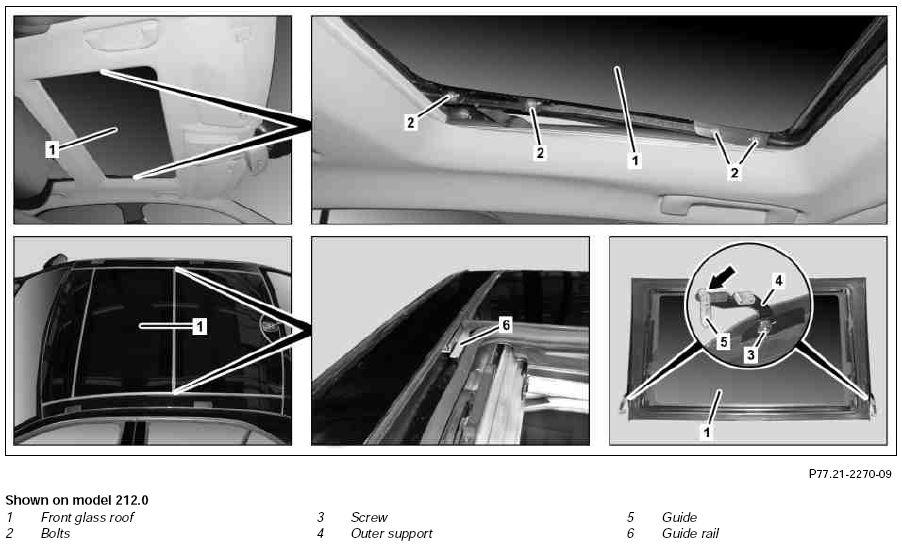

| 1 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 2 | Remove screws (2) on both sides of front glass roof (1) | ||
| 3 | Pull front glass roof (1) with outer support (4) out from the guide rail and remove | Lie front glass roof (1) with outer side on a suitable base (scratch protection). The side rubber lips must not be bent or strained because they could be permanently deformed. Aid of helper required. |
|
| 4 | Remove screws (3) on the left and right outer support (4) and remove outer support (4) | Only when replacing front glass roof (1). | |
| Check | |||
| 5 | Check front glass roof mechanism (1); grease if necessary | Lubricant paste | BR00.45-Z-1004-06A |
| Install | |||
| 6 | Position left and right outer support (4) and tighten screws (3) | Only when replacing front glass roof (1). | |
| 7 | Insert outer support (4) of front glass roof (1) with the short side (arrow) of the guide (5) going in the guide rail (6) first | ||
| 8 | Align front glass roof in roof opening to the attachment points | ||
| 9 | Screw in bolts (2) on both sides up to contact surface | ||
| 10 | Adjust front glass roof (1). | AR77.21-P-0501EW | |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
