Overview of system components for overall network (GVN) - GF00.19-P-9997CE

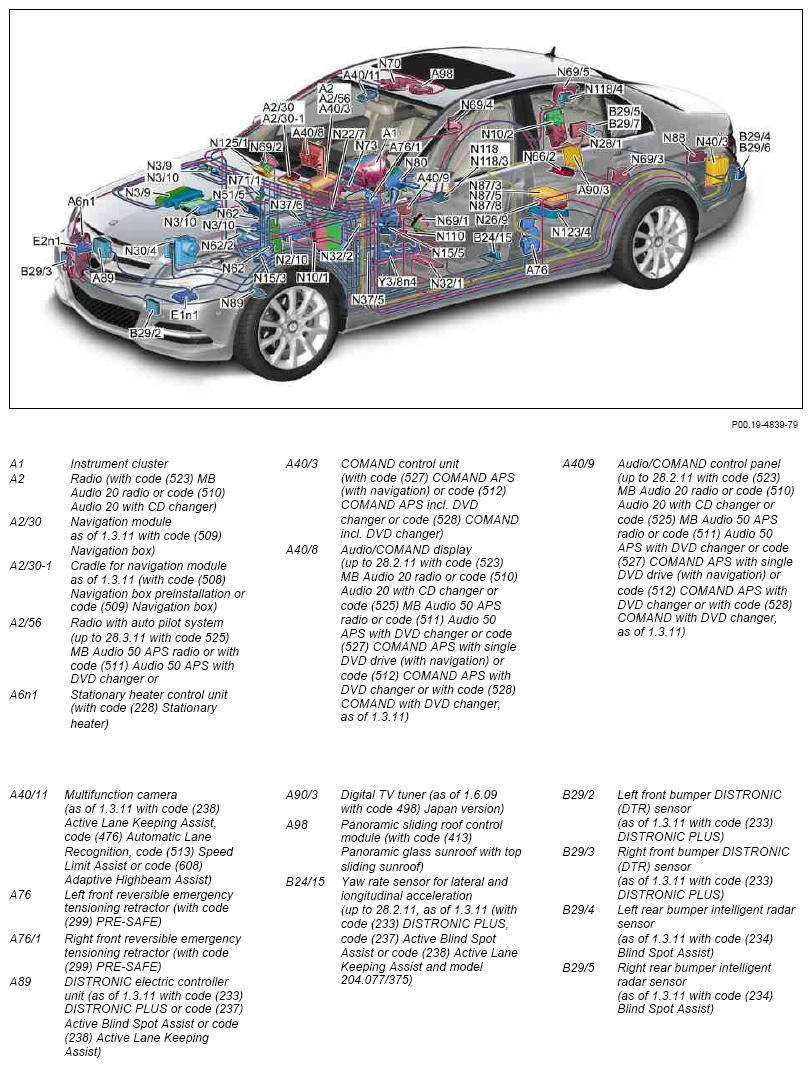

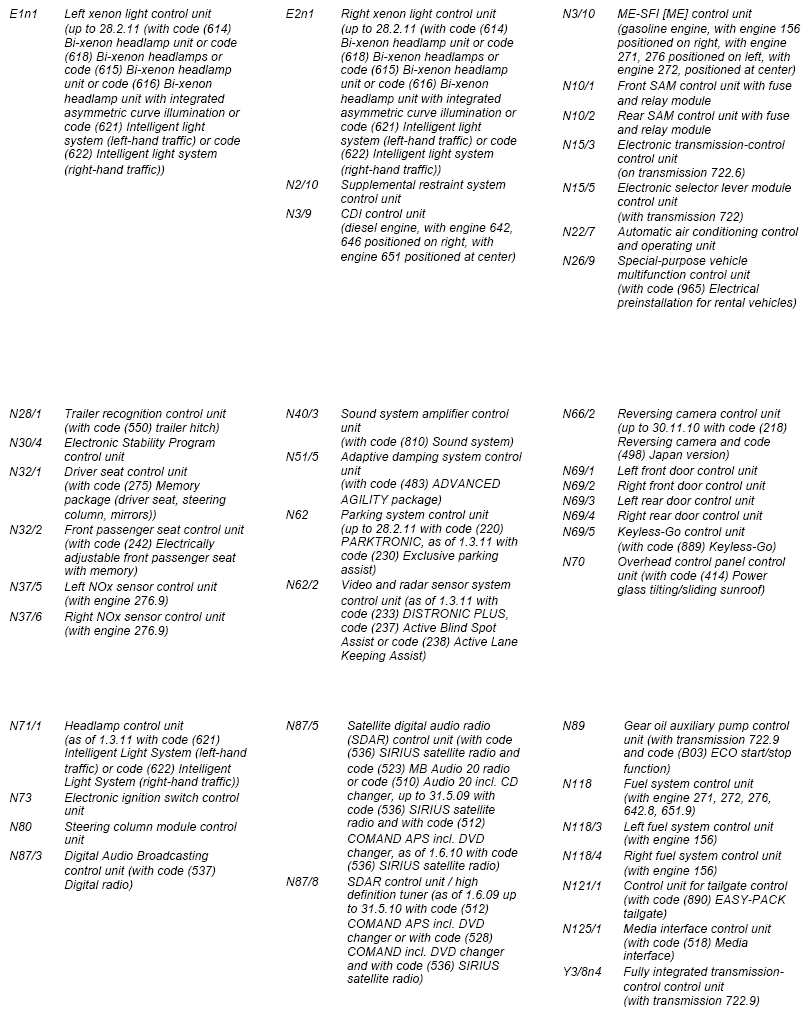

MODEL 204.0 /2 as of model year 2009/YoM 08

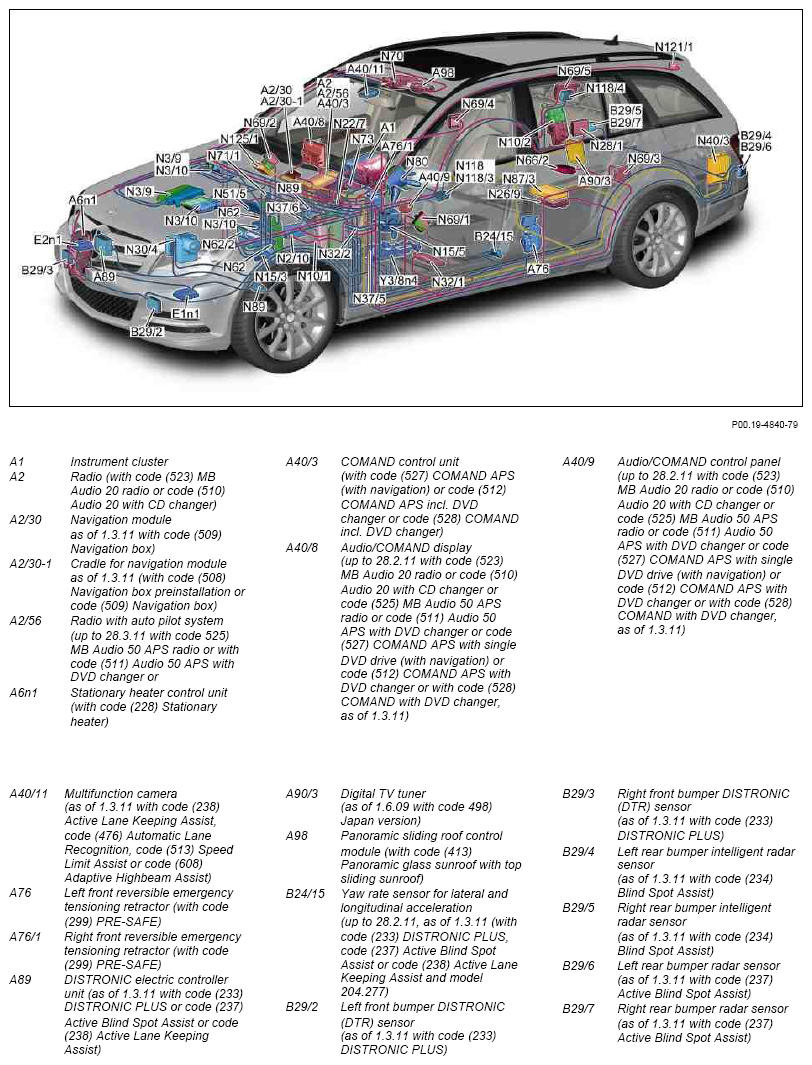

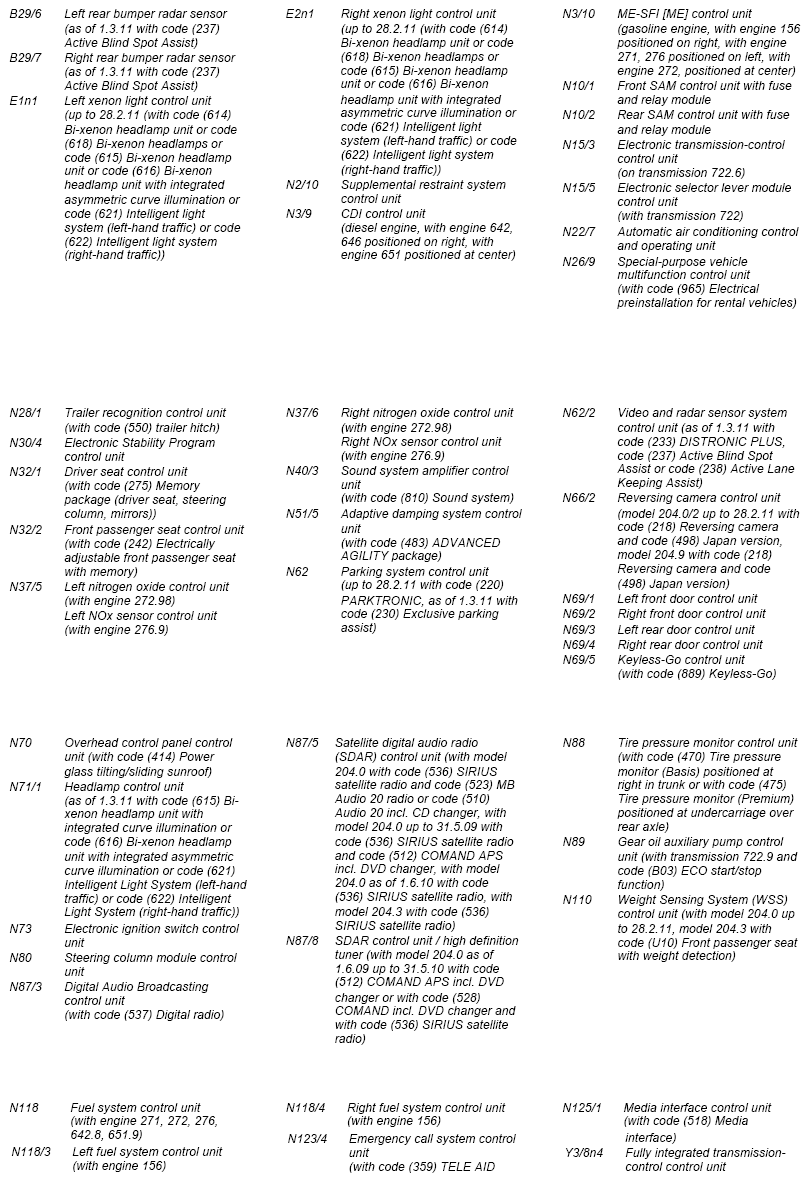

MODEL 204.3
MODEL 204.9

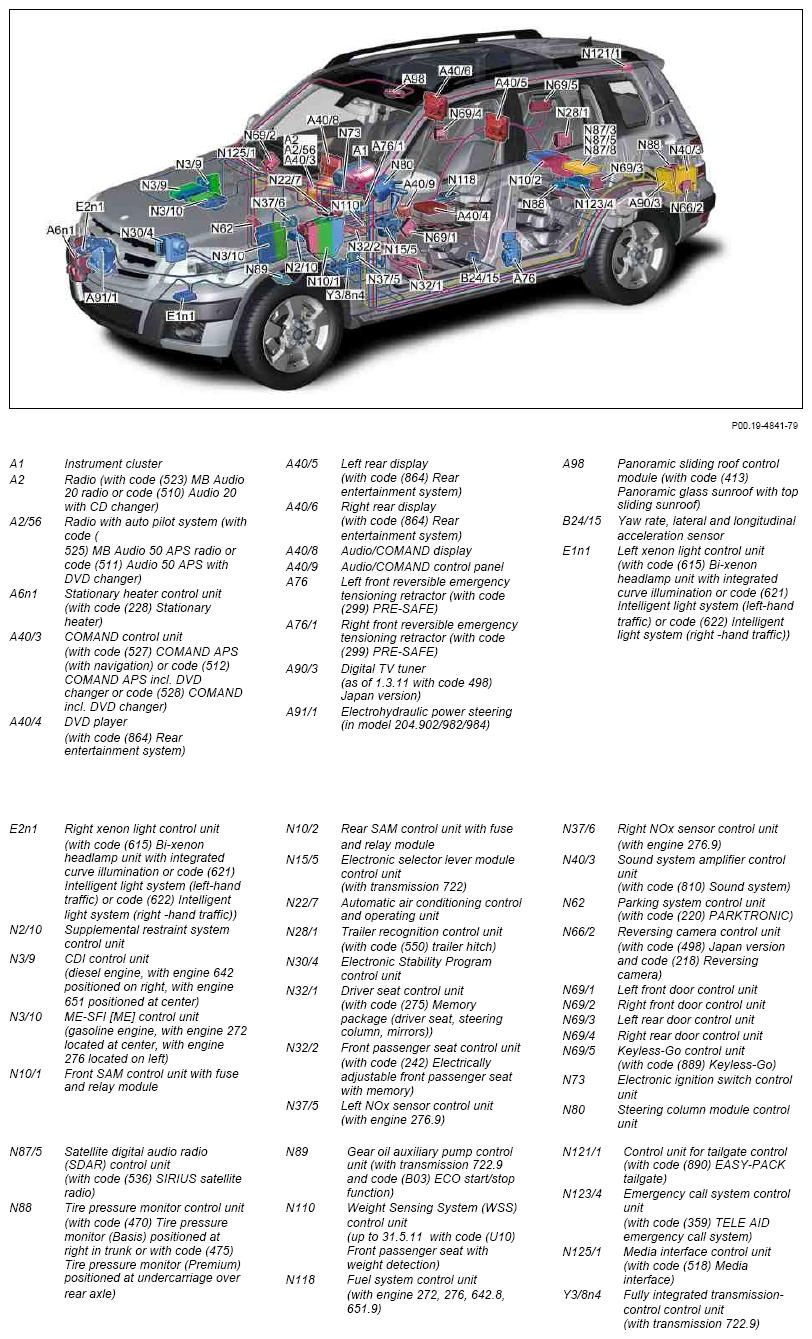

Model 204.0/3, shown on model 204.0
Model 204.2
Model 204.9
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for the radio | A2 With code (523) MB Audio 20 radio without code (494) USA version |
GF82.60-P-3122CE | |
| Model 204.0/2 as of 1.3.11 with code (510) Audio 20 incl. CD changer, Model 204.0 as of 1.3.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.3 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer | GF82.60-P-3122CEA | ||
| Model 204.0/2 up to 28.2.11 with code (510) Audio 20 incl. CD changer, Model 204.0 up to 28.2.11 with code (523) MB Audio 20 radio and code (494) USA version, Model 204.9 with code (523) MB Audio 20 radio and code (494) USA version or With code (510) Audio 20 with CD changer |
GF82.60-P-3122CEB | ||
| Cradle for navigation module, component description | A2/30-1 With code (508) Navigation box preinstallation or code (509) Navigation box |
GF82.85-P-3137CE | |
| Component description for radio with auto pilot system | A2/56 Model 204.0/2/9 with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS incl. DVD changer |
GF82.61-P-4112CE | |
| Stationary heater control unit, component description | A6n1 With code (228) Stationary heater |
GF83.70-P-4066CE | |
| Component description for COMAND controller unit | A40/3 Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer, Model 204.0 up to 28.2.11 with code (528) COMAND incl. DVD changer, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) without code (498) Japan version or with code (512) COMAND APS incl. DVD changer or with code (528) COMAND incl. DVD changer |
GF82.85-P-3136CE | |
| Model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer, Model 204.3 with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer |
GF82.85-P-3136CEA | ||
| Model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, Model 204.9 with code (527) COMAND APS with single DVD drive (with navigation) and with code (498) Japan version | GF82.85-P-3136CEJ | ||
| Component description for rear entertainment DVD player | A40/4 With model 204.9 with code (864) Rear entertainment system, or with code (866) Rear entertainment preinstallation |
GF82.90-P-4009GD | |
| Component description for rear display left/right | A40/5, A40/6 With model 204.9 with code (864) Rear entertainment system, or with code (866) Rear entertainment preinstallation |
GF82.90-P-4020GD | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150CE | |
| Audio/COMAND control panel, component description | A40/9 | GF54.21-P-4501CE | |
| Component description for multifunction camera | A40/11 Model 204.0/2 as of 1.6.11, model 204.3 With code (238) Active Lane Keeping Assist, code (476) Automatic Lane Recognition, code (513) Speed Limit Assist or with code (608) Adaptive Highbeam Assist |
GF54.21-P-3300CE | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 With code (299) PRE-SAFE |
GF91.40-P-4020CE | |
| Component description for DISTRONIC electric controller unit | A89 Model 204.0/2 as of 1.3.11, model 204.3 With code (233) DISTRONIC PLUS, with code (237) Active Blind Spot Assist or with code (238) Active Lane Keeping Assist |
GF30.30-P-3213CE | |
| Digital TV tuner, component description | A90/3 Model 204.0/2/9 as of 1.6.09 with code (498) Japan version, Model 204.3 with CODE (498) Japan version |
GF82.60-P-3118CEJ | |
| Component description for electrohydraulic power steering | A91/1 Model 204.9 with engine 651.9 |
GF46.30-P-2310CEB | |
| Component description for panoramic sliding roof control module | A98 With code (413) Panoramic glass sunroof with top sliding sunroof |
GF77.20-P-4106CE | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CE | |
| Bumper radar sensors, component description | B29/2, B29/3, B29/6, B29/7 Model 204.0/2 as of 1.3.11 with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist, Model 204.3 with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist |
GF30.30-P-3302CE | |
| Intelligent radar sensor control unit, component description | B29/4, B29/5 Model 204.0/2 as of 1.3.11, model 204.3 with code (234) Blind Spot Assist, |
GF30.30-P-3305CE | |
| Component description for Xenon light control unit | E1n1, E2n1 Model 204.0/2 up to 28.2.11 with code (614) Bi-xenon headlamp unit or code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (618) Bi-xenon headlamp or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) |
GF82.10-P-2119CE | |
| With model 204.9 with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (621) Intelligent light system (left-hand traffic) or code (622) Intelligent light system (right-hand traffic) | GF82.10-P-2119GD | ||
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE | |
| Component description for CDI control unit | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| On engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| Component description for ME-SFI [ME] control unit | N3/10 With engine 156 in model 204.0/2 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CE | |
| Component description for electronic transmission control unit | N15/3 With transmission 722.6 |
GF27.60-P-5164ACW | |
| Component description for electronic selector lever module control unit | N15/5 With transmission 722.6 |
GF27.60-P-5163ACW | |
| With transmission 722.9 | GF27.60-P-5163AHW | ||
| Component description for automatic air conditioning control and operating unit | N22/7 Without code (581) Comfort automatic air conditioning |
GF83.40-P-3000CEA | |
| With code (581) Comfort automatic air conditioning | GF83.40-P-3000CEB | ||
| Special vehicle multifunction control unit (SVMCU [MSS]), component description | N26/9 With model 204.0/2 with code (965) Electrical preinstallation for rental vehicle |
GF54.21-P-4010CE | |
| Component description for trailer recognition control unit | N28/1 With code (550) Trailer hitch |
GF31.19-P-4050CE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CE | |
| Component description for driver seat control unit | N32/1 With code (275) Memory package (driver seat, steering column, mirrors) |
GF91.29-P-5231CE | |
| Component description for front passenger seat control unit | N32/2 With code (242) Electrically adjustable front passenger seat with memory |
GF91.29-P-5241CE | |
| Component description for nitrogen oxides control unit | N37/5, N37/6 With engine 272.982 in model 204.0 |
GF07.70-P-6000MIE | |
| Component description for NOx sensor control unit | N37/5, N37/6 With engine 276.9 |
GF14.40-P-3024MM | |
| Component description for sound system amplifier control unit | N40/3 With code (810) Sound system |
GF82.62-P-5010CE | |
| Component description for adaptive damping system control unit | N51/5 On model 204.0/2 with code (483) ADVANCED AGILITY package |
GF32.32-P-1010CE | |
| Parking system control unit component description | N62 Model 204.0/2/9 with code (220) PARKTRONIC, Model 204.0/2 as of 1.3.11, model 204.3 with code (230) Exclusive parking assist |
GF54.65-P-5002CE | |
| Component description for video and radar sensor system control unit | N62/2 Model 204.0/2 as of 1.3.11, model 204.3 with code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or with code (238) Active Lane Keeping Assist |
GF30.30-P-3304CE | |
| Component description for reversing camera control unit | N66/2 Model 204.0/2 up to 28.2.11 with code (218) Reversing camera and code (498) Japan version, Model 204.9 with code (218) Reversing camera and code (498) Japan version |
GF54.65-P-5030CEJ | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for rear door control unit | N69/3, N69/4 With model 204.0/2/9 |
GF72.29-P-6021CE | |
| Component description for KEYLESS-GO control unit | N69/5 With CODE (889) Keyless Go |
GF80.61-P-4204CE | |
| Component description for overhead control panel control unit | N70 With model 204.0/2/3 with code (414) Power glass tilting/sliding roof |
GF82.20-P-5216CE | |
| Headlamp control unit, component description | N71/1 With model 204.0/2 as of 1.3.11, model 204.3 with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic): |
GF82.10-P-2020CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CE | |
| Component description for Digital Audio Broadcasting control unit | N87/3 With code (537) Digital radio |
GF82.62-P-5000CE | |
| Satellite digital audio radio (SDAR) control unit, component description | N87/5 Model 204.0 with code (536) SIRIUS satellite radio and code (523) MB Audio 20 radio or code (510) Audio 20 incl. CD changer, Model 204.0 up to 31.5.09 with code (536) SIRIUS satellite radio and code (512) COMAND APS incl. DVD changer Model 204.9 with code (536) SIRIUS satellite radio and code (523) MB Audio 20 radio or code (510) Audio 20 incl. CD changer, Model 204.9 up to 31.5.09 with code (536) SIRIUS satellite radio and with code (512) COMAND APS incl. DVD changer Model 204.0/9 as of 1.6.10 with code (536) SIRIUS satellite radio, Model 204.3 with code (536) SIRIUS satellite radio |
GF82.85-P-3121CEU | |
| Component description for SDAR tuner/high definition tuner control unit | N87/8 Model 204.0/9 as of 1.6.09 up to 31.5.10 with code (512) COMAND APS incl. DVD changer or with code (528) COMAND incl. DVD changer and with code (536) SIRIUS satellite radio |
GF82.85-P-3122CE | |
| Component description for tire pressure monitor control unit | N88 Model 204.0/9 with code (470) Tire pressure monitor (Basis) Schrader company |
GF40.15-P-5124CE | |
| Model 204.0/3/9 with code (475) Tire pressure monitor (Premium) Schrader | GF40.15-P-5124CEA | ||
| Component description for transmission oil auxiliary pump control unit | N89 With transmission 722.9 with code (B03) ECO start/stop function |
GF27.19-P-4030AHW | |
| Component description for Weight Sensing System (WSS) control unit | N110 With model 204.0 up to 28.2.11, model 204.9 up to 31.5.11, model 204.3 with code (U10) Front passenger seat with weight detection: |
GF91.60-P-4069CEU | |
| Component description for fuel system control unit | N118 With engine 271.8 in model 204.0/2/3 |
GF47.40-P-2001MG | |
| With engine 271.9 in model 204.0/2 | GF47.40-P-2001MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF47.40-P-2001MI | ||
| With engine 272.98 in model 204.0/2 | GF47.40-P-2001MIE | ||
| With engine 276.9 | GF47.40-P-2001MM | ||
| With engine 642.8 in model 204.0/2/9, With engine 651.9 | GF47.40-P-2001OM | ||
| Component description for fuel system control unit | N118/3, N118/4 With engine 156 in model 204.0/2 |
GF47.40-P-2001MAW | |
| Liftgate control unit, component description | N121/1 With model 204.2/9 with code (890) EASY-PACK liftgate |
GF80.20-P-6082CE | |
| Component description for emergency call system control unit | N123/4 With model 204.0/3/9 with code (359) TELE AID emergency call system |
GF82.95-P-3212CEU | |
| Component description for media interface control unit | N125/1 With code (518) Media interface |
GF82.60-P-5000CE | |
| Component description for fully integrated transmission control unit | Y3/8n4 With transmission 722.9 |
GF27.60-P-5165AHW | |
| Overall network (GVN) function description table of contents | GF00.19-P-0999CE |
