Component description for Weight Sensing System (WSS) control unit - GF91.60-P-4069CEU
MODEL 204.0 up to 28.2.11 with CODE (U10) Front passenger seat with weight sensing as of model year 2009 /YoM 08
MODEL 204.3 with CODE (U10) Front passenger seat with weight sensing
MODEL 204.9 up to 31.5.11 with CODE (U10) Front passenger seat with weight sensing
Shown on model 204.0

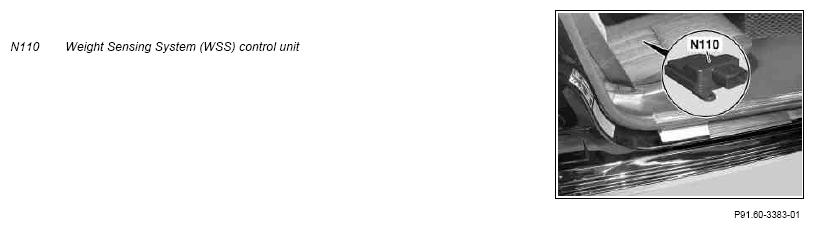

Location
The WSS control unit is located in the seat frame of the front passenger seat.
Task
The WSS control unit has the following tasks:
- Reading in of sensors, pickups and signals
- Evaluation of input factors
Reading in of sensors, pickups and signals
The input factors are read in via the following connection:
- Direct line
Direct line
The signals from the following components are read via a direct line:
- Belt tension sensor (B48/3)
- Seat occupied recognition pressure sensor (B48/4)
Evaluation of input factors
The WSS control unit determines the weight (person or child seat) on the front passenger seat. This is determined via a pressure measurement in a gel mat filled with silicone. The pressure measurement is performed by the seat occupied recognition pressure sensor. The tractive force at the belt is transmitted via the belt tension sensor to the WSS control unit.
The WSS control unit uses the pressure and belt tension to calculate the appropriate weight class and then sends it over the interior CAN (CAN B) to the front SAM control unit with fuse and relay module (N10/1). This then routes the information over the chassis CAN (CAN E) to the supplemental restraint system control unit (N2/10).
The power for the belt tension sensor and the seat occupied recognition pressure sensor is supplied via a direct line to the WSS control unit.
| Wiring diagram for Weight Sensing System (WSS) control unit | PE91.60-P-2102-97FAA |
